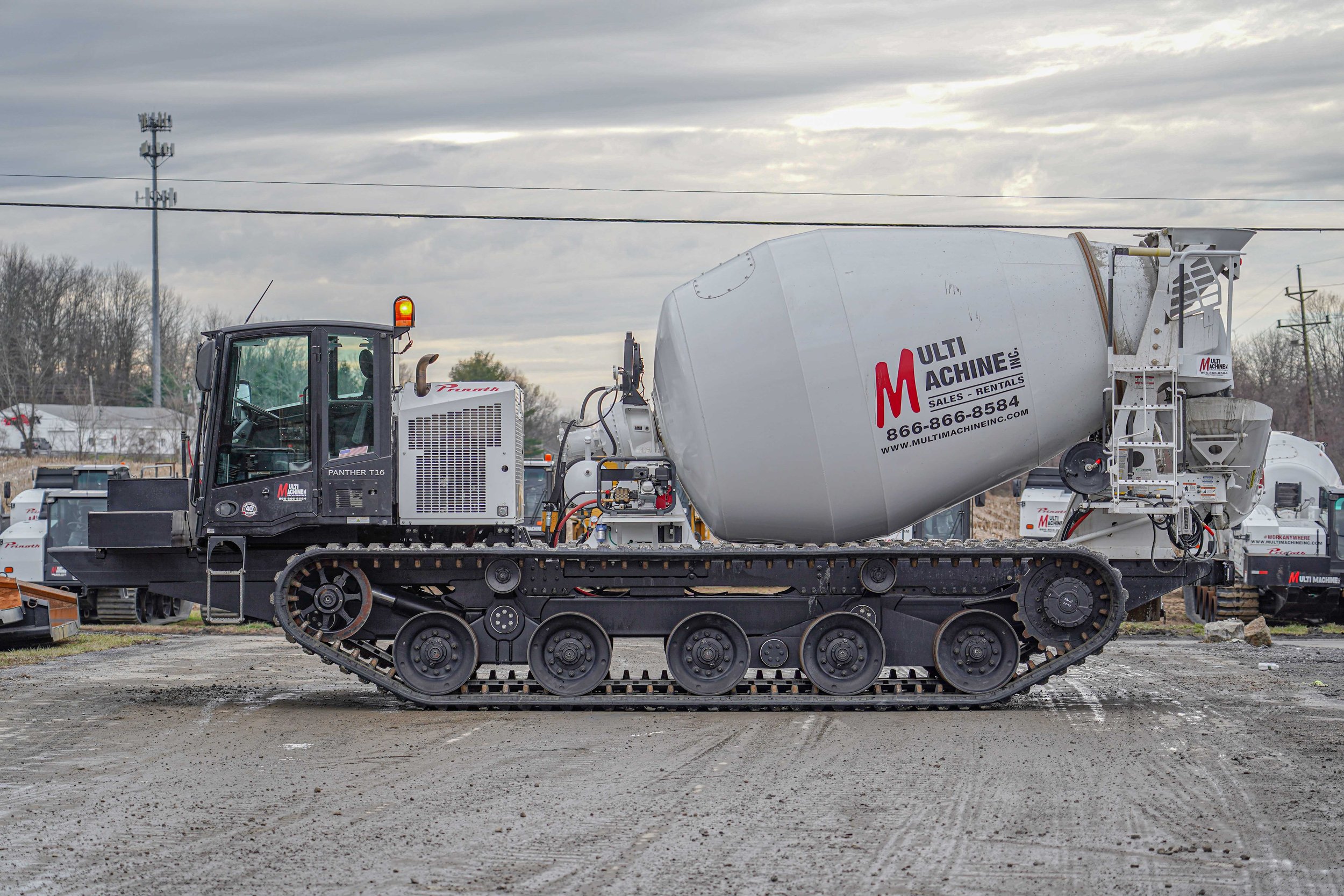

2020 Prinoth Panther T16 - Stock #5995D
This brand new Prinoth Panther T16 crawler carrier is equipped with a McNeilus concrete barrel mixer. The drum has capacity of 9 cubic yards and the machine is also equipped with a 150 gallon water tank.
Despite its size, this machine maintains low ground pressure and high gradeability, allowing it to operate in any type of enviroment. Its Caterpillar C7.1 engine also makes it the fastest vehicle in its class, enabling the job to be completed as efficiently as possible. Prinoth track dumps like this one also provide a great operator experience, with increased cab features and visibility through multiple cameras. They also feature better undercarriages, with bigger bogey wheels providing a smoother ride and less wear.
For any information regarding rental or sale of this machine, do not hesitate to contact Multi Machine
Hours: 565
Serial #: 935420602
-
Machine Weight: 43,640 lbs.
Payload: 33,500 lbs.
Maximum Speed: 8 mph
Ground Pressure (Empty): 3.11 psi
Ground Pressure (Loaded): 6.87 psi
Engine: Caterpillar C7.1 Acert
Horsepower @ 2200 rpm: 275 hp
Torque @ 1400 rpm: 927 lb-ft
Fuel Tank Capacity: 86 Gallons
Uphill Gradeability: 31°
Side Hill Gradeability: 21.8°
Length: 30’6”
Width: 9’9”
Height: 11’8”
Ground Clearance 20"
-
Drum Capacity: 9 cu yd.
Water Tank Capacity: 150 gallons
Discharge Opening: 42”
Concrete density of: 4,070 lb/yd³
Weight: 7,550lb
