IHI IC50 Straw Blower

$0.00

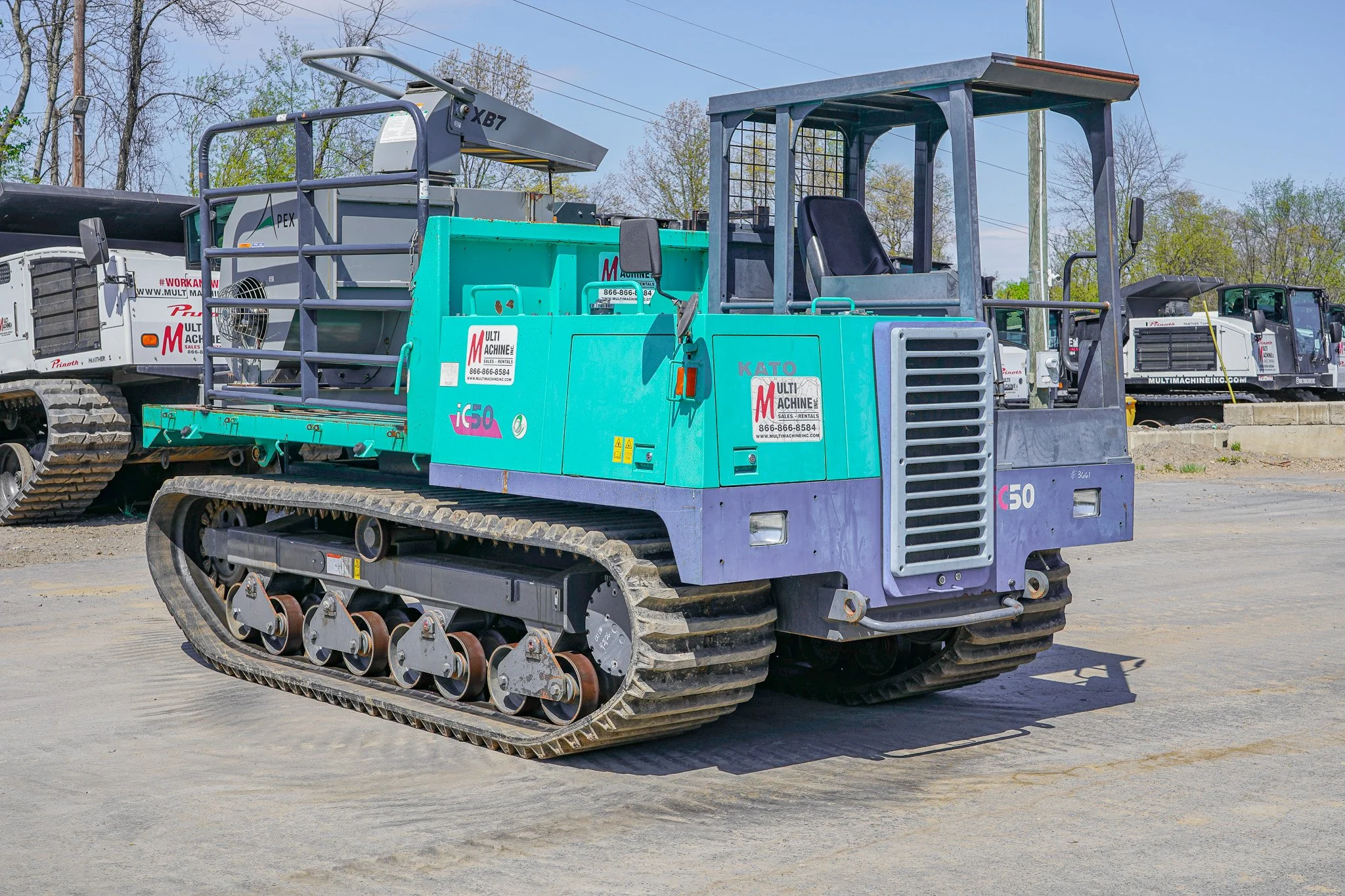

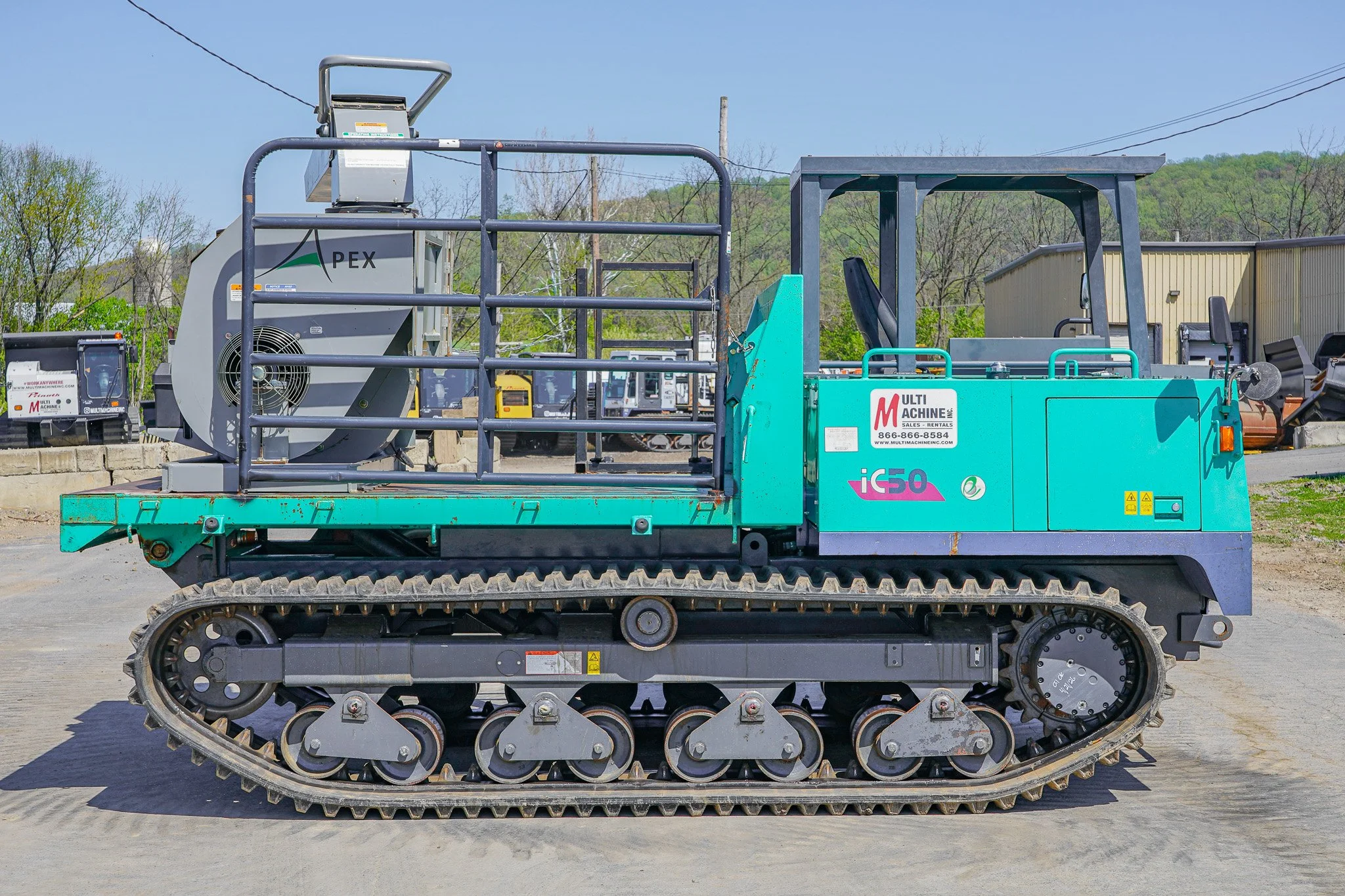

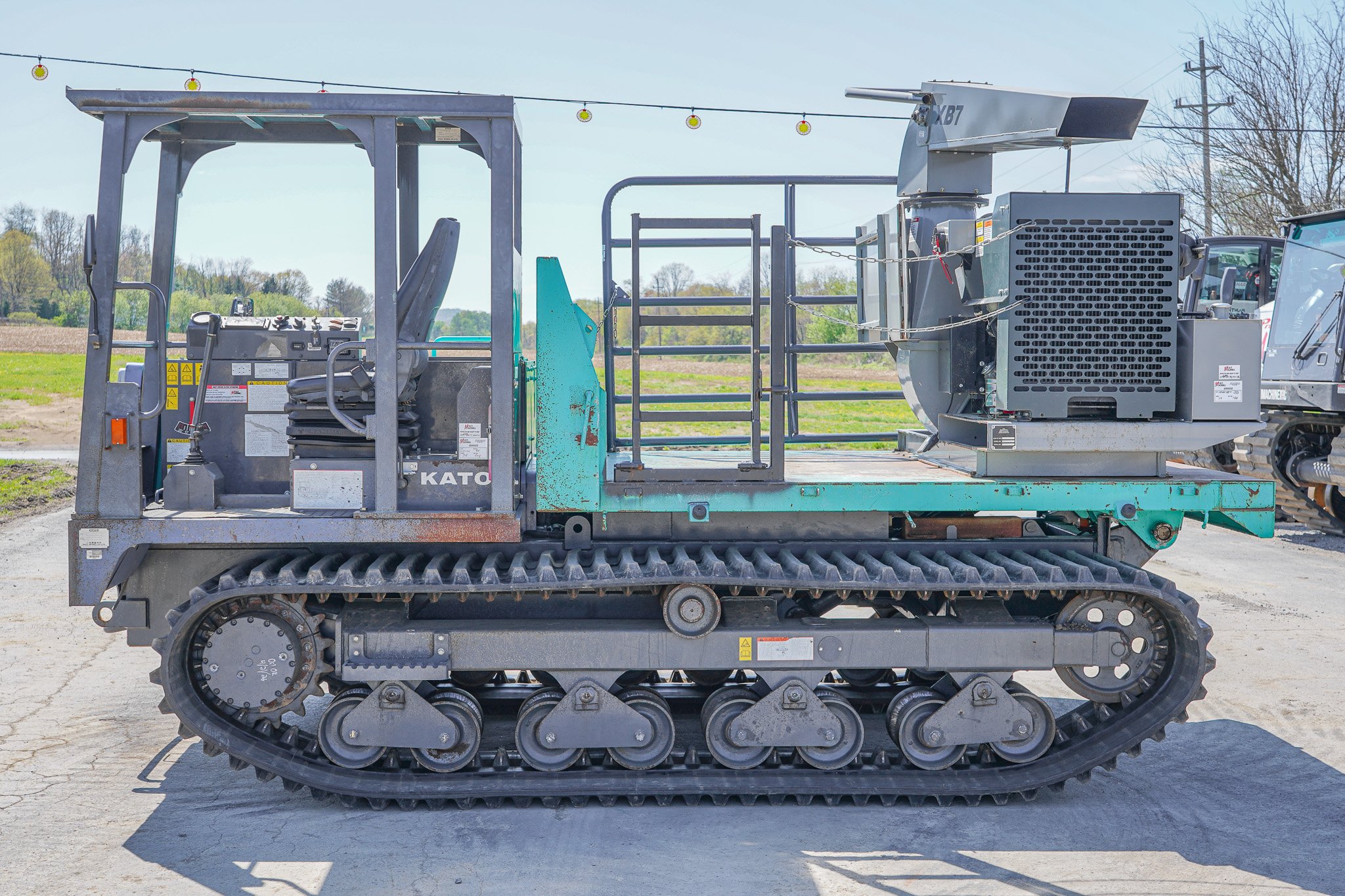

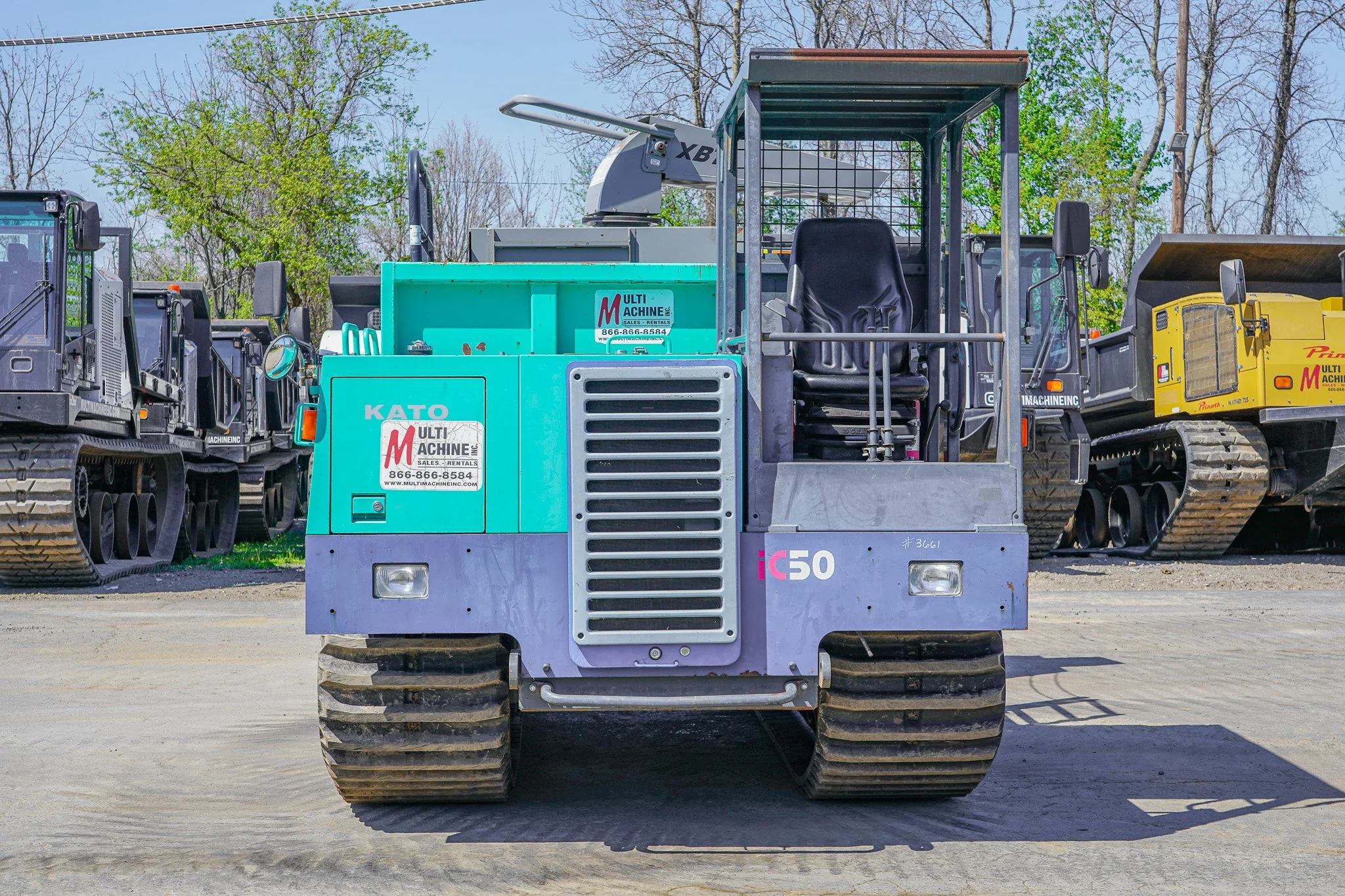

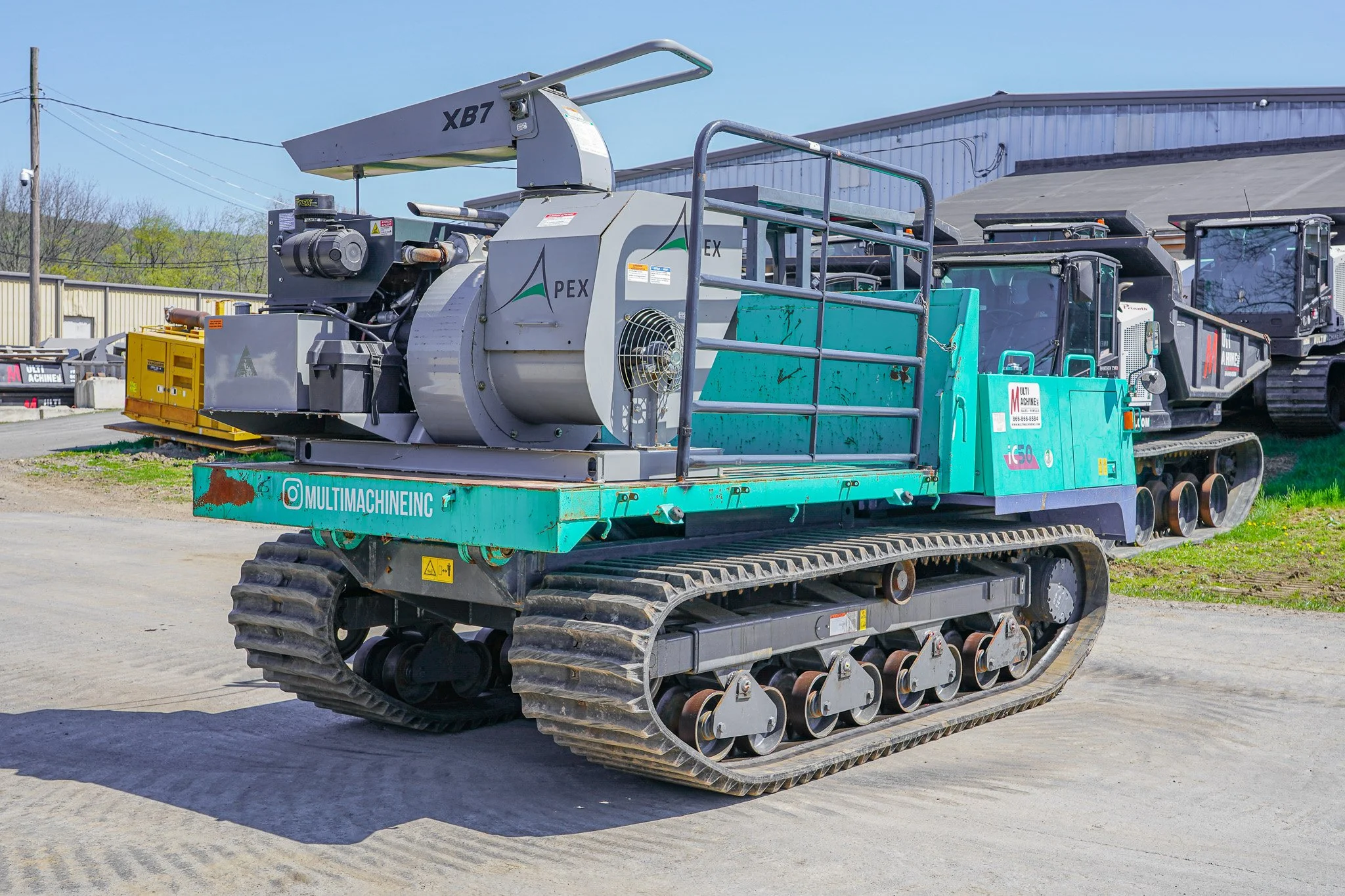

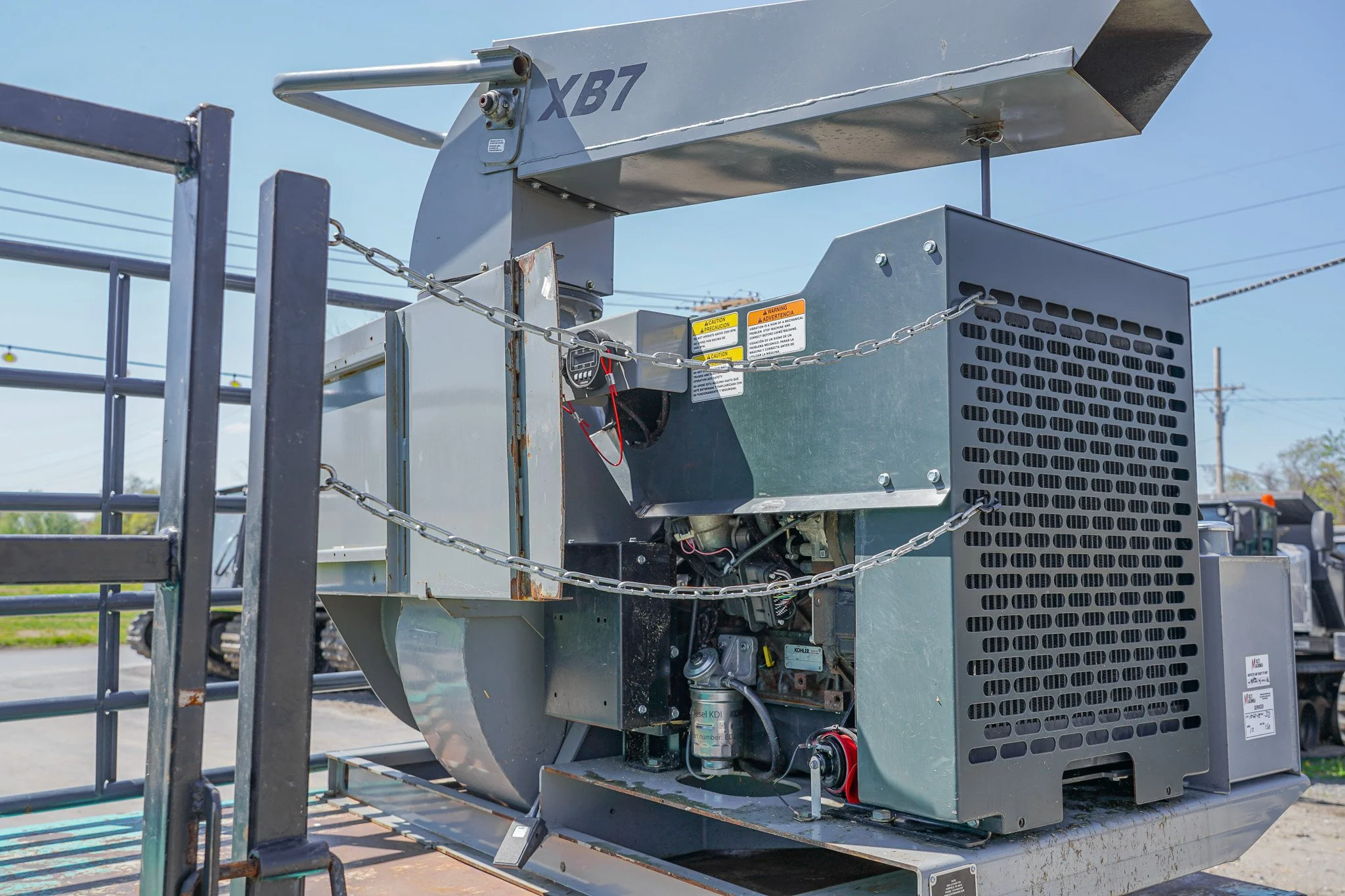

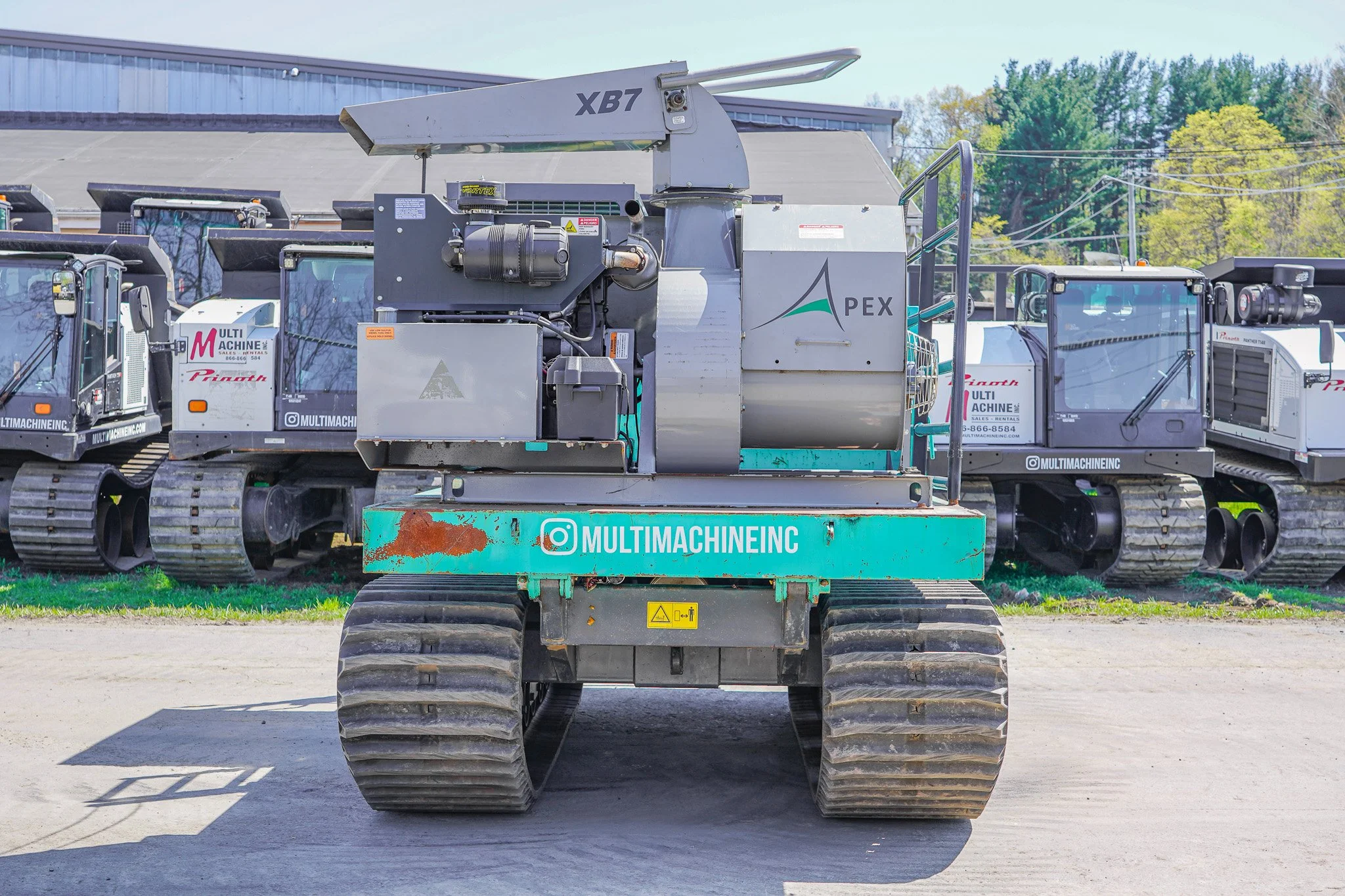

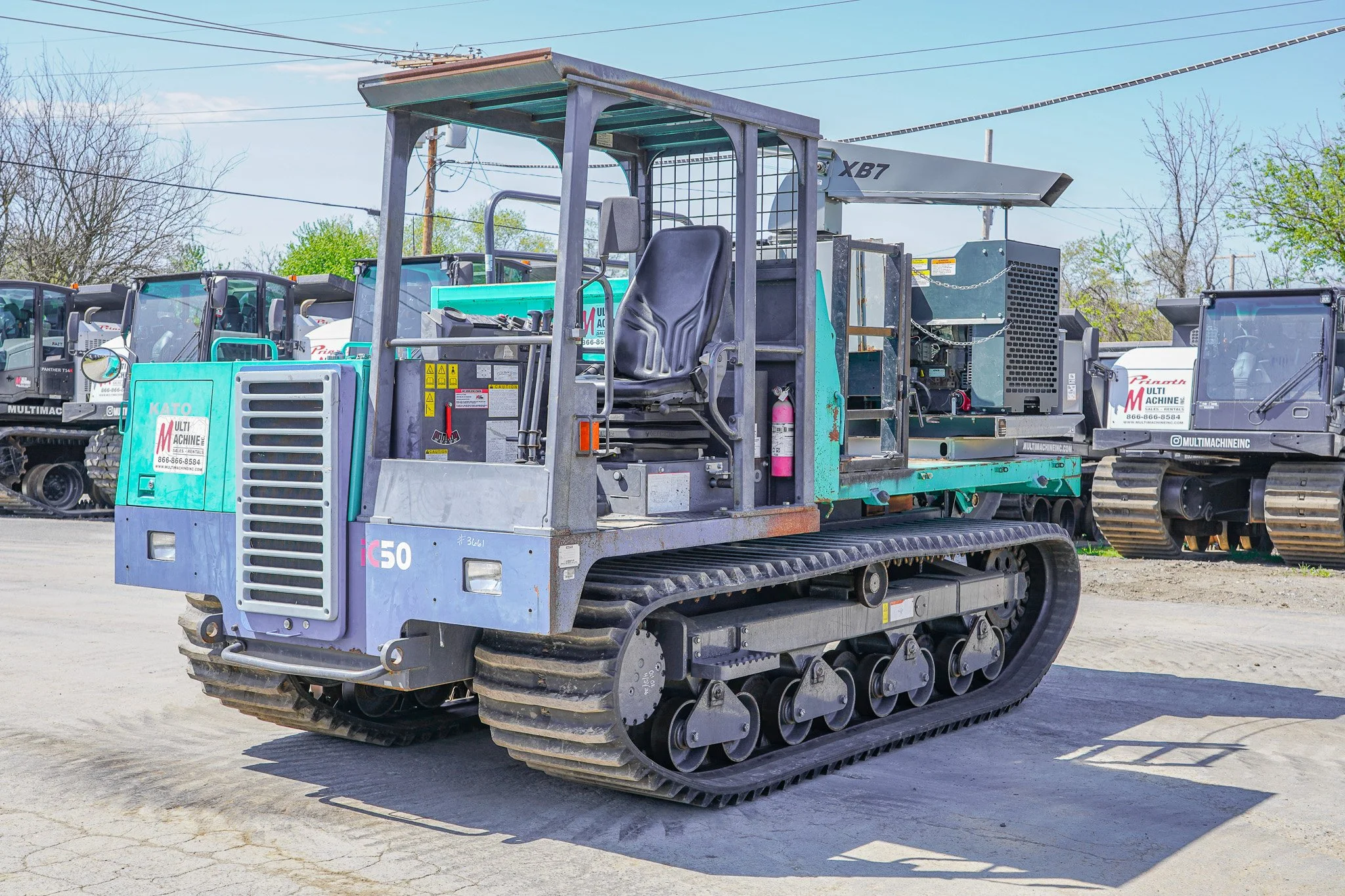

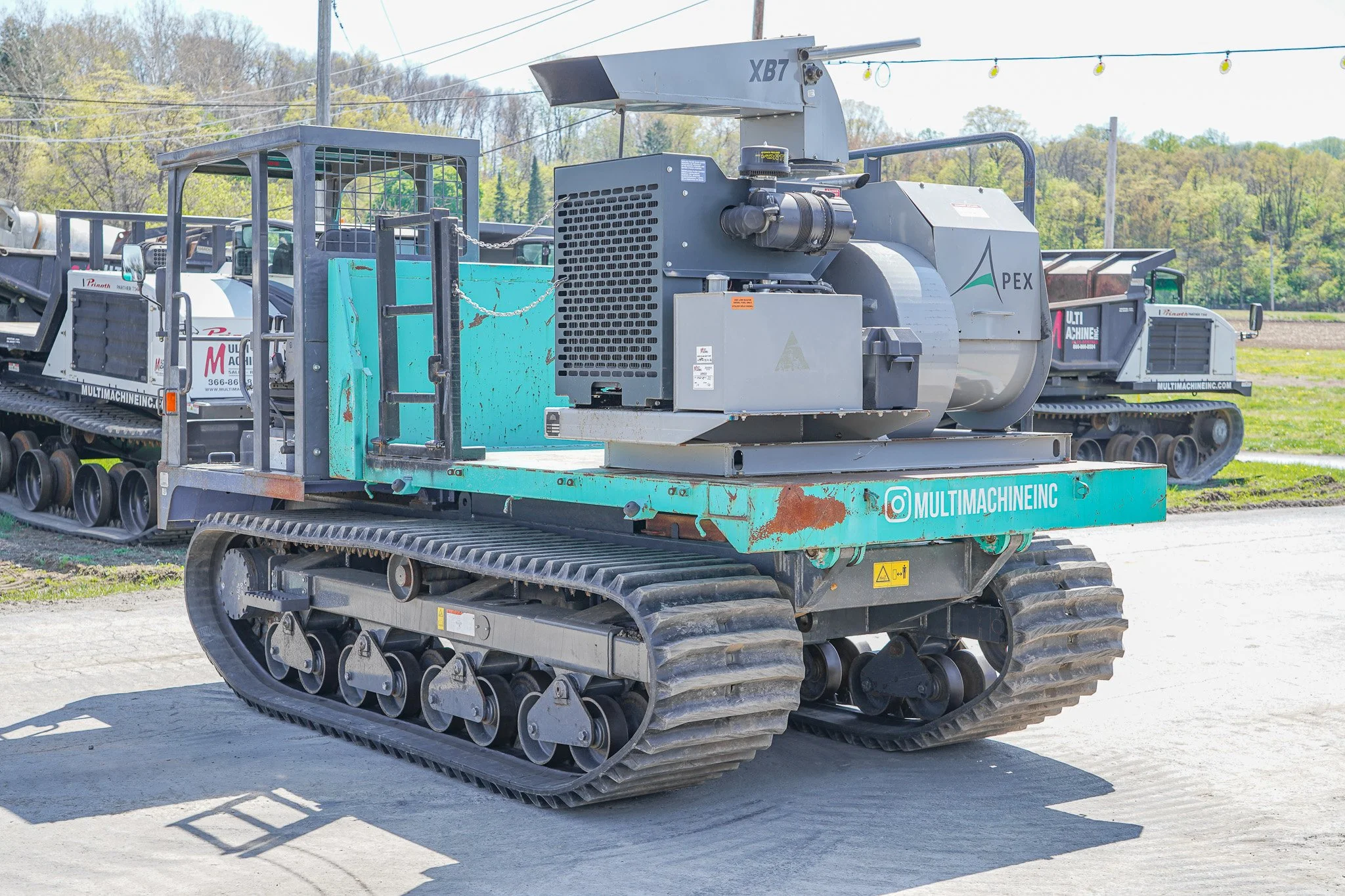

The IHI IC50 can be modified for any job needs, allowing this machine to be ready to work in any conditions, anytime, anywhere! This crawler carrier is outfitted with an Apex XB7T straw blower along with bed rails. With the capability of shredding and blowing 7 tons per hour and a range of 65 feet, this straw blower ensures you will complete the job in the most efficient way possible. For more information about purchasing or renting this machine, do not hesitate to contact Multi Machine.

The IHI IC50 can be modified for any job needs, allowing this machine to be ready to work in any conditions, anytime, anywhere! This crawler carrier is outfitted with an Apex XB7T straw blower along with bed rails. With the capability of shredding and blowing 7 tons per hour and a range of 65 feet, this straw blower ensures you will complete the job in the most efficient way possible. For more information about purchasing or renting this machine, do not hesitate to contact Multi Machine.

  • Machine Weight: 13,995 lbs.

    Max Payload: 8,820 lbs.

    Engine: Isuzu 4JJ1X

    Horsepower @ 2,200 RPM: 120 hp

    Fuel Capacity: 31.7 Gallons

    Top Speed: 7.5 MPH

    Ground Pressure (Machine Only): 3.13 psi

    Ground Pressure (Full): 5.16 psi

    Ground Clearance: 18.7"

    Length: 14’ 8”

    Width: 7’6”

    Height: 8’ 4”

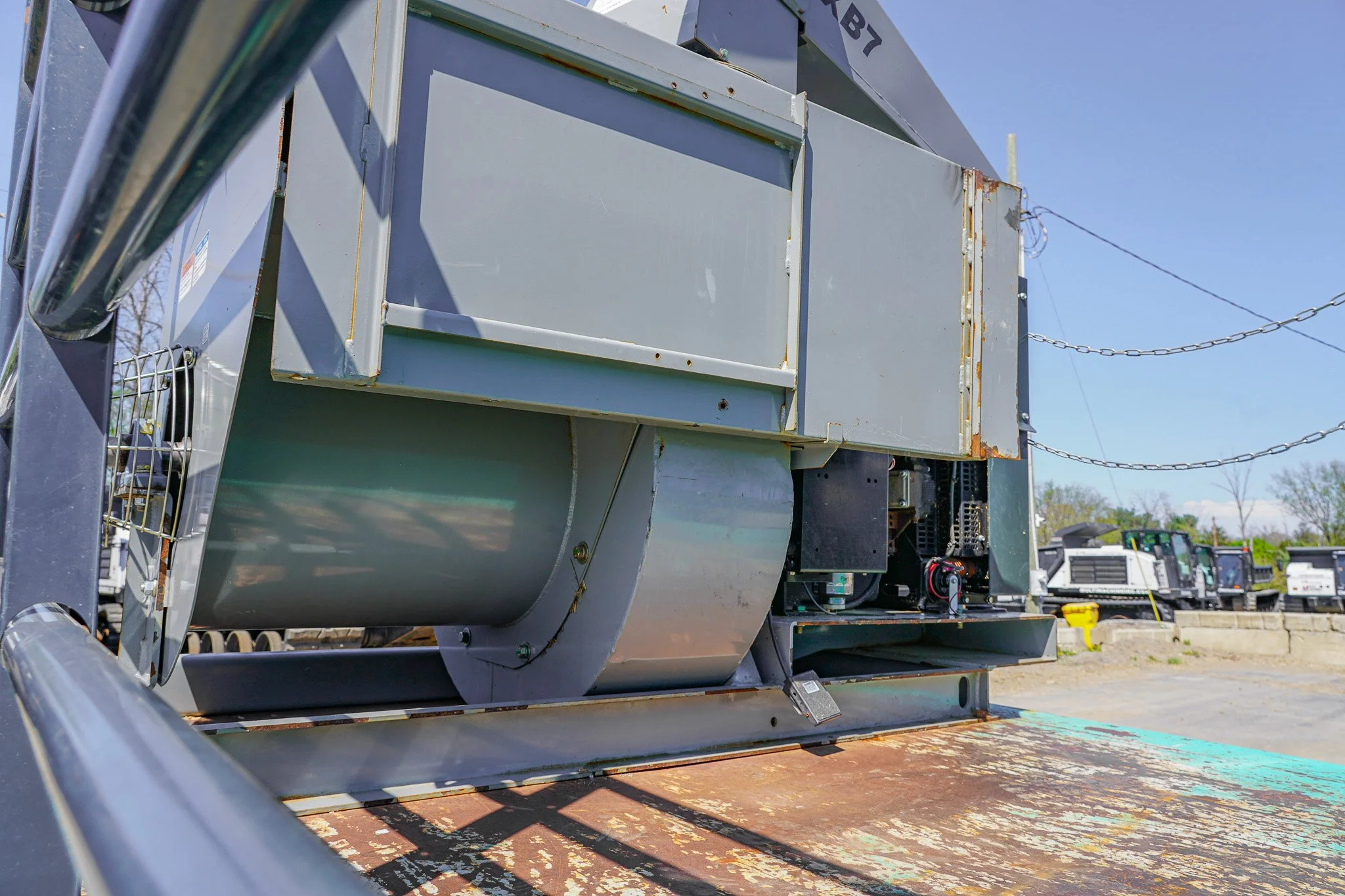

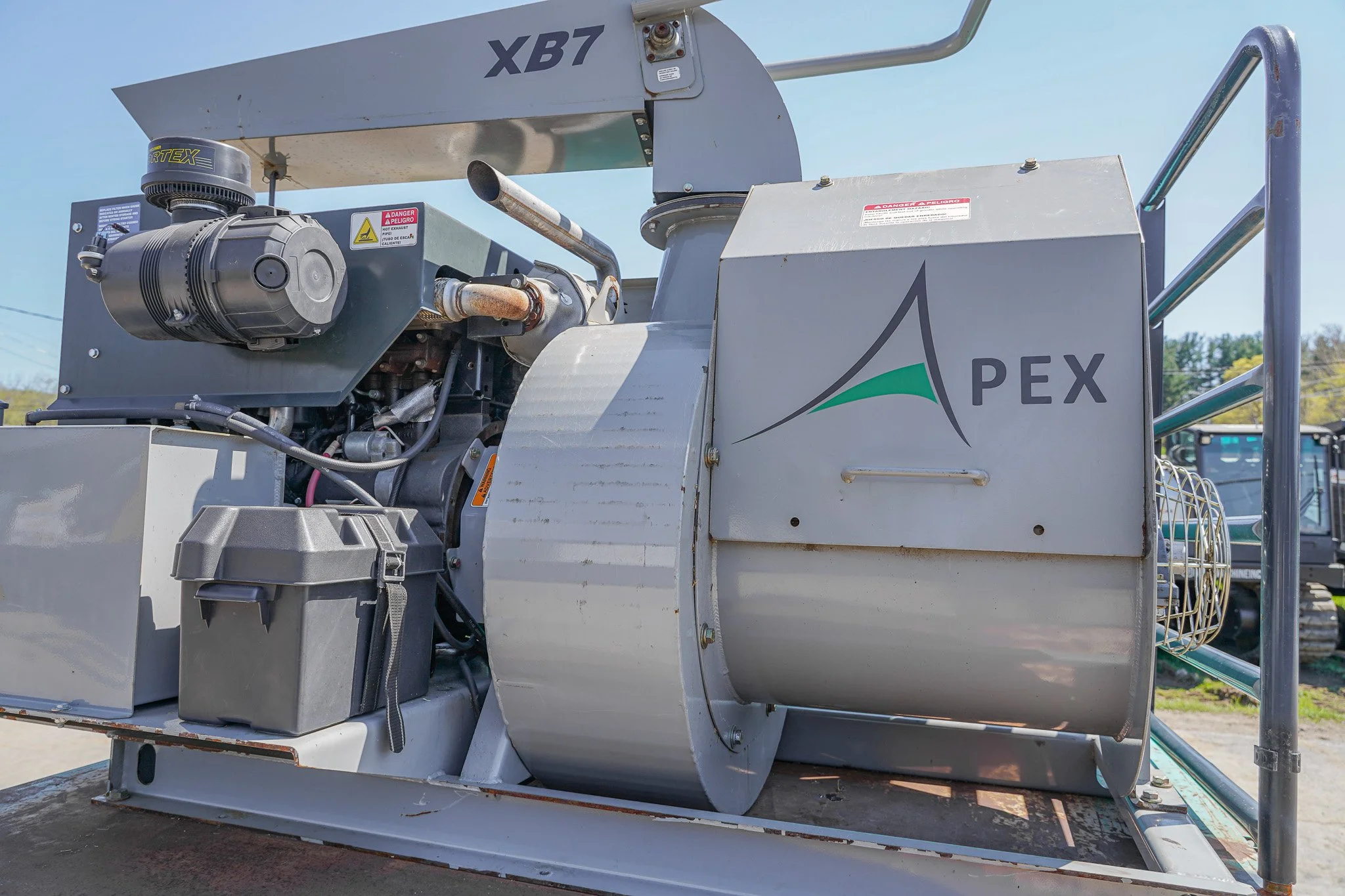

  • Engine: 49 HP Tier V Kohler Diesel

    Capacity: Up to 7 tons per hour

    Fuel Tank Capacity: 12-gallon (45.4 liter)

    Drive: Direct flexible insert drive coupling features easy access replacement bushings

    Flail: Three fully adjustable full hardened chain flail stations

    Blower: 22 5/8” OD, six-blade reinforced material handling type wheel, dynamically and statically balanced

    Discharge Head: UHMW nylon bearing mounted, counterbalanced, 360-degree horizontal rotation, 60-degree vertical articulation, urethane abrasion resistant rolling boom seals and stainless-steel side wipers

    Range: Up to 65 ft (18 m) in still air

    Weight: 1,200 lbs. (544 kg)

    Length: 79” (2.1m)

    Width: 44” (1.12 m)

    Height: 64 1⁄2” (1.7 m)
