2008 IHI IC70-2 - Stock #6249D
The IHI IC70 can be modified for any job needs, allowing this machine to be ready to work in any conditions, anytime, anywhere! Rubber tracked dumpers like this allow you to go anywhere without much effort and still maintain fairly low ground pressure.

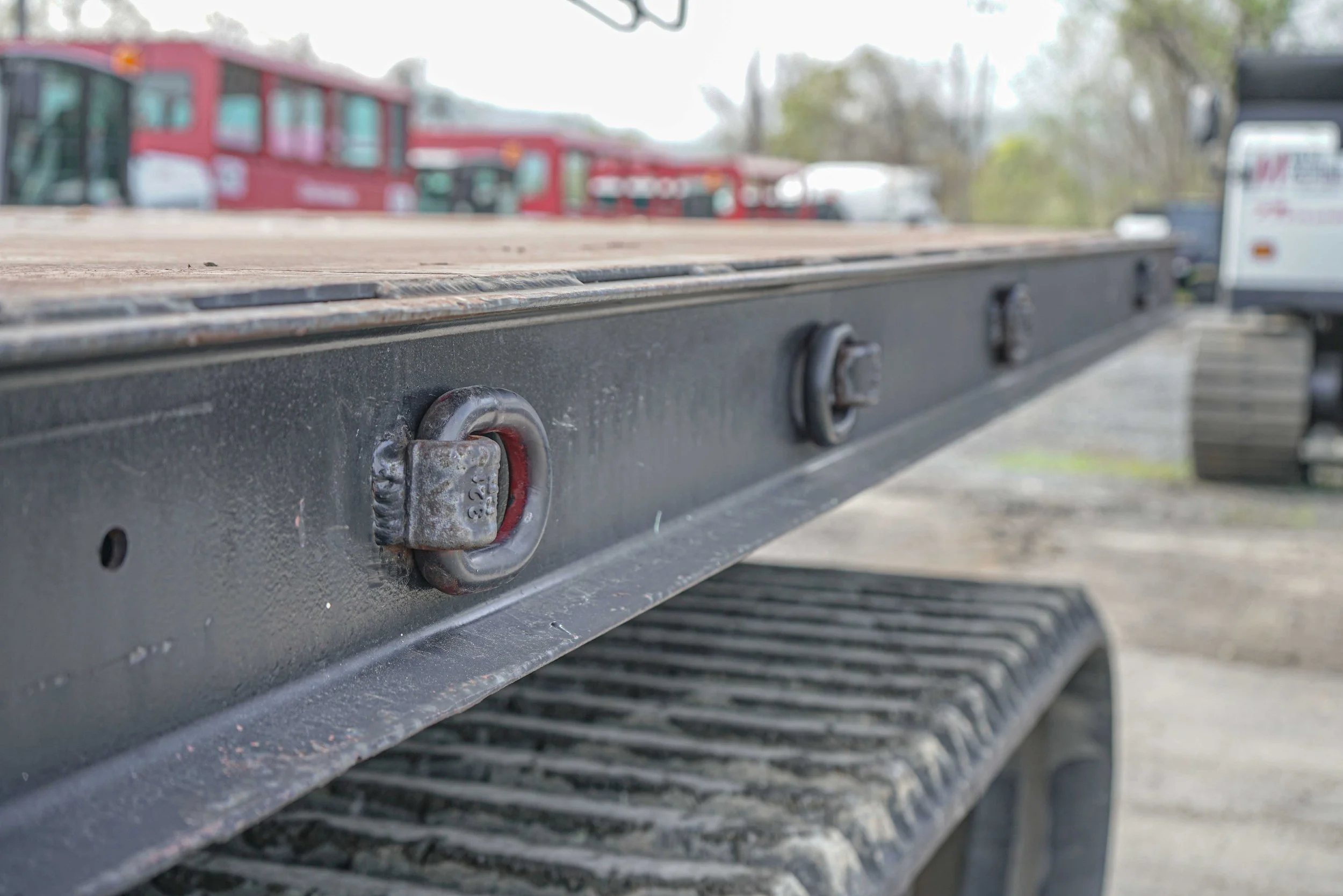

We outfit our crawler carriers with everything, from concrete mixers to hydro vacuums to custom applications. This machine is outfitted with a flatbed with a 7 ton capacity and a hydraulic crane with 6000 lb. capacity. If you have any questions regarding rental, purchase, or anything else regarding this machine, do not hesitate to Contact Us.
Hours: 5080
Serial #: CA001111
-
Machine Weight: 20,680 lbs
Max Payload: 14,300 lbs
Engine: Mitsubishi 6D16TLI
Horsepower @ 2,200 RPM: 224 hp
Fuel Capacity: 52 Gallons
Top Speed: 7.5 MPH
Ground Pressure (Empty): 2.40 psi
Ground Pressure (Loaded): 4.10 psi
Gradeability: 30°
Side Stability: 50°
Ground Clearance: 19.5"
Length: 20’5”
Width: 8’6”
Height: 10’5”
Weight: 22,000 lbs.
-
Max Lifting Capacity: 6,000 lbs.
Boom Length: 10’7”
Max Horizontal Reach: 20’8”
Max Vertical Reach: 22’
Max. Winch Line Pull Speed: 60 ft/min
Boom Elevation: -5° to +80°
Crane Rating: 380,00 ft-lbs.
