Machine Weight: 22,708 lbs
Max Payload: 14,300 lbs
Engine: Isuzu 6HK1DH1
Horsepower @ 2,200 RPM: 228 hp
Fuel Capacity: 53 Gallons
Top Speed: 7.2 MPH
Ground Pressure (Machine Only): 3.50 psi
Ground Pressure (Full): 5.7 psi
Ground Clearance: 19"
Length: 17’9”
Width: 8’6”
Height: 9’3”
-
550-gallon spoils tank
1200 CFM 412 RAM positive displacement blower @ 16" hg, driven by hydraulic drive system
Pressurized Tank Offload, Pressure Filter Backflush
Reverse Flow Suction Hose Blow-Out
2x100 gallon poly freshwater tanks
6.0 gpm @ 4000psi water pump
Premium silencer package
Hydraulic tank hoist
Hydraulic full opening rear door standard with power door lock
Sight-glass for level detection

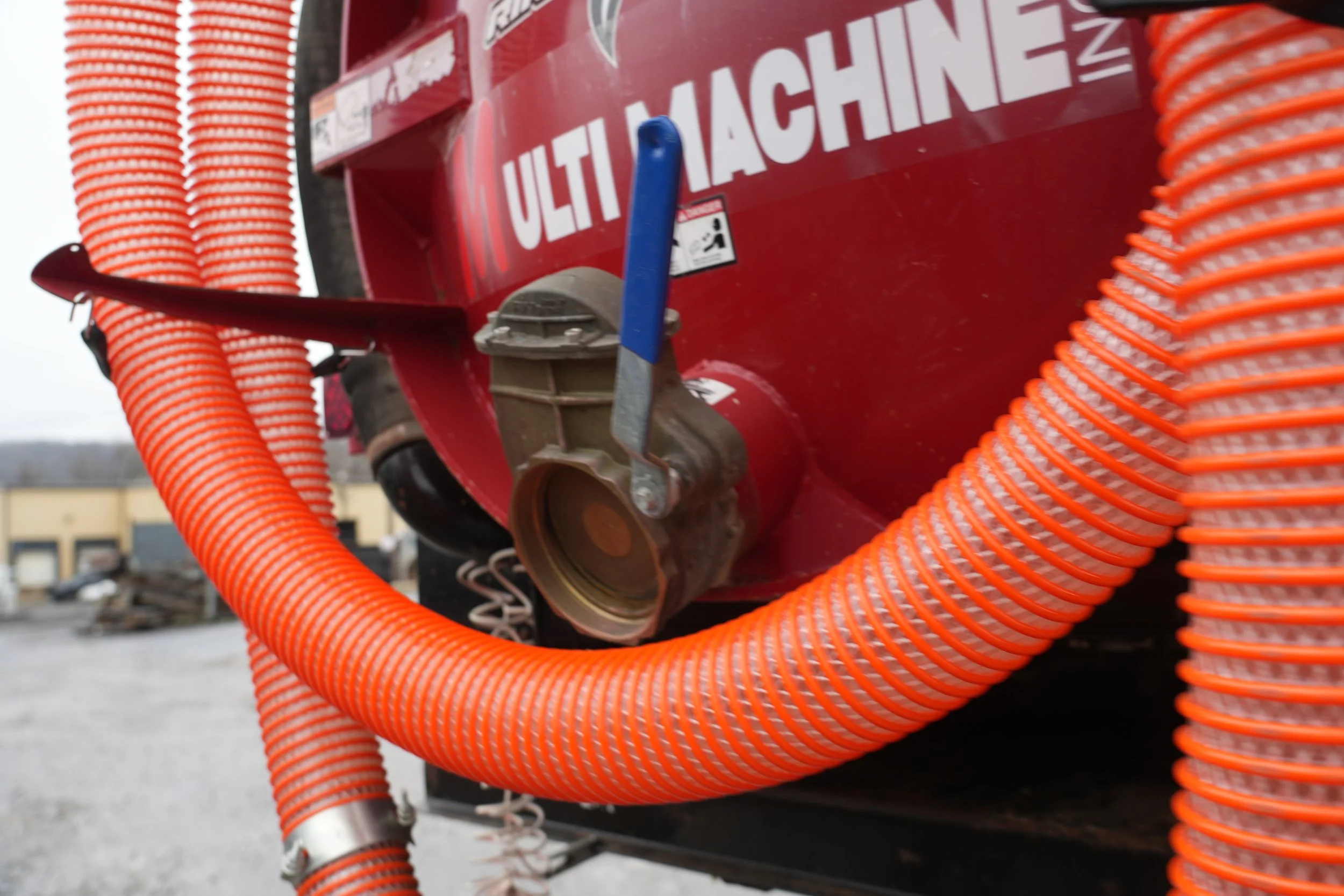

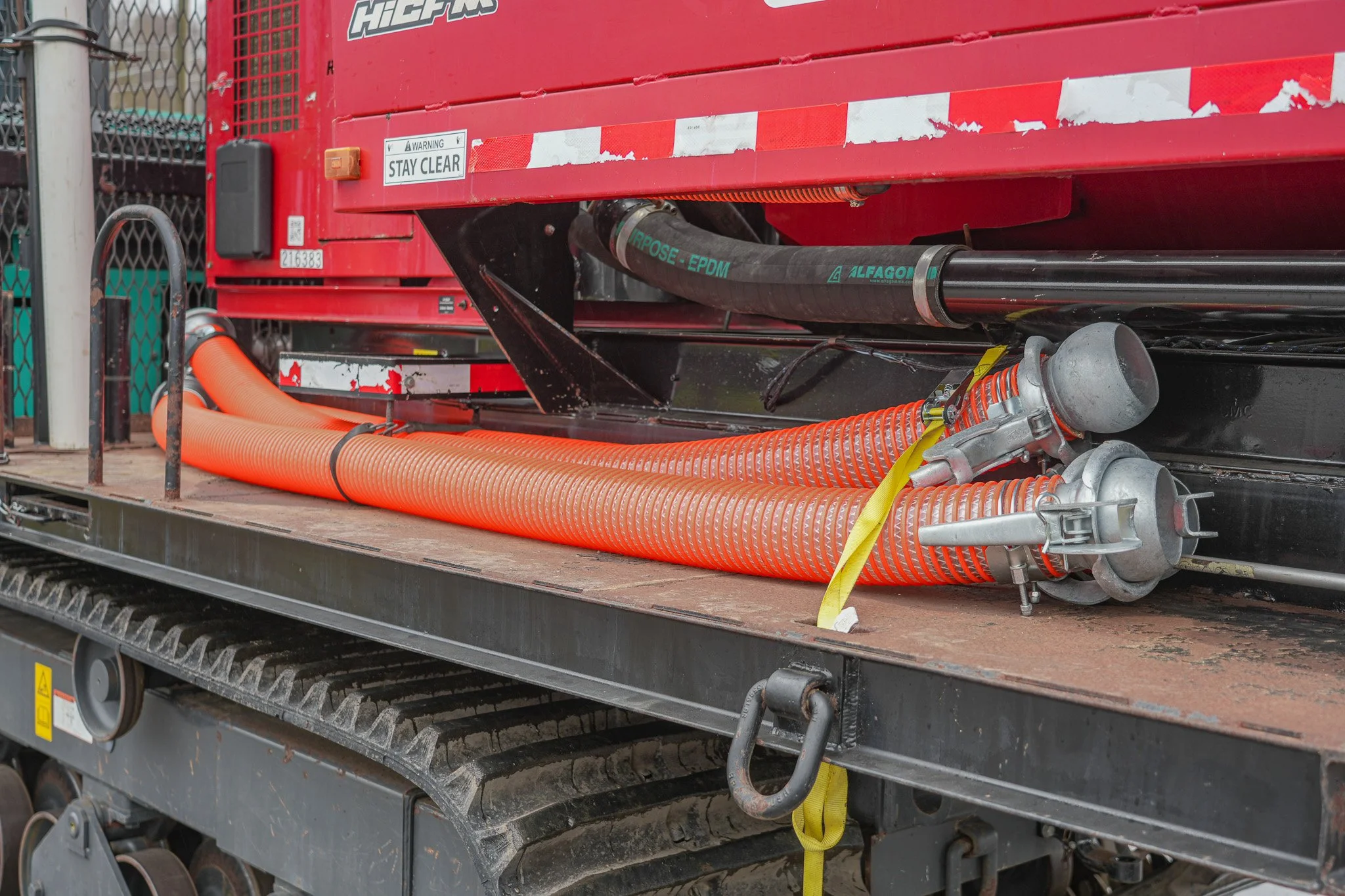

4" suction hose
50' x 3/8" high pressure hose reel with wash gun
5' potholing lance
LED work lights
Manual boom (strong arm) with 10’ reach
Removable Water Heater with Setup - 200,000 BTU - 60°F over ambient @ 6 gpm; fuel burn rate of 1.8 g/hr,
Spoils Tank Double Wash in-tank washing system
