Max Speed 6.2 mph
Ground Pressure (Empty) 2.94 psi
Ground Pressure (Loaded) 5.91 psi
Ground Clearance 21”
Shipping Weight 27,500 lbs.
Capacity 25,000 lbs.

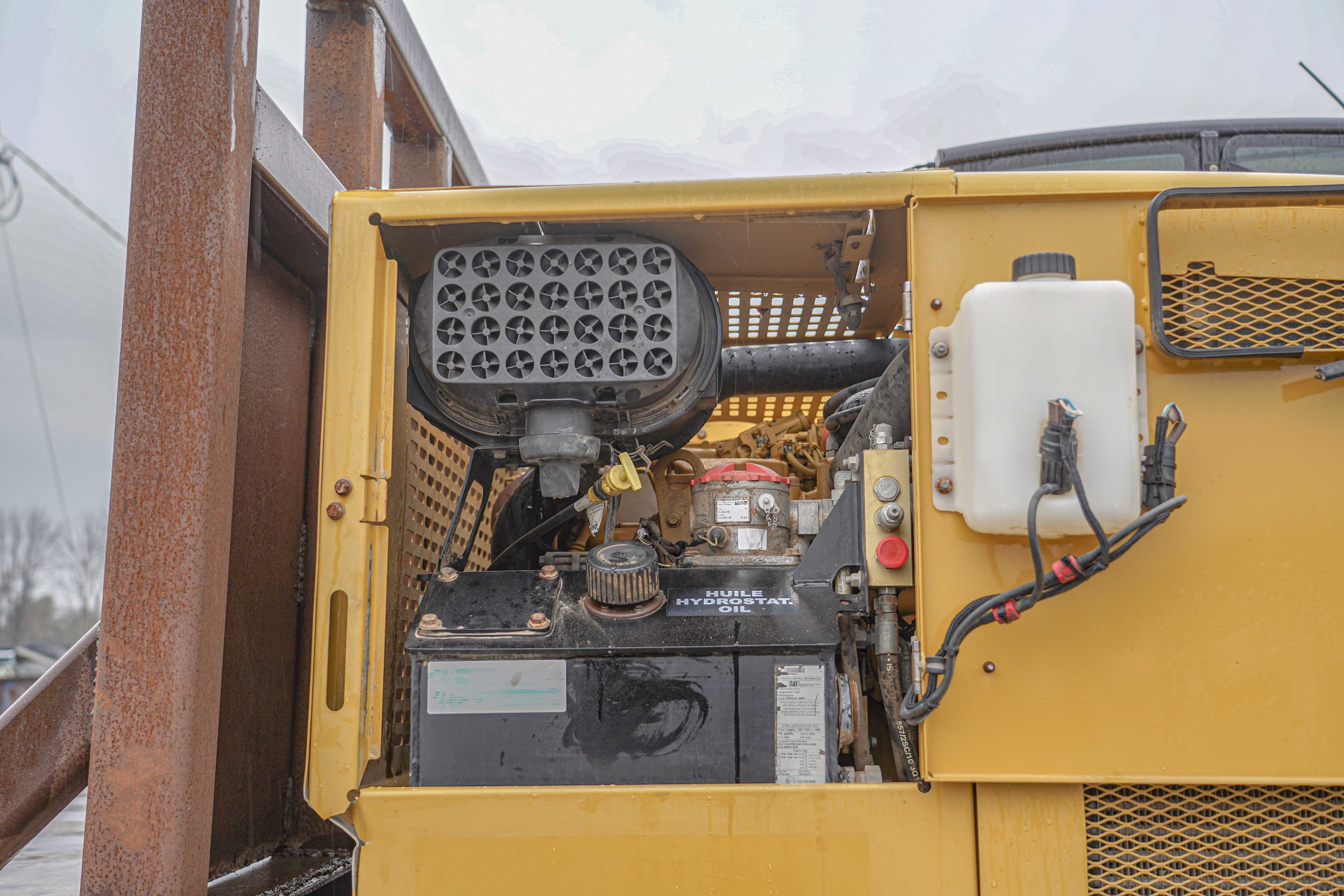

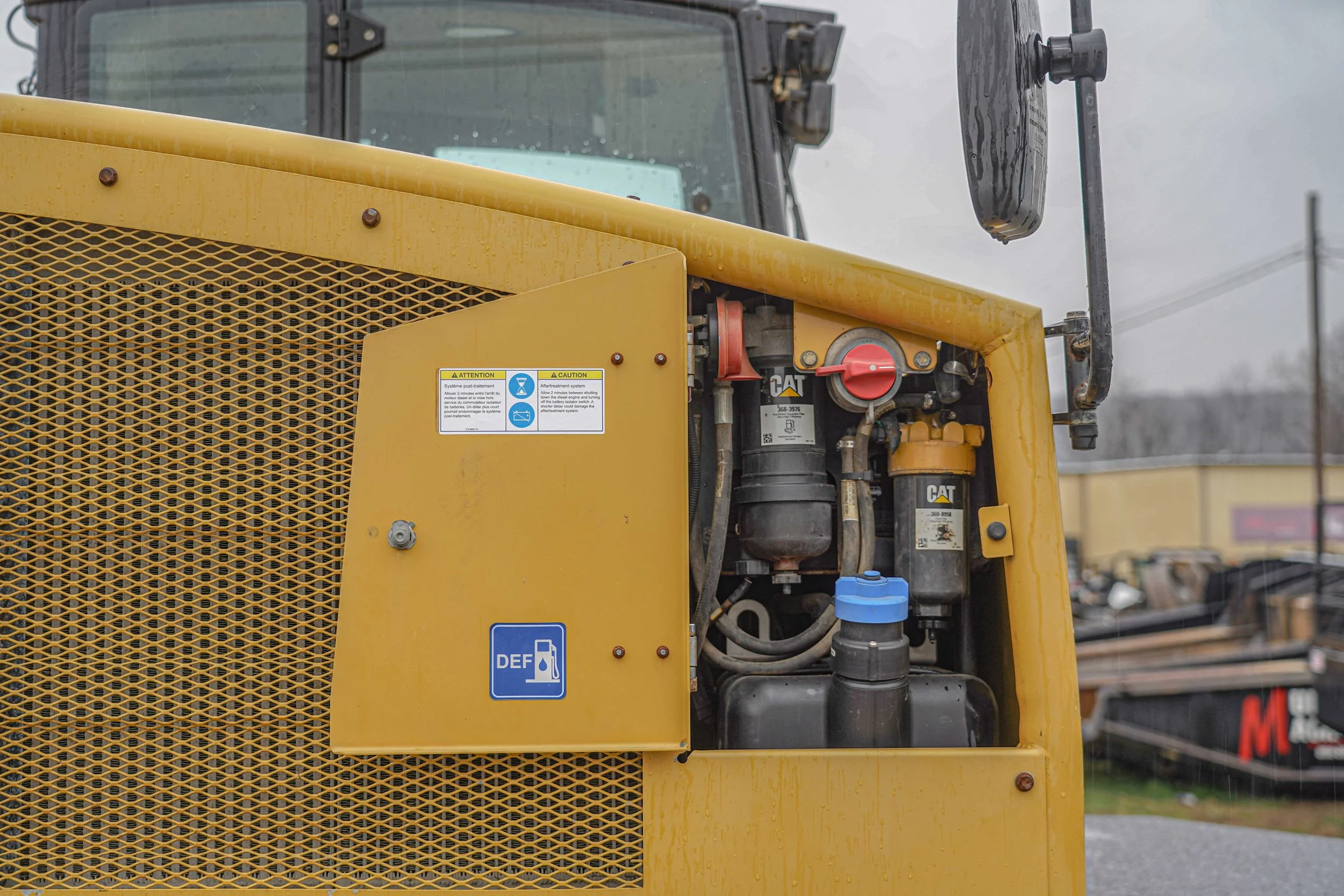

Engine Caterpillar C7.1 Acert (Tier 4)
Horsepower @ 2,200 RPM 250 HP
Torque @ 1,400 RPM 895.4 lb-ft

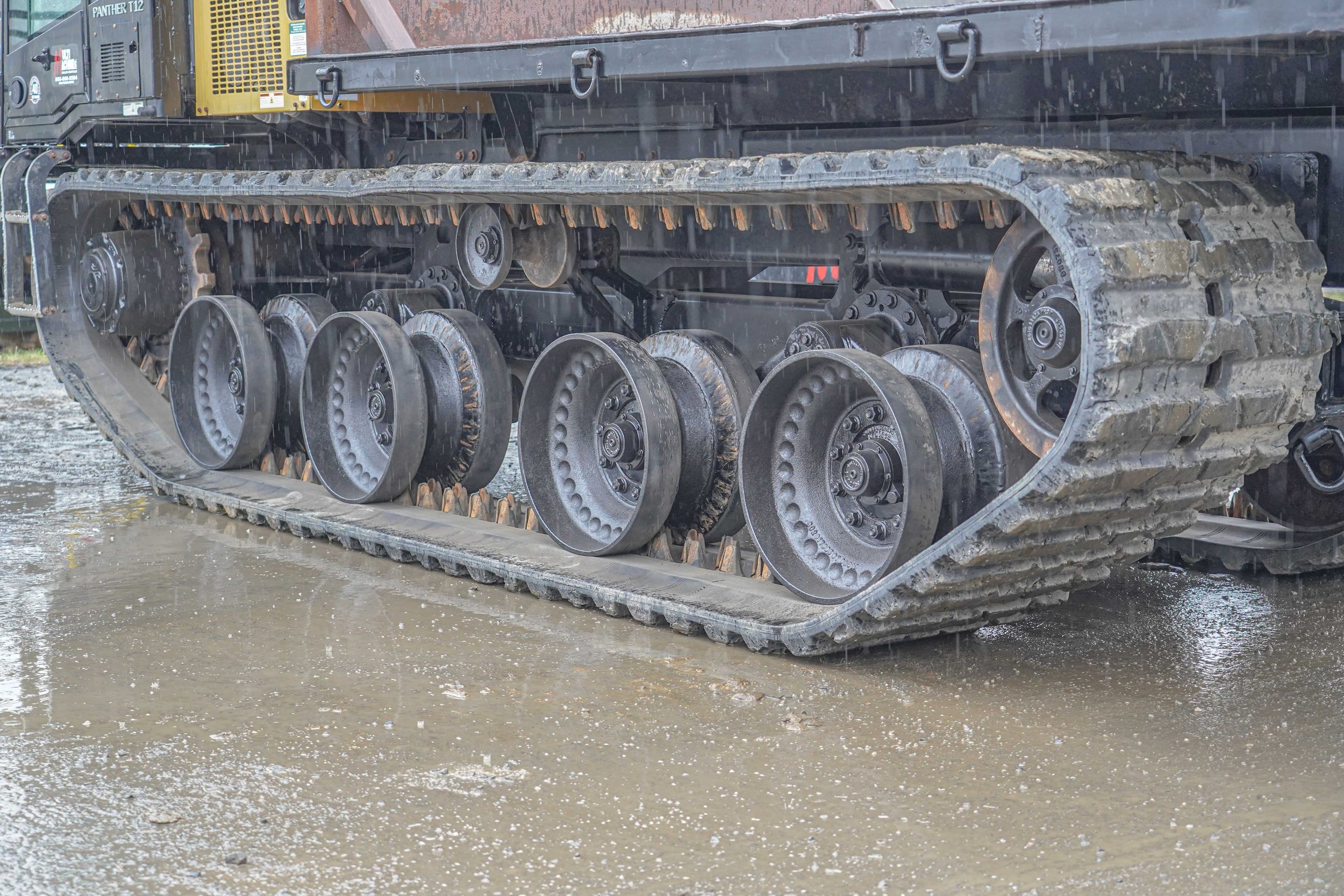

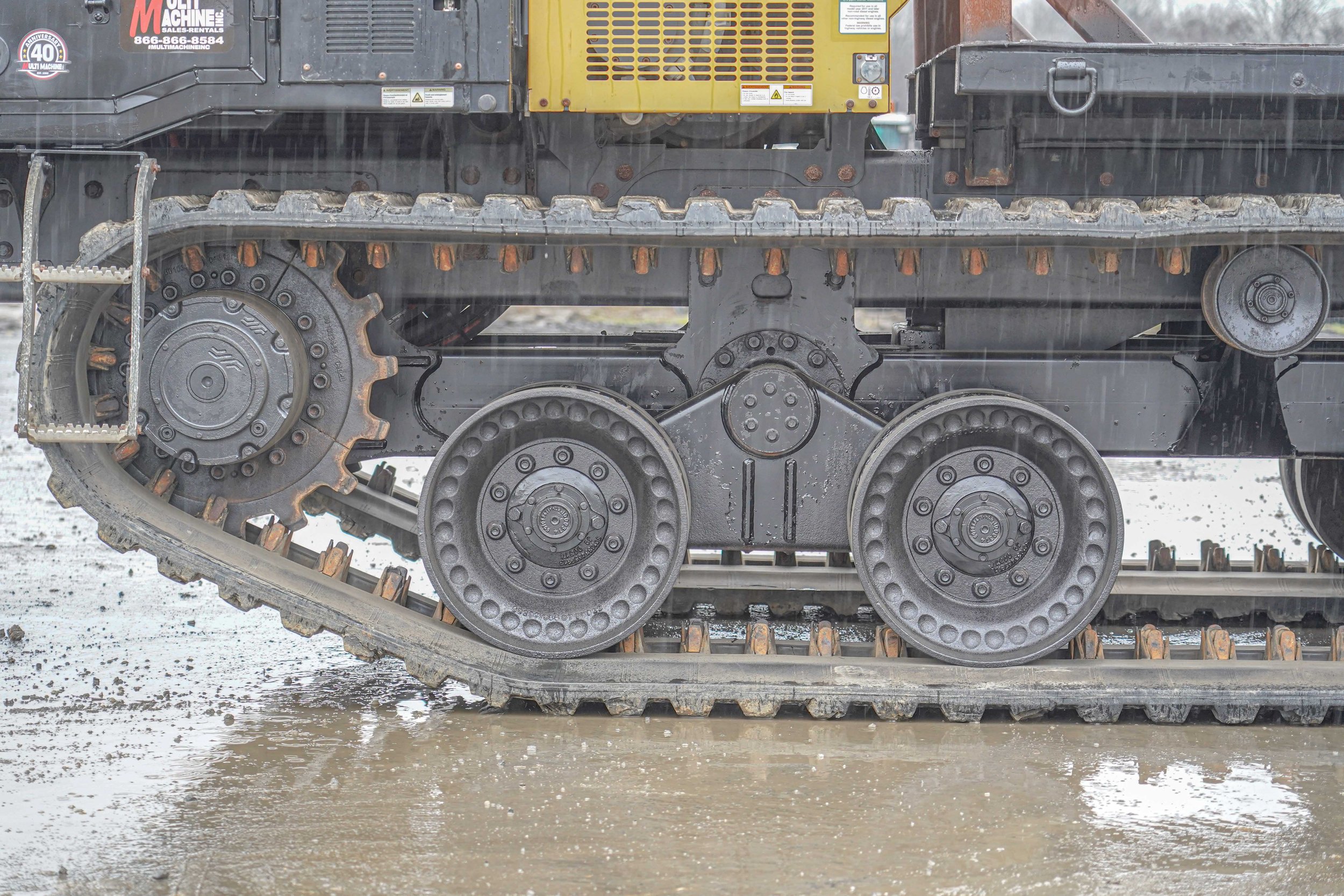

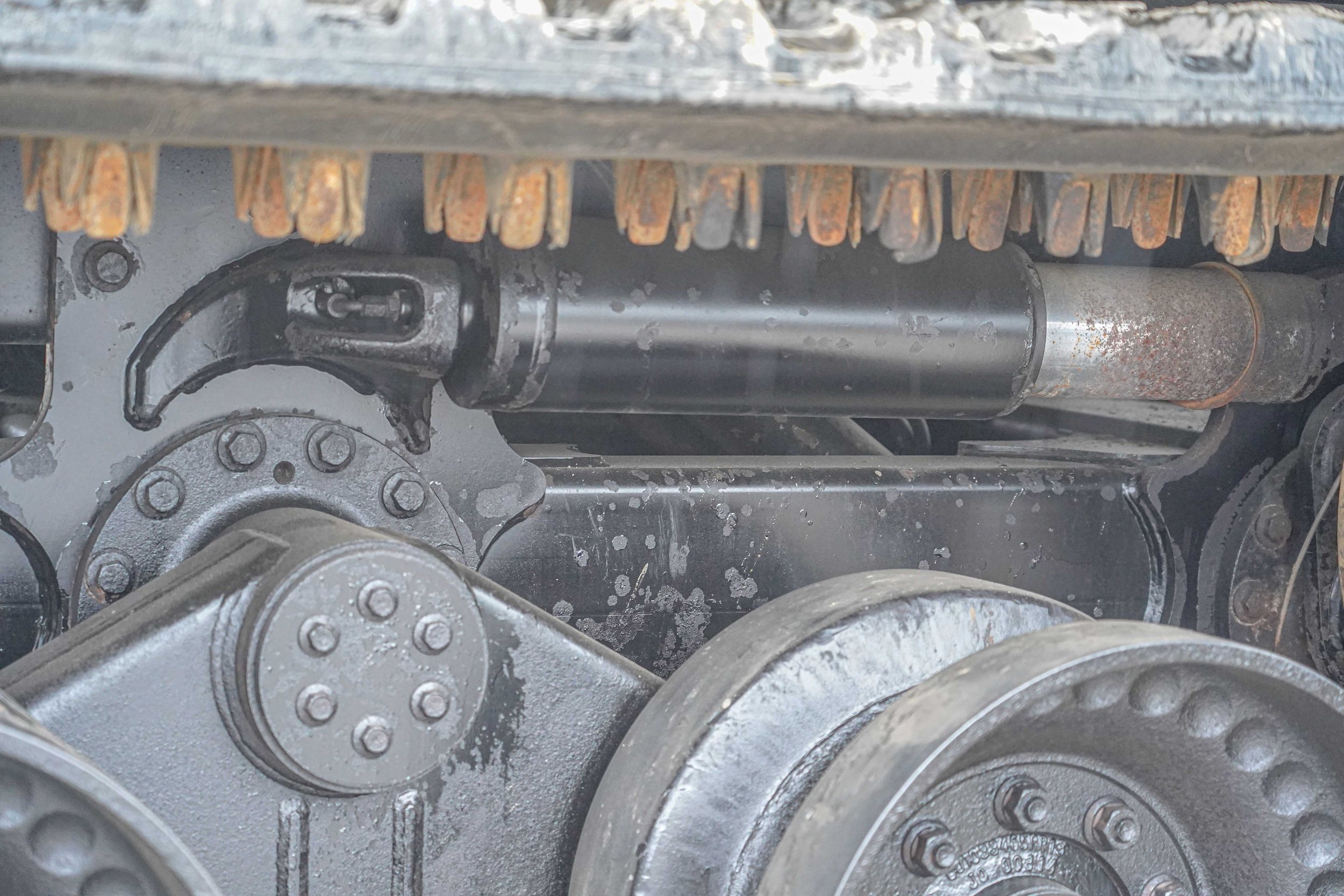

Tracks 29.4"
Length 19’
Width 8’5”
Height 9’5”
-
Deck Length: 173.5”
Deck Width: 100”
Headboard Height: 53.5”
Deck Thickness: 4.25”
Deck to Ground: 58”
