2022 Prinoth Panther T14R - Stock #6315D

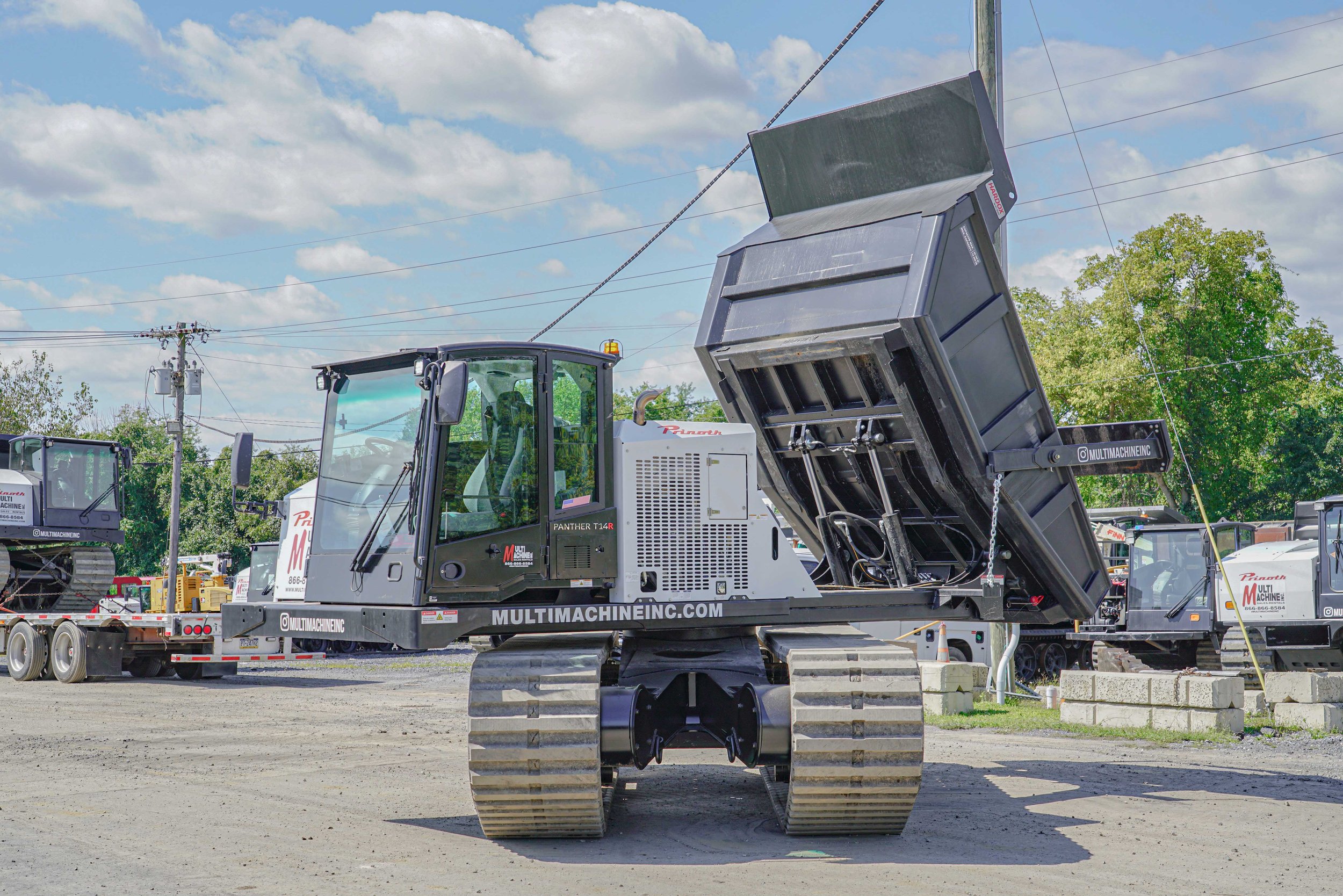

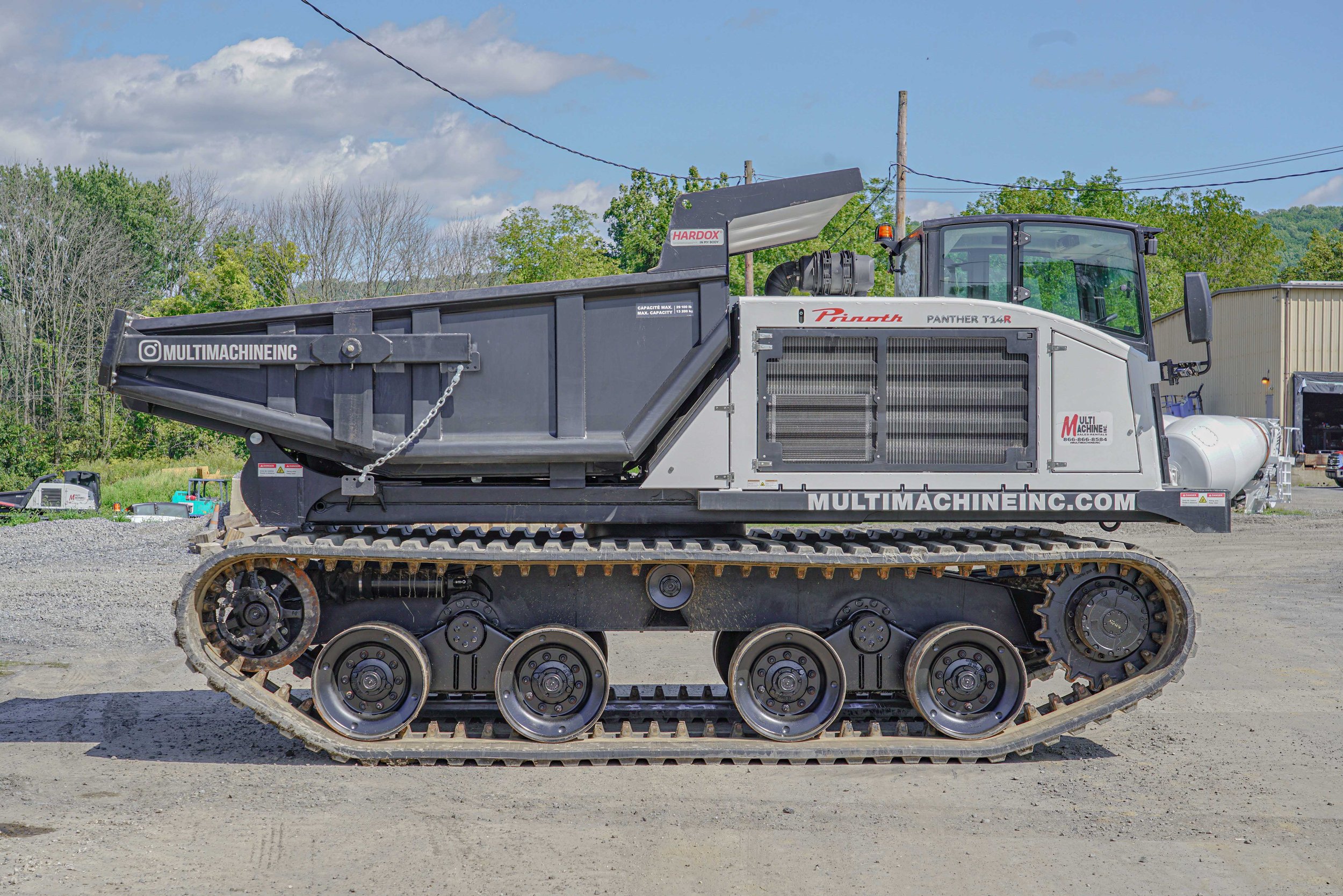

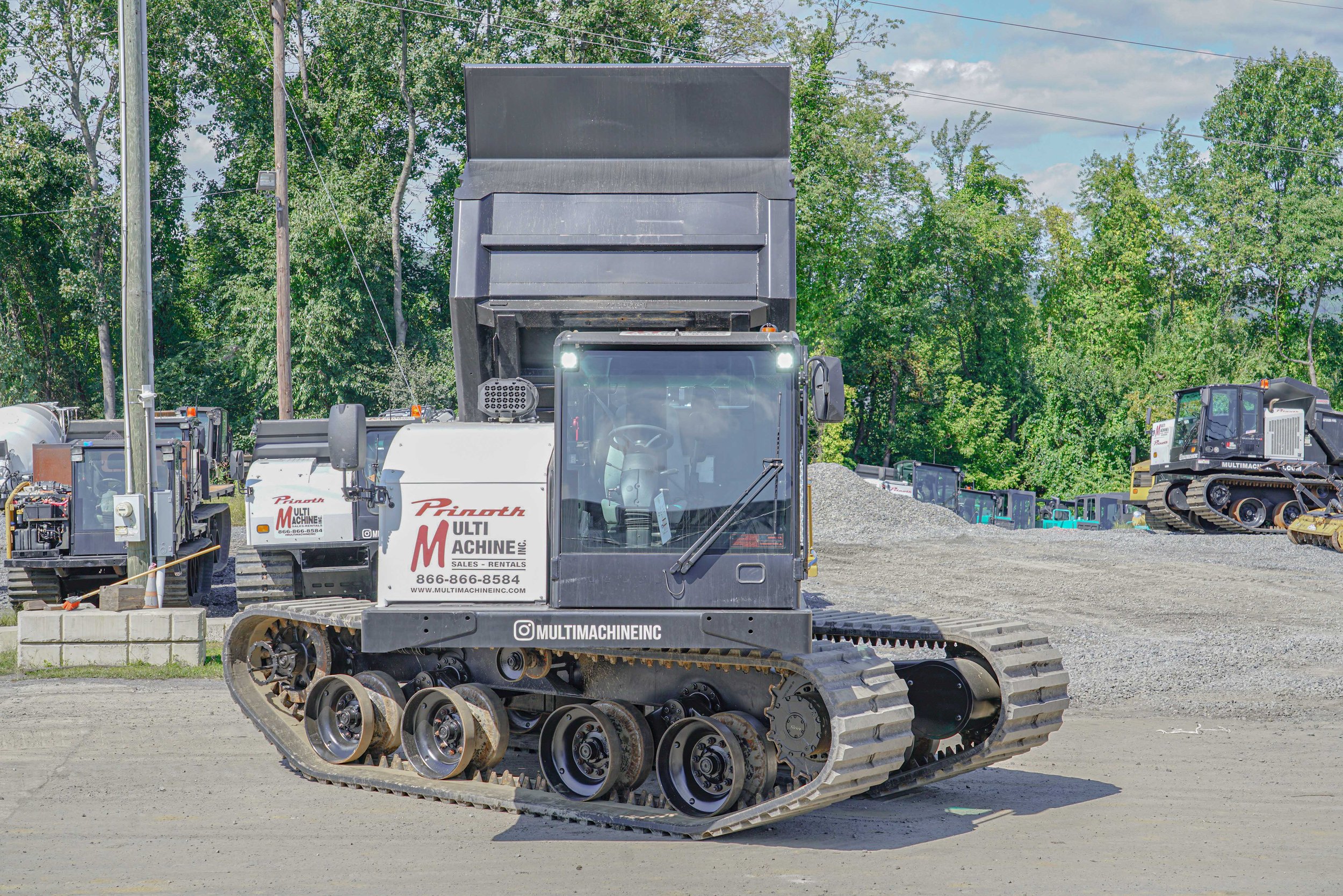

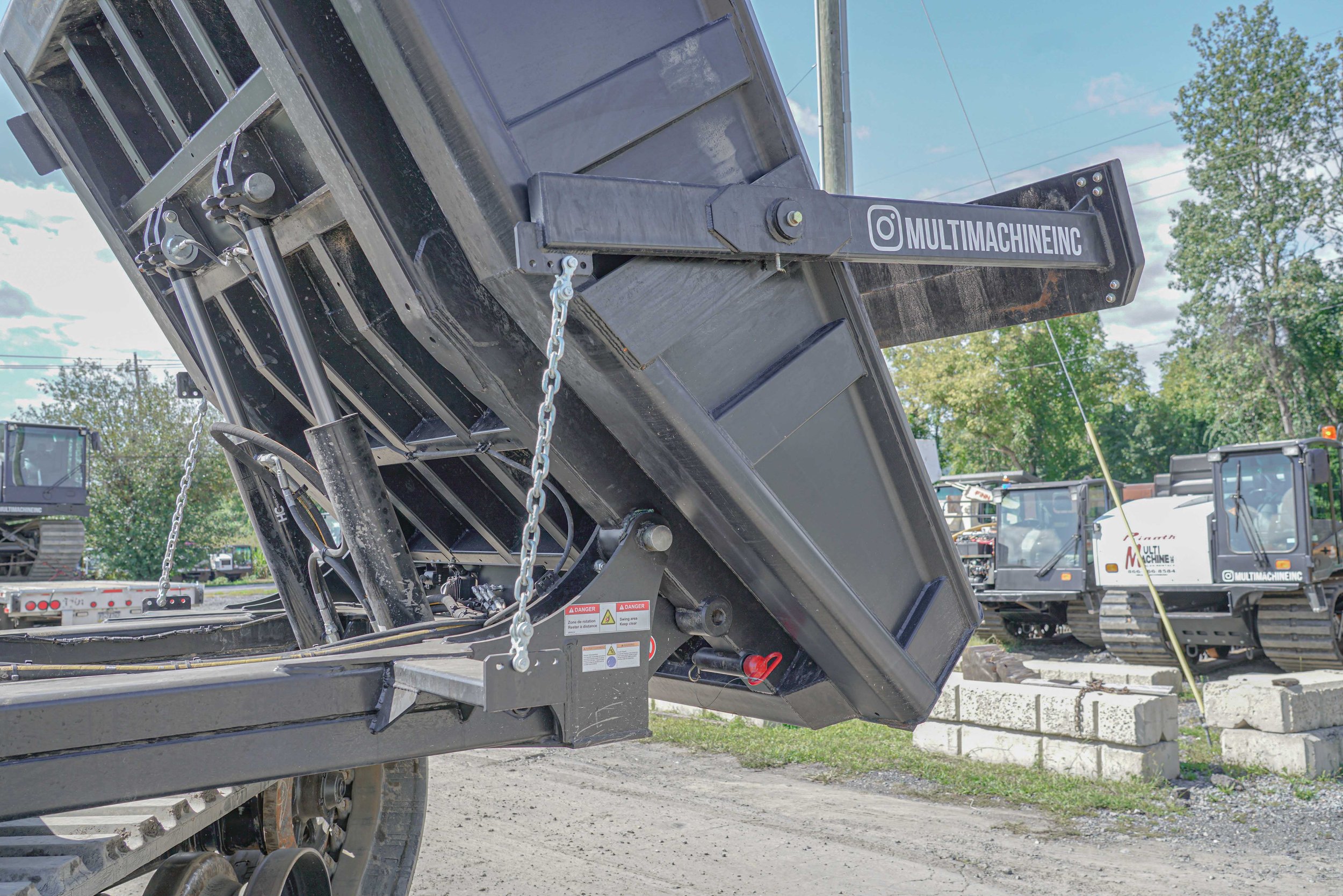

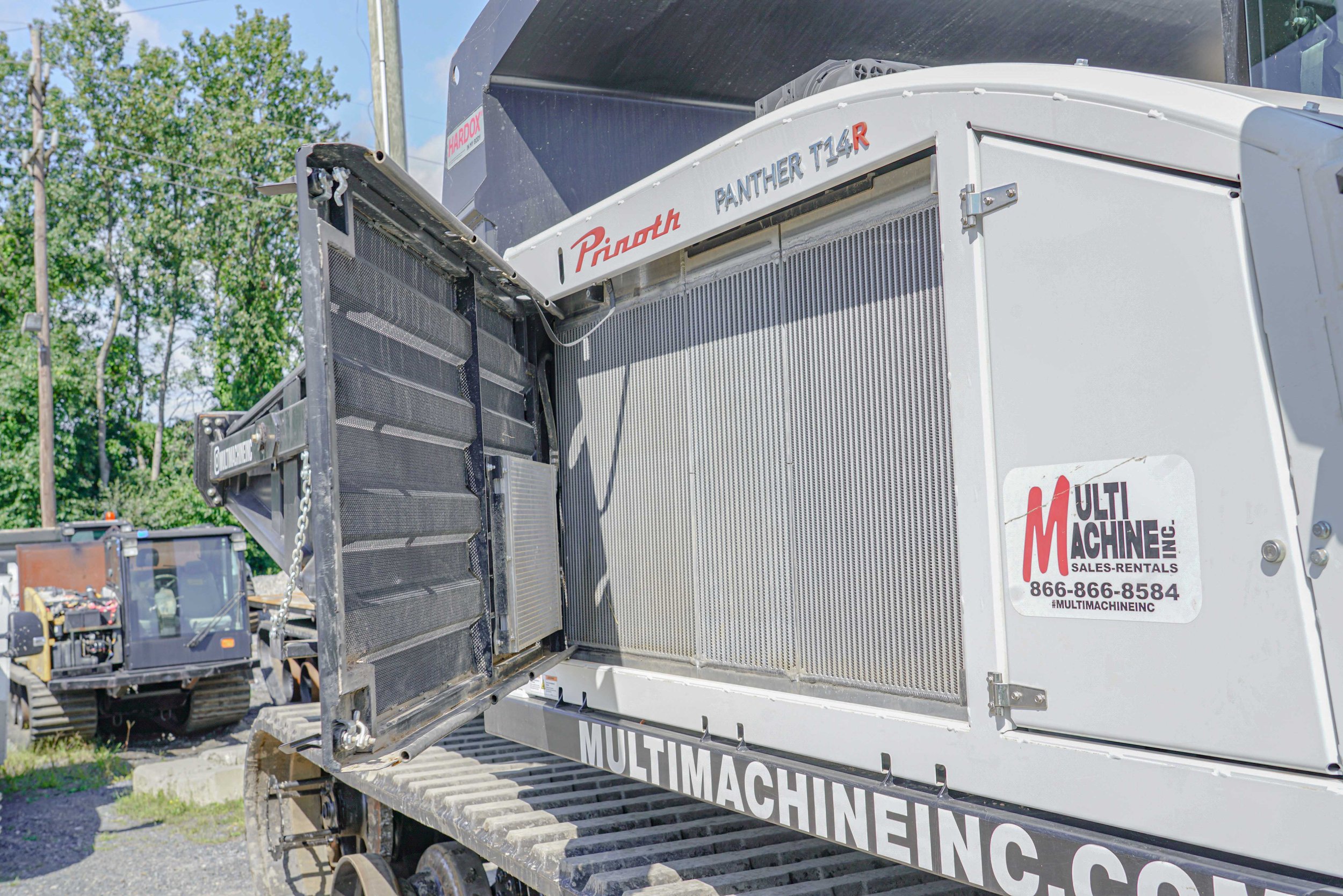

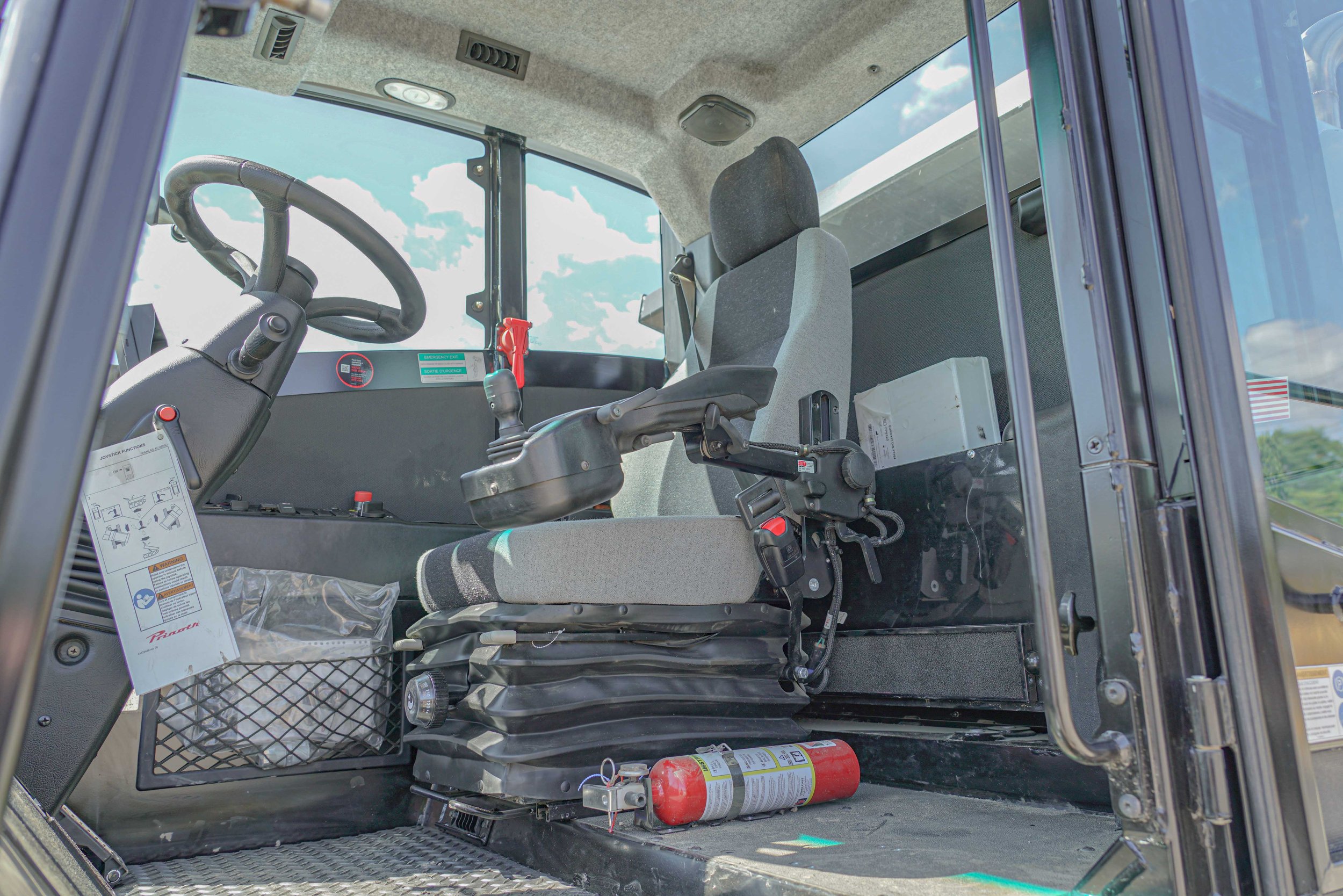

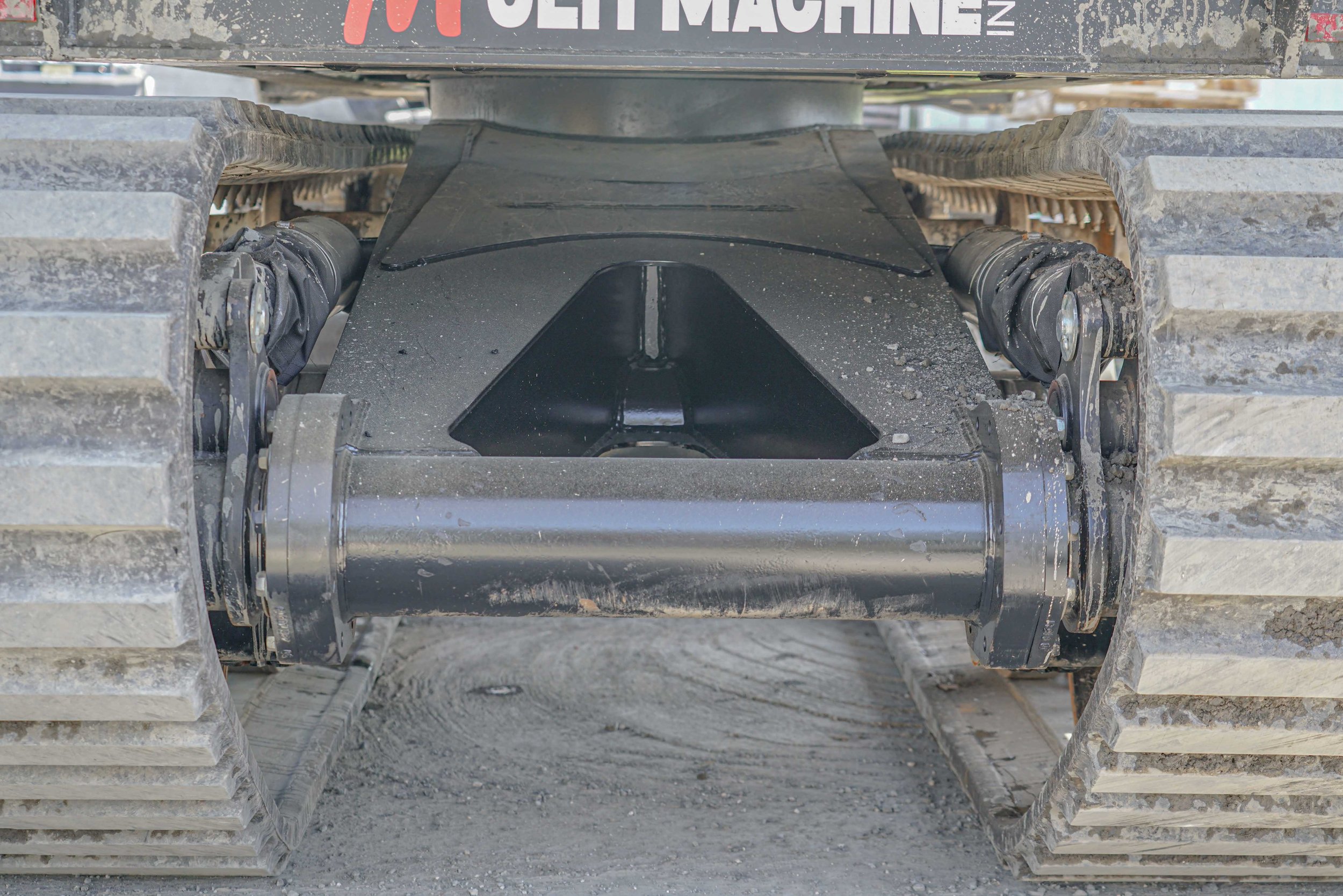

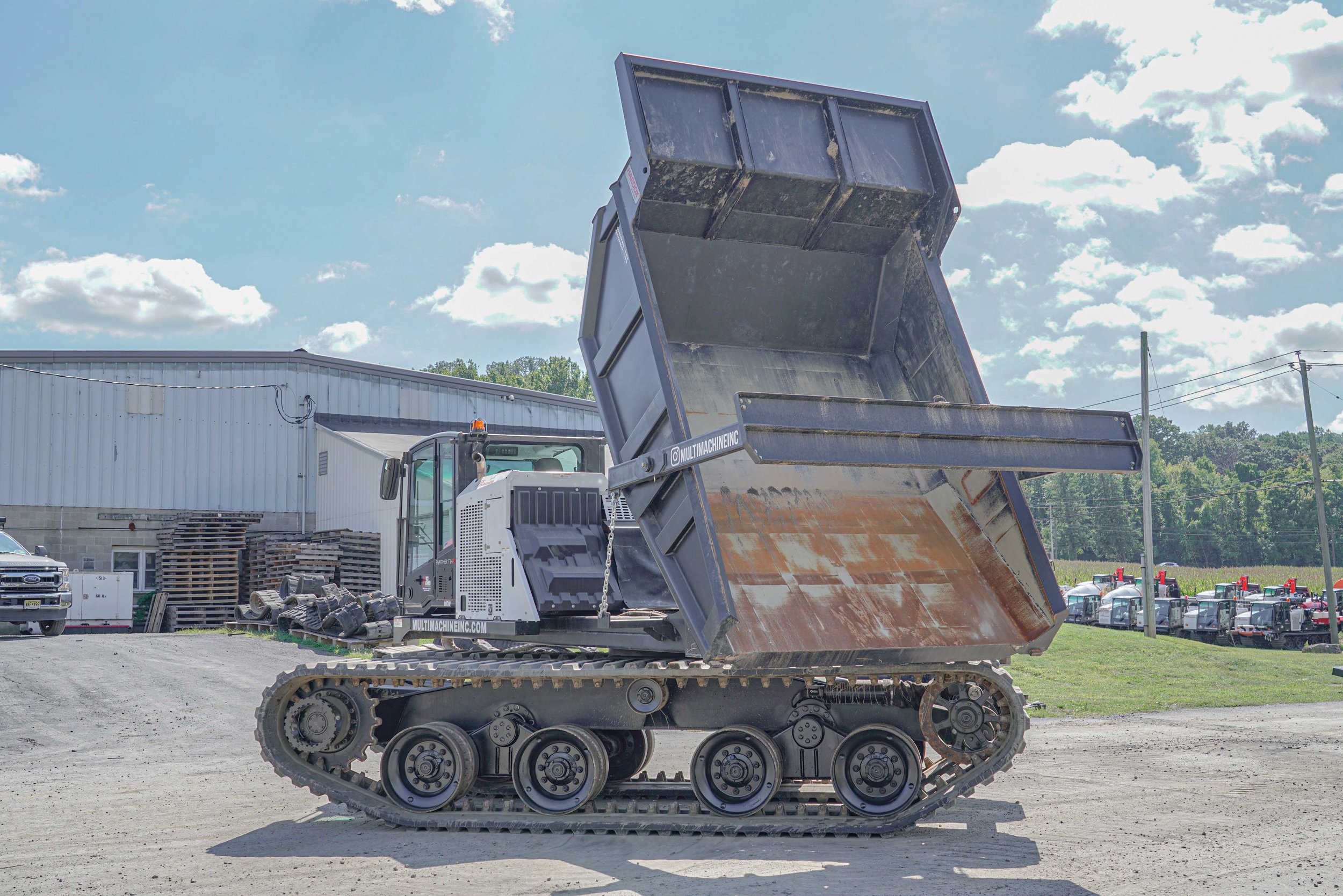

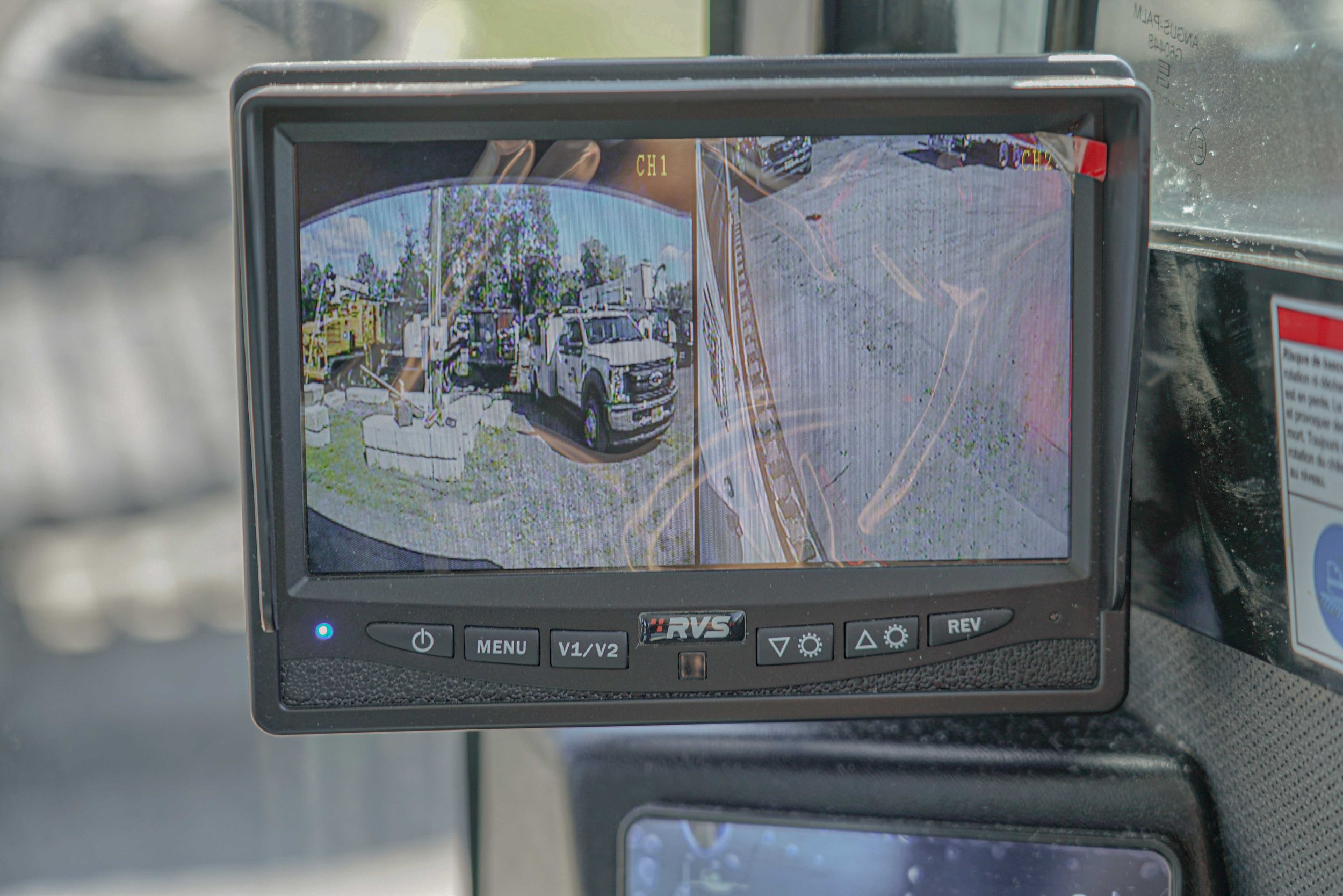

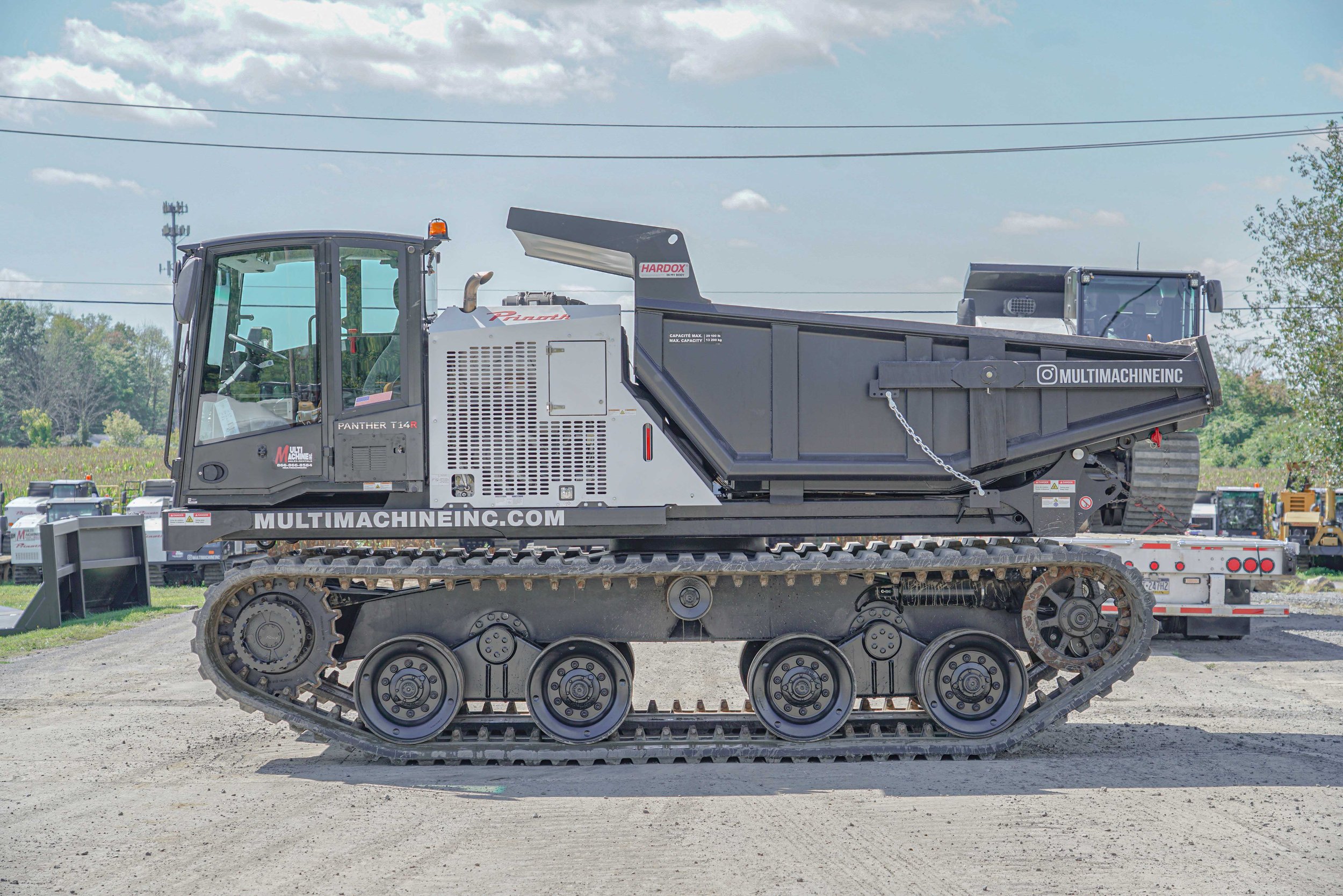

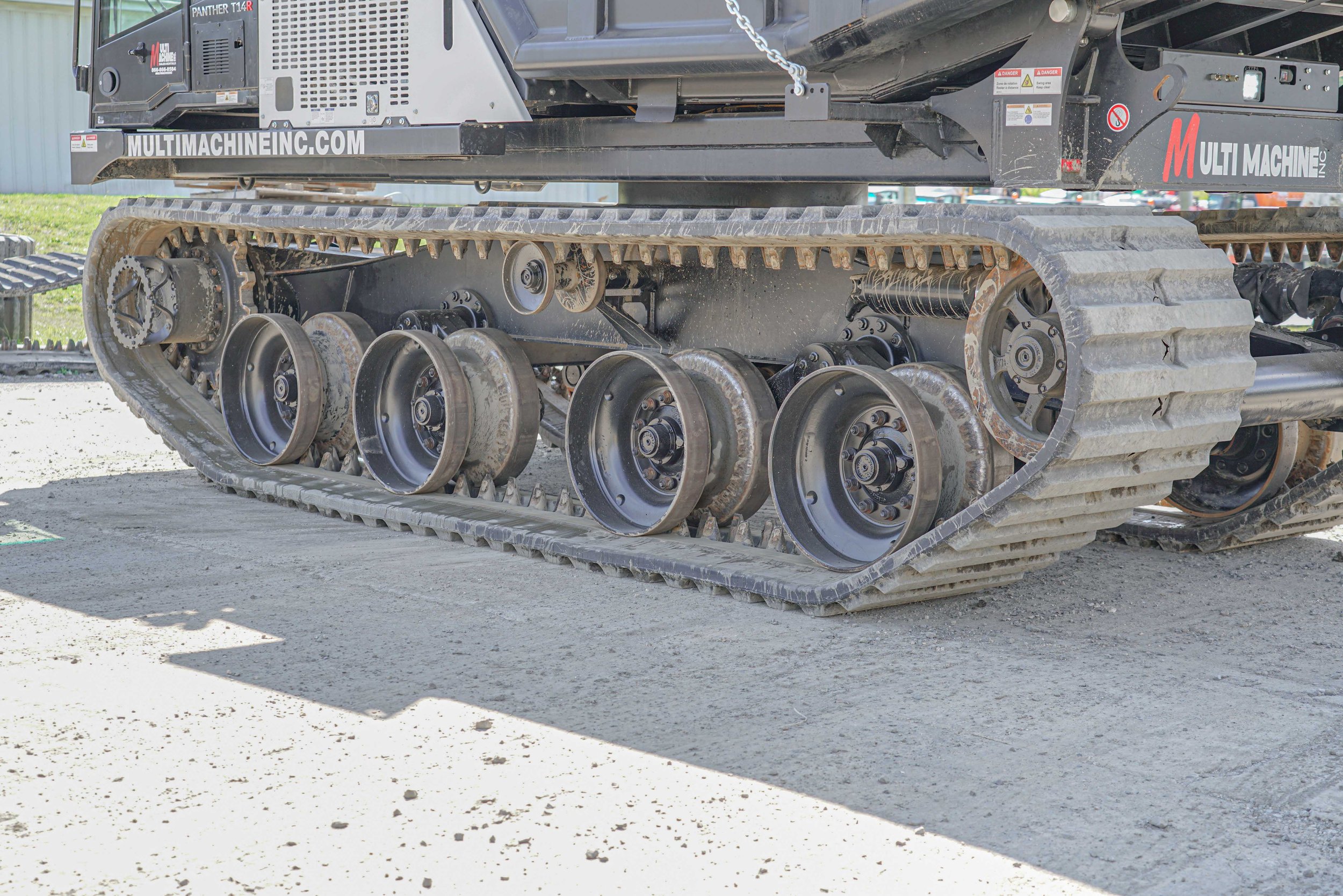

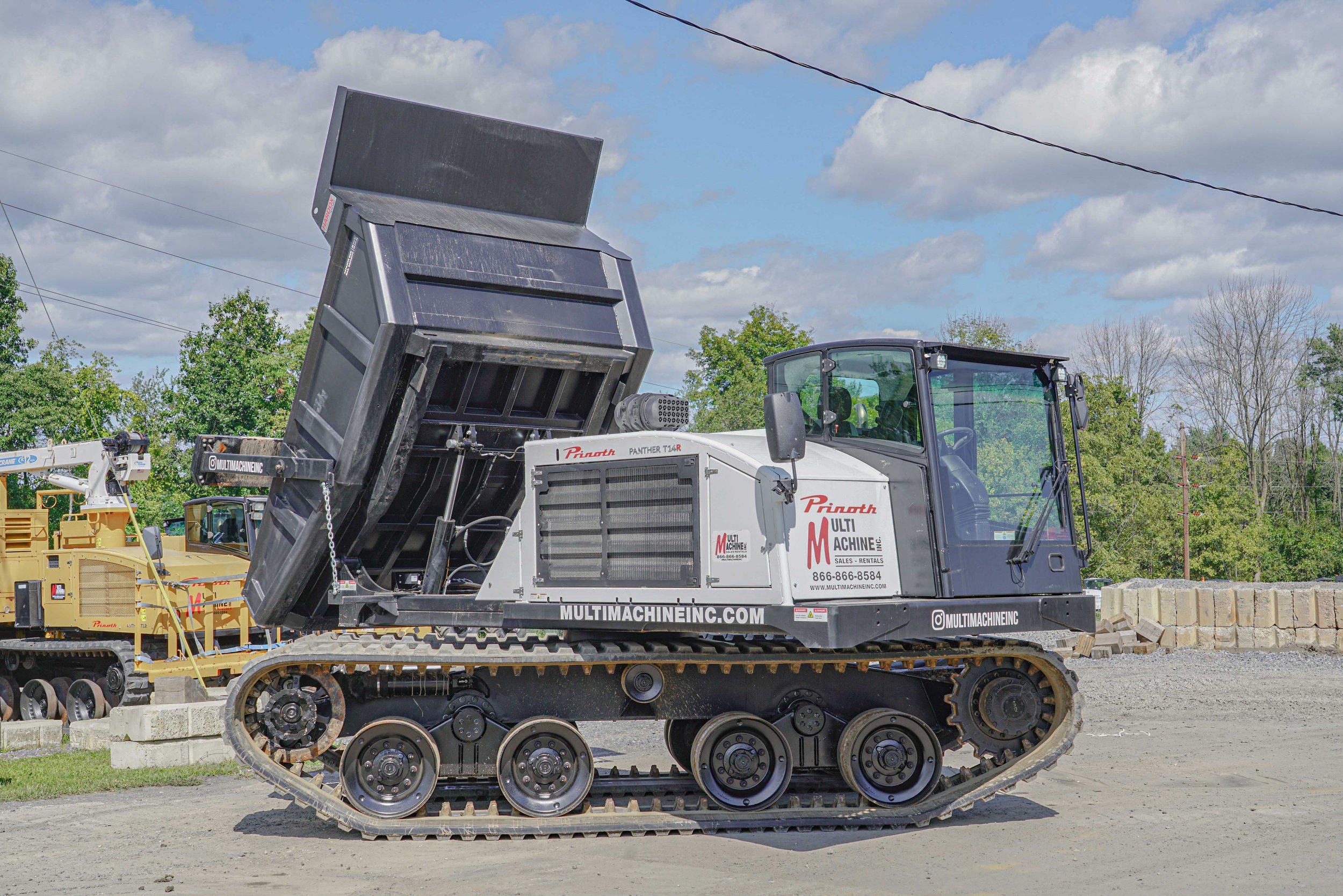

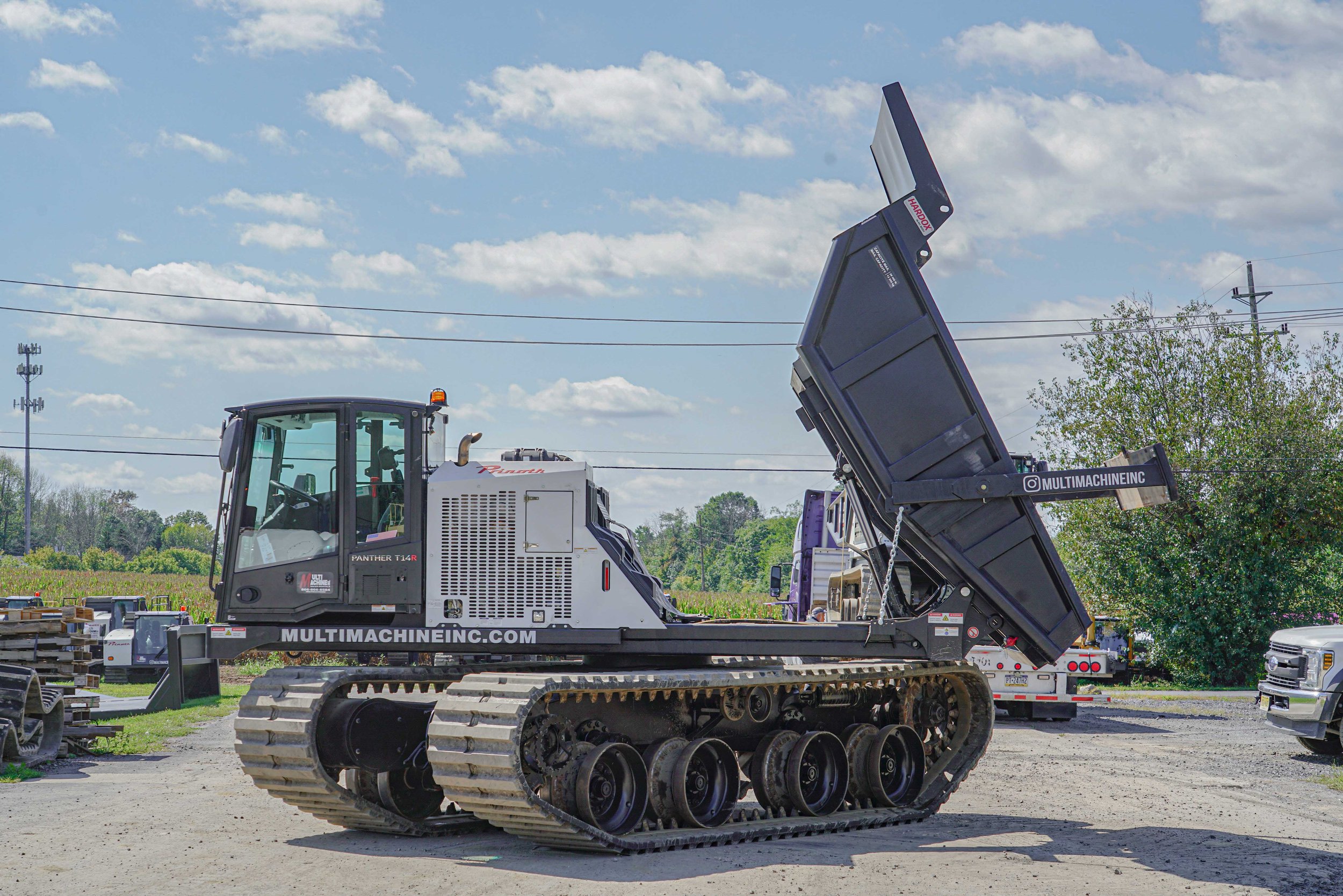

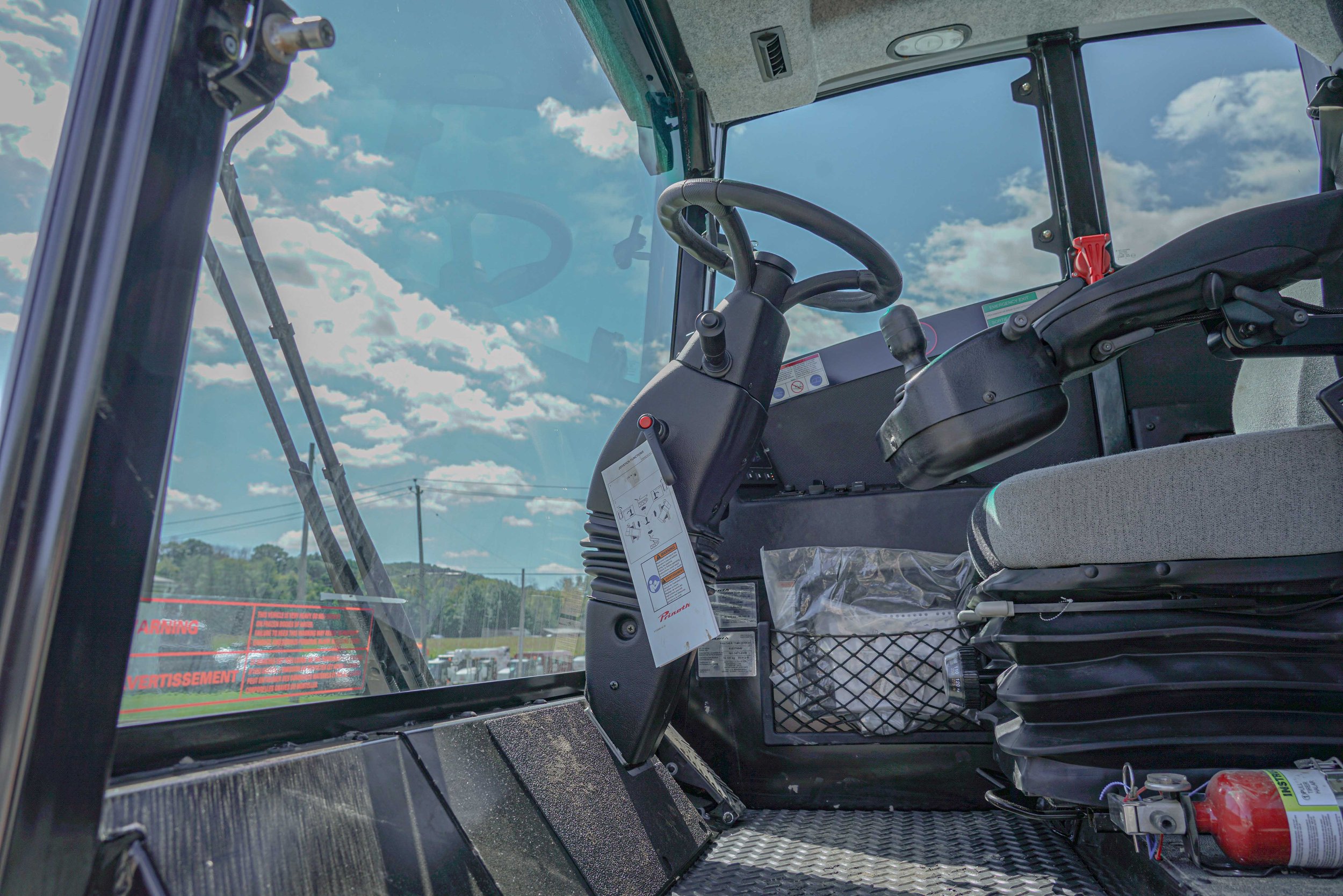

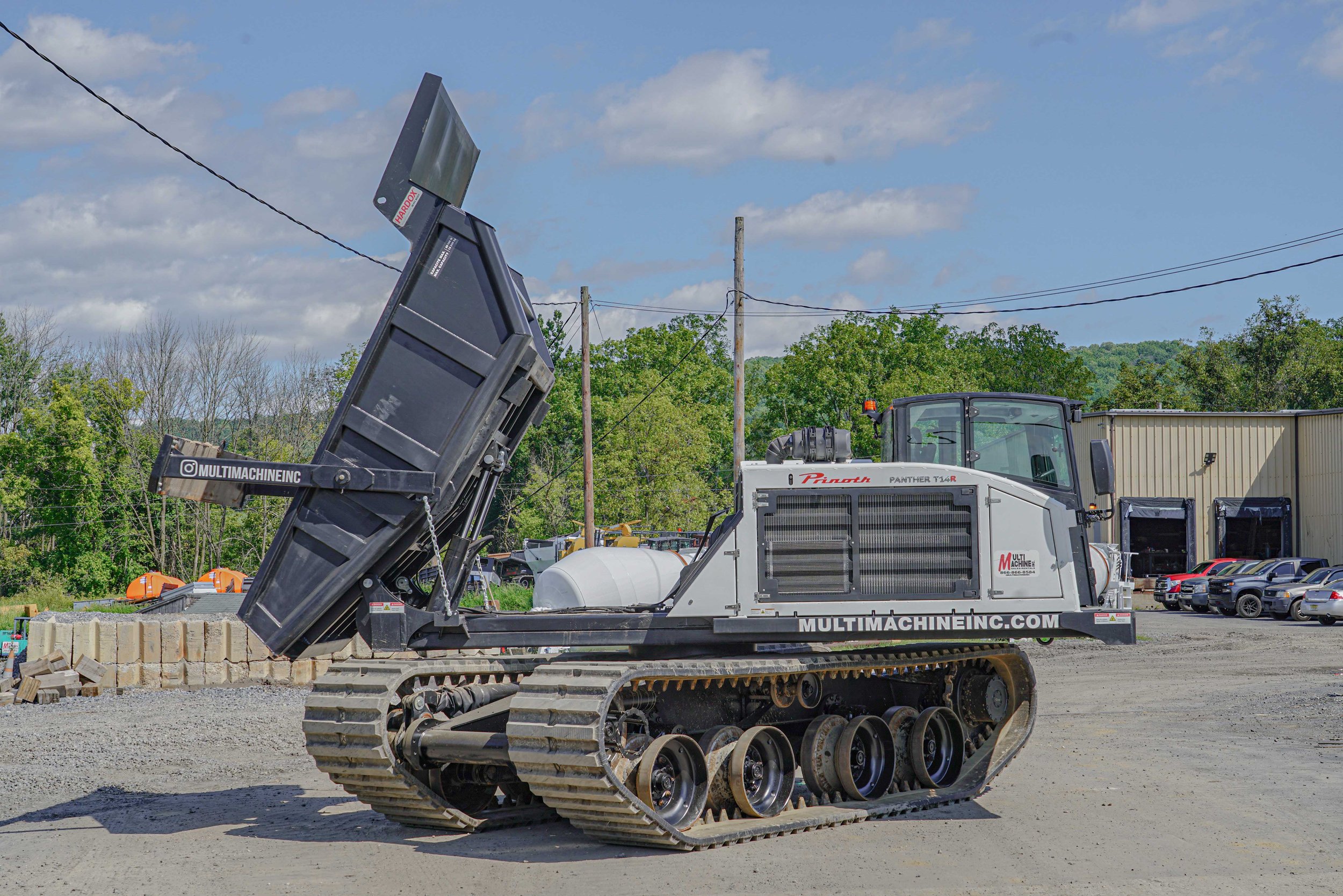

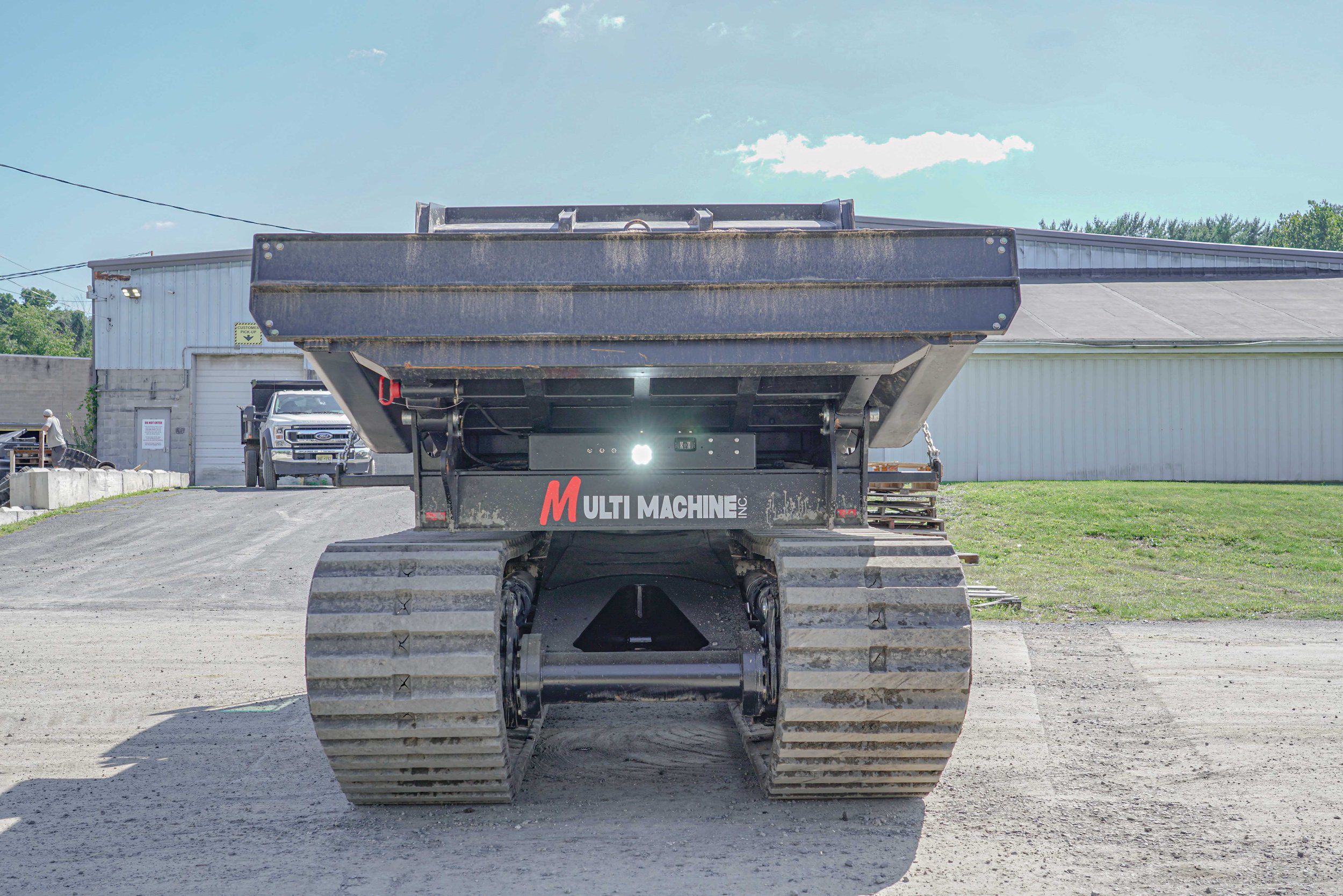

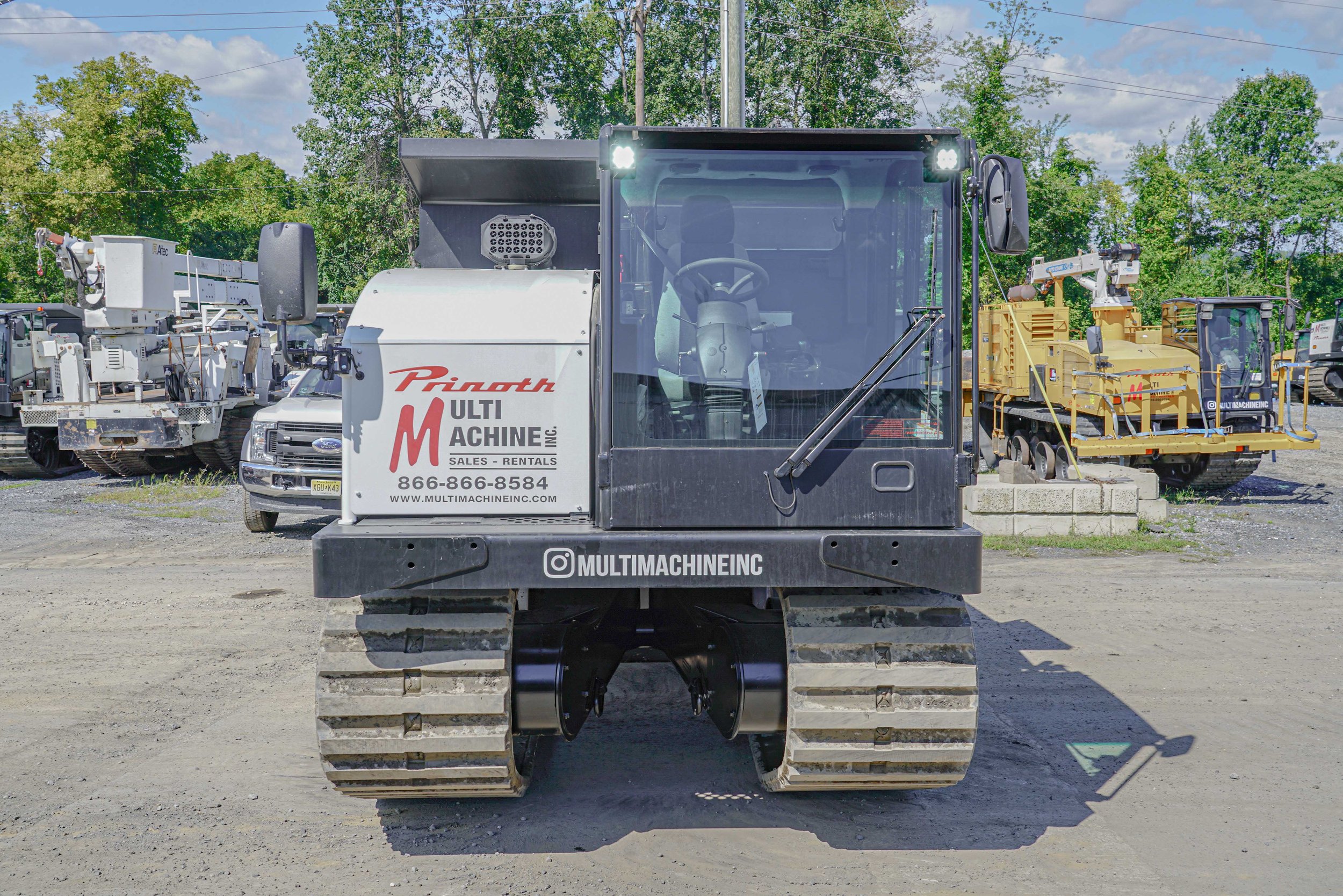

The Prinoth Panther T14R (R for rotating) is an extremely versatile crawler carrier. Panther T14R’s have the ability to rotate the cab and dump box 360 degrees, and are implemented with direction reset, allowing the operator to reset the vehicles alignments with the push of a button. With their high gradeability and low ground pressure, these machines are designed to go nearly anywhere. All Panther T14R’s come equipped with 9.5-yard dump bodies, which are lined with Hardox steel, providing significant reinforcement and enabling it to withstand some of the most aggressive environments. For more information about purchasing or renting this machine, do not hesitate to call Multi Machine Inc.
Hours: 291

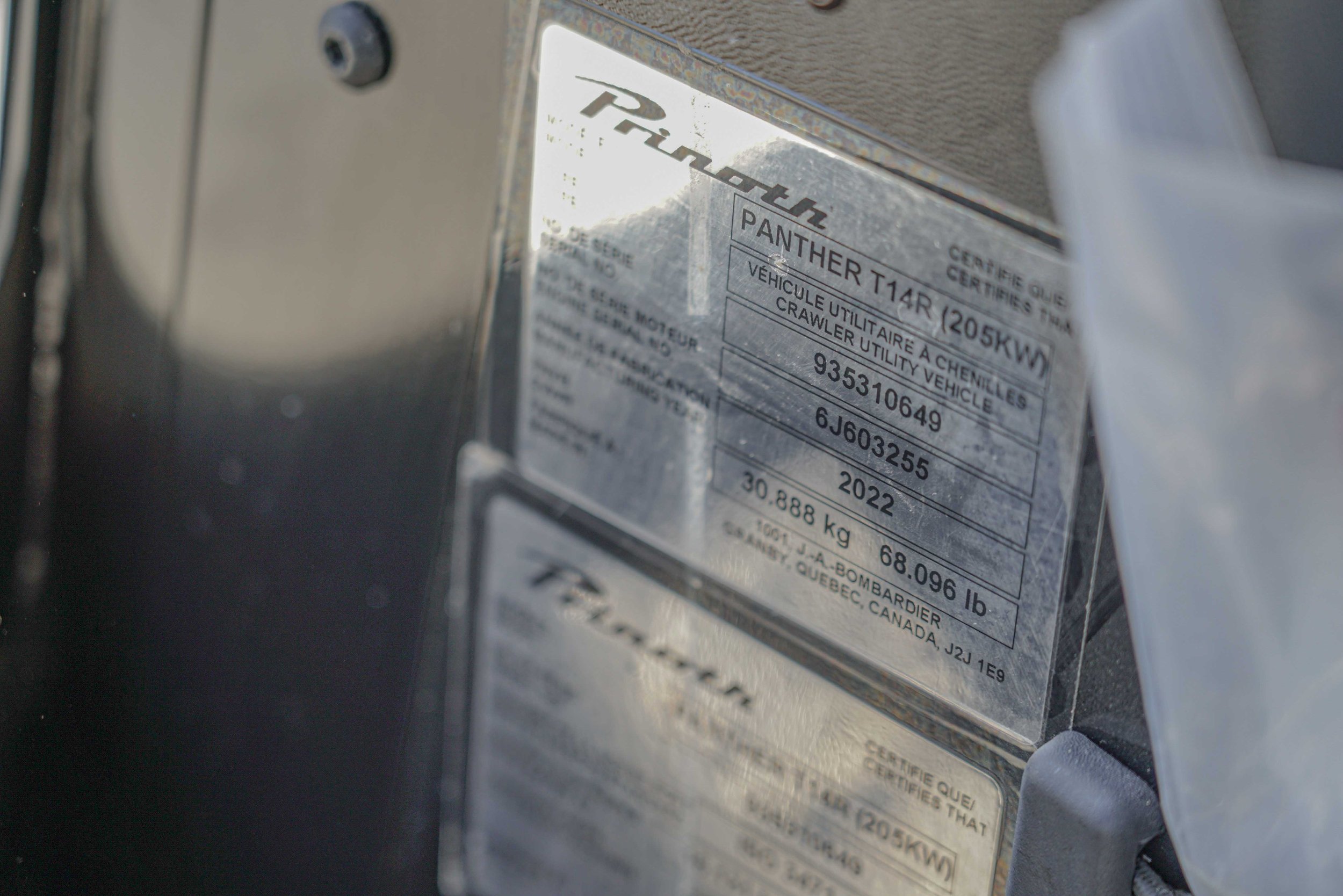

Serial #: 935310649
The Prinoth Panther T14R (R for rotating) is an extremely versatile crawler carrier. Panther T14R’s have the ability to rotate the cab and dump box 360 degrees, and are implemented with direction reset, allowing the operator to reset the vehicles alignments with the push of a button. With their high gradeability and low ground pressure, these machines are designed to go nearly anywhere. All Panther T14R’s come equipped with 9.5-yard dump bodies, which are lined with Hardox steel, providing significant reinforcement and enabling it to withstand some of the most aggressive environments. For more information about purchasing or renting this machine, do not hesitate to call Multi Machine Inc.
Hours: 291
Serial #: 935310649
The Prinoth Panther T14R (R for rotating) is an extremely versatile crawler carrier. Panther T14R’s have the ability to rotate the cab and dump box 360 degrees, and are implemented with direction reset, allowing the operator to reset the vehicles alignments with the push of a button. With their high gradeability and low ground pressure, these machines are designed to go nearly anywhere. All Panther T14R’s come equipped with 9.5-yard dump bodies, which are lined with Hardox steel, providing significant reinforcement and enabling it to withstand some of the most aggressive environments. For more information about purchasing or renting this machine, do not hesitate to call Multi Machine Inc.
Hours: 291
Serial #: 935310649
-
Weight: 36,663 lbs.
Payload: 29,100 lbs.

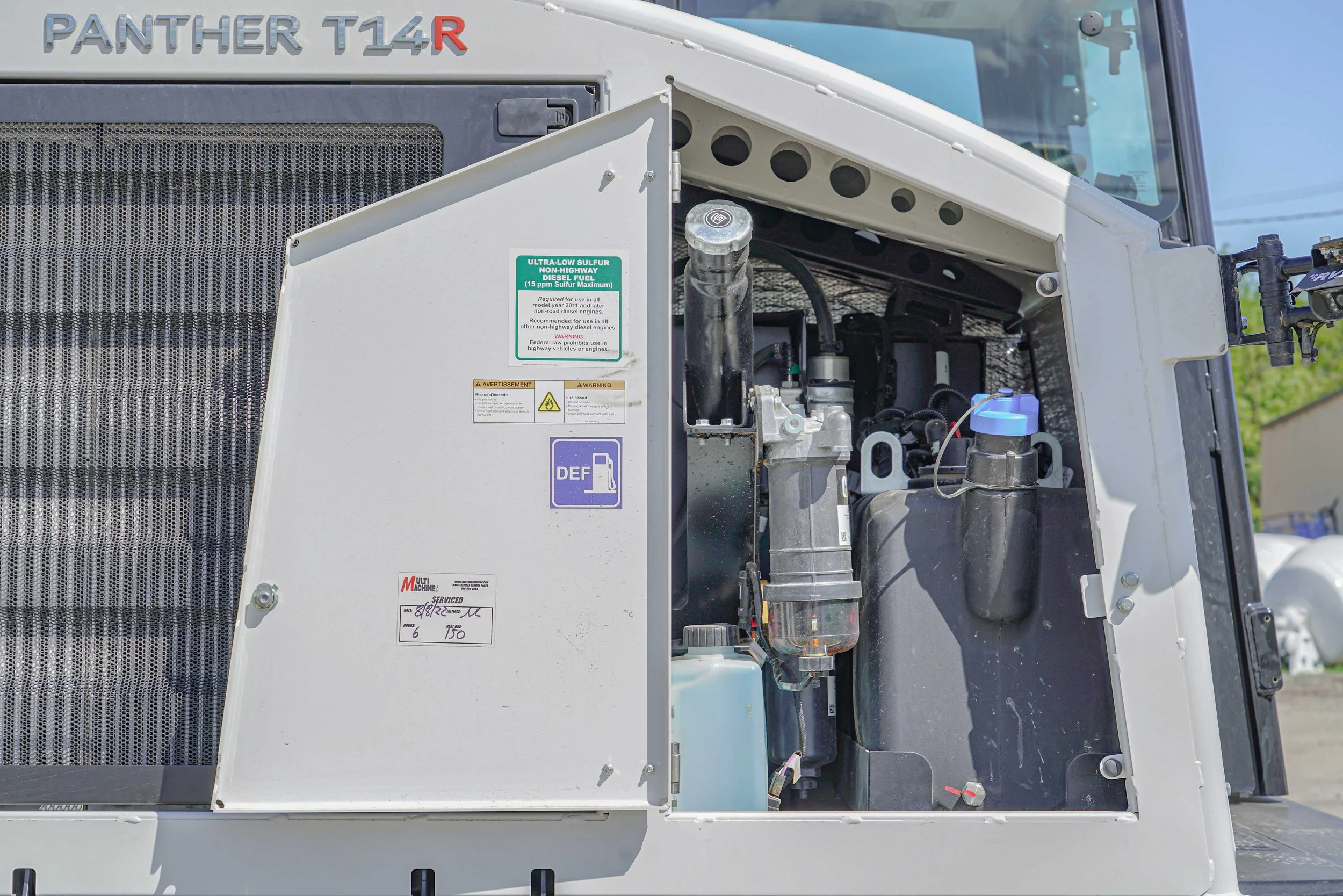

Engine: Caterpillar C7.1 Acert
Fuel Tank Capacity: 79 Gallons
Horsepower @ 2200 rpm: 275 hp
Torque @ 1400 rpm: 927 lb-ft
Maximum Speed: 8.4 mph
Ground Pressure (Empty): 3.90 psi
Ground Pressure (Loaded): 7.04 psi
Length: 19’ 5.5”
Width: 8'5"
Height: 10'8.5"
Track Height: 47”
Ground Clearance: 20"
Gradeability (Uphill/Downhill): 33%
Gradeability (Side hill): 33%
-

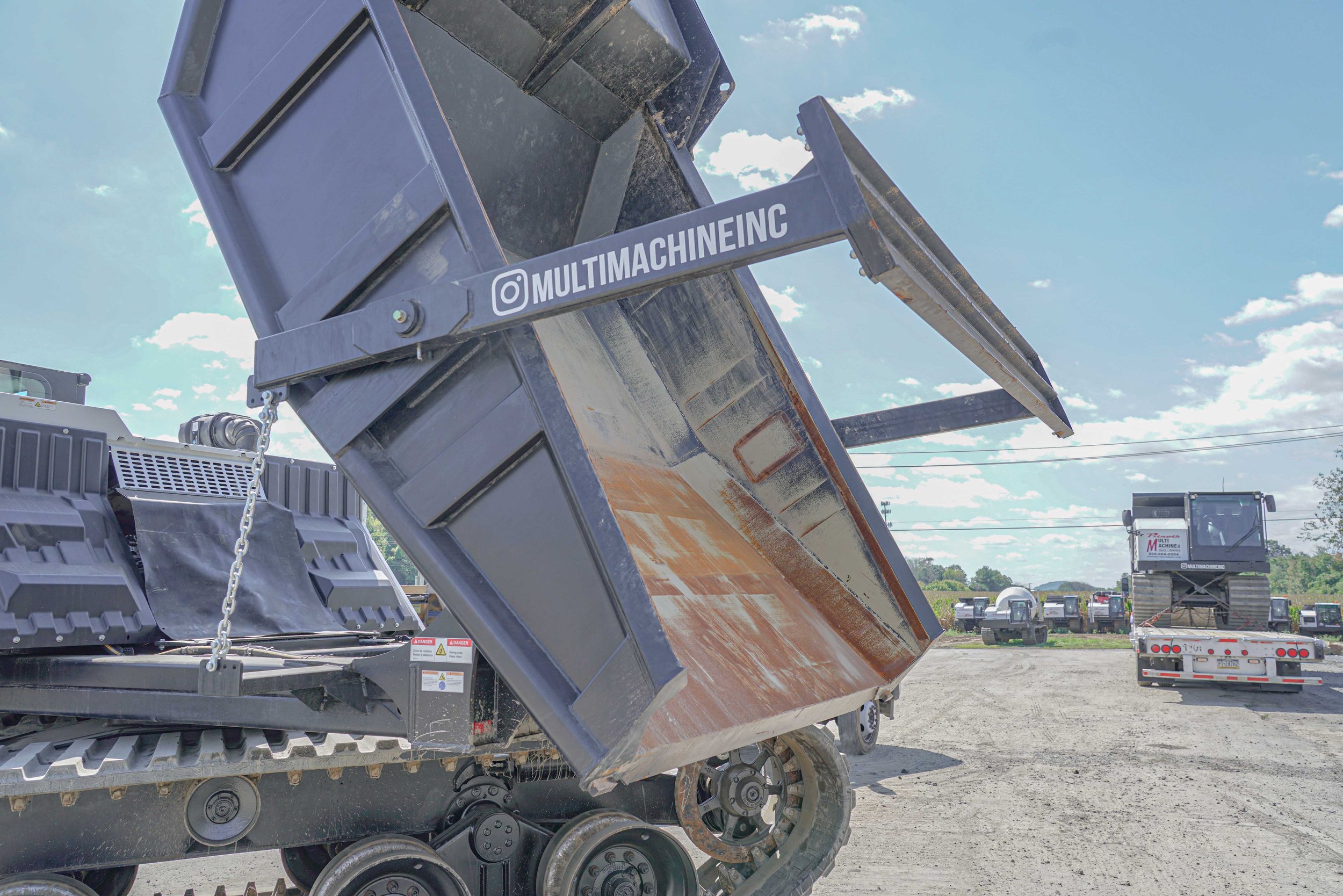

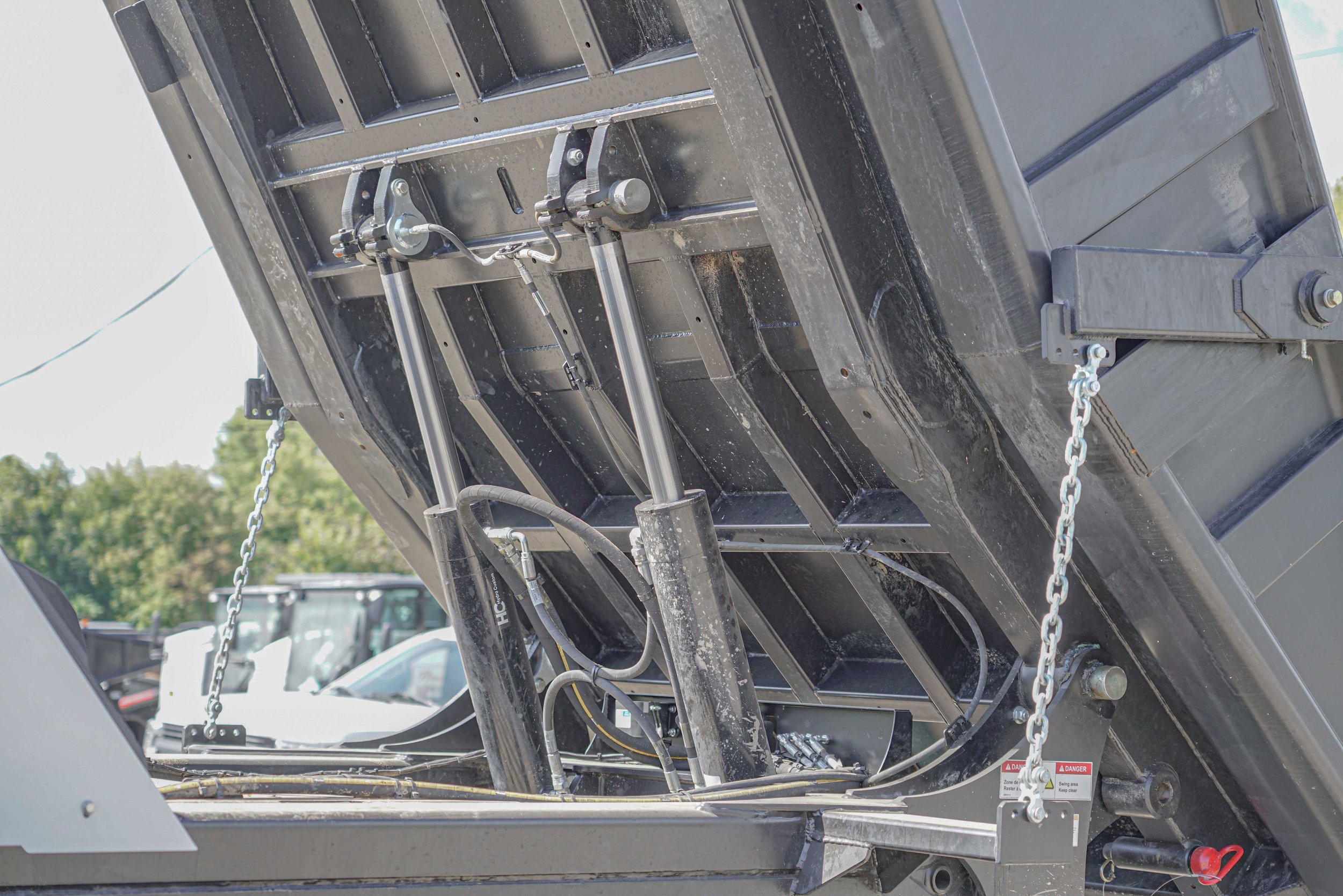

Dump Box Capacity (Struck): 6.6 yd3
Dump Box Capacity (Heaped): 9.5 yd3
Dump Body Length: 127”
Box Width: 101”
Inner Box Width: 95”
Inner Box Height (Sides): 34”
Headboard Height: 59”
Dump Box Peak Height: 207”

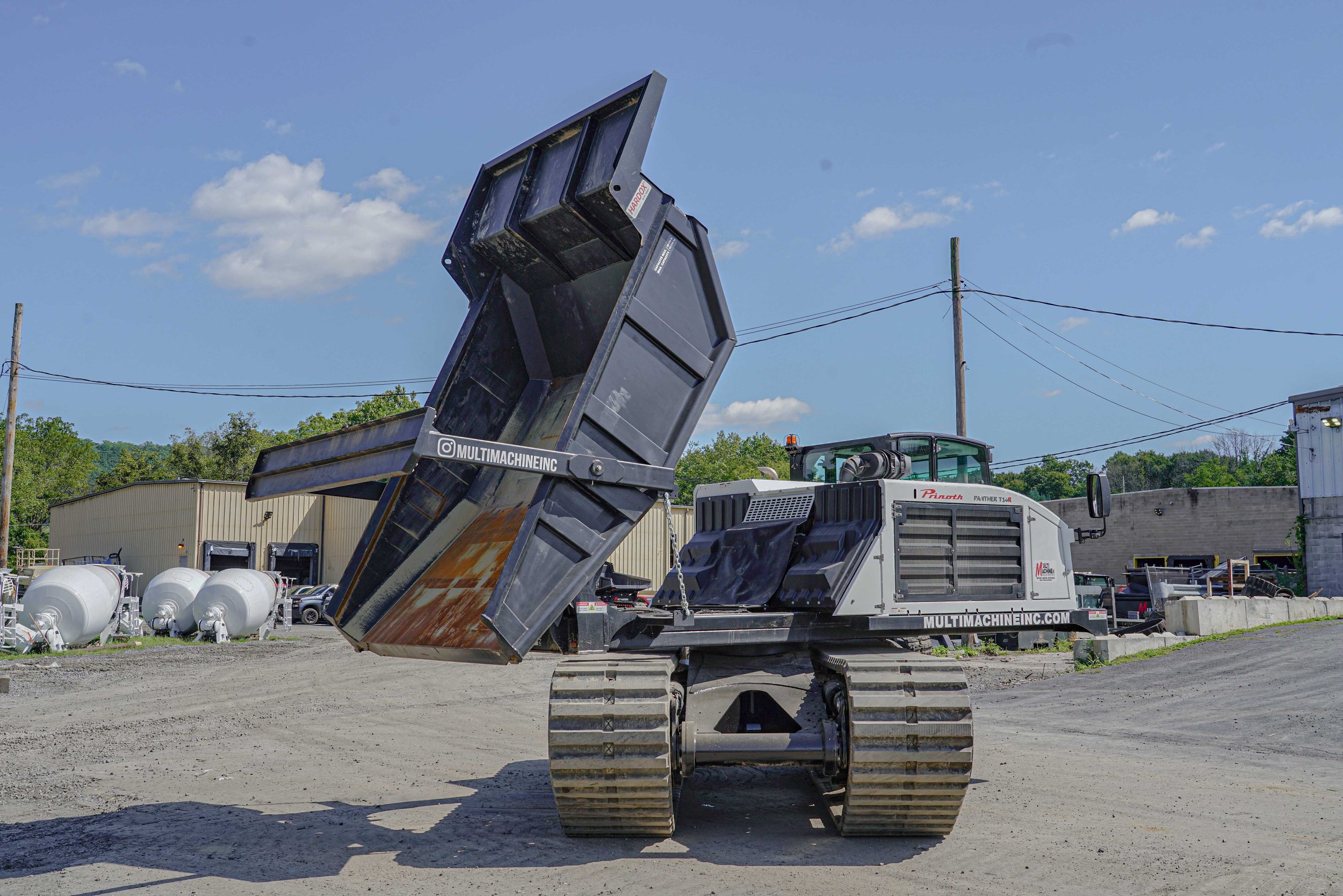

Maximum Dump Angle: 60°
