2019 Prinoth Panther T16 - Stock #5836D

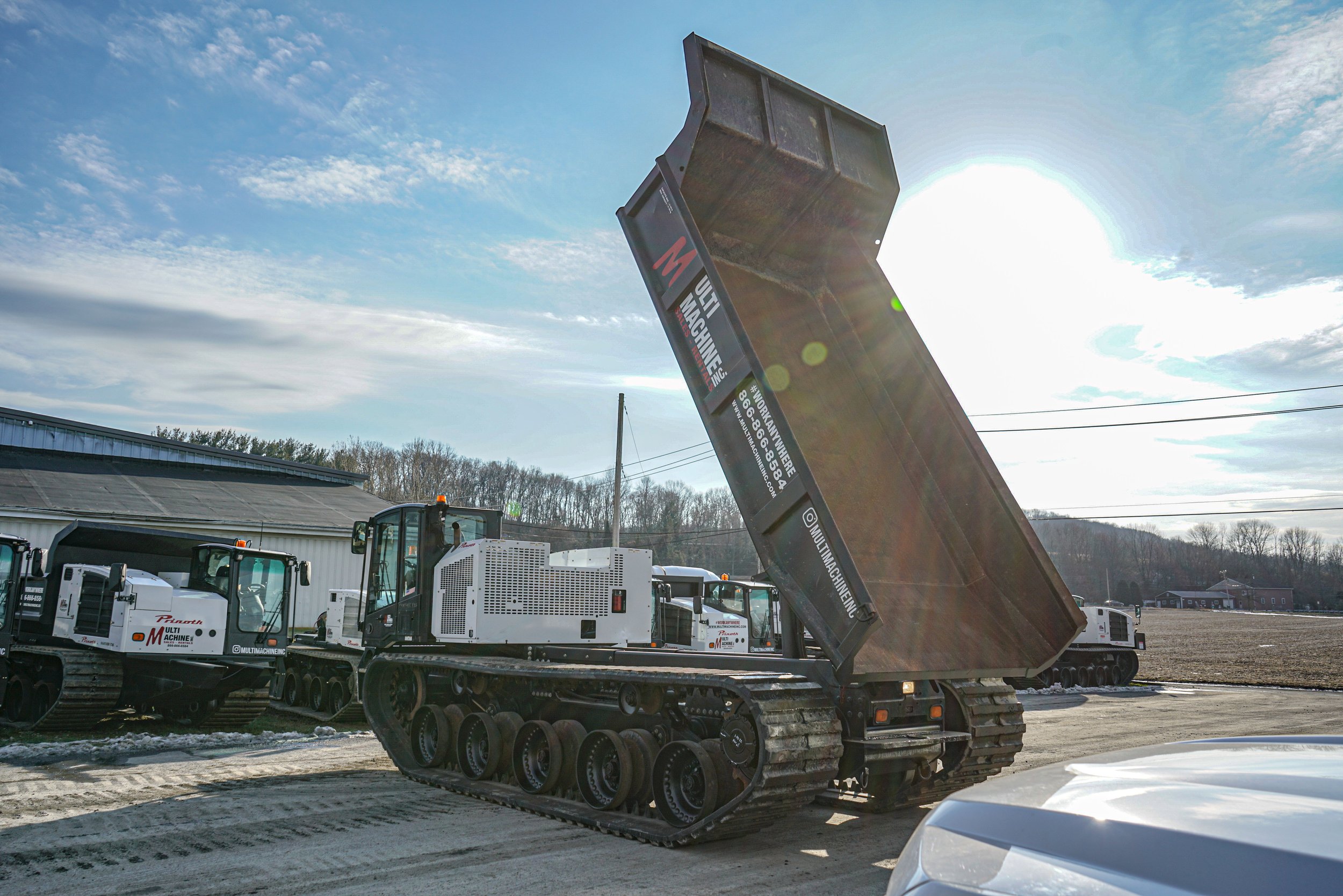

The Prinoth Panther T16 is an extremely versatile crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. The vehicles can be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is equipped with a dump box, enabling you to transport up to 17 tons of material through some of the roughest terrain. If you have any questions regarding purchase, rental, or anything else, don't hesitate to call Multi Machine Inc.
The Prinoth Panther T16 is an extremely versatile crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. The vehicles can be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is equipped with a dump box, enabling you to transport up to 17 tons of material through some of the roughest terrain. If you have any questions regarding purchase, rental, or anything else, don't hesitate to call Multi Machine Inc.
The Prinoth Panther T16 is an extremely versatile crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. The vehicles can be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is equipped with a dump box, enabling you to transport up to 17 tons of material through some of the roughest terrain. If you have any questions regarding purchase, rental, or anything else, don't hesitate to call Multi Machine Inc.
-
Hours: 791
Serial #: 935420545
Machine Weight: 40,558 lbs.
Payload: 33,500 lbs.
Maximum Speed: 8 mph
Ground Pressure (Empty): 3.71 psi
Ground Pressure (Loaded): 6.87 psi
Engine: Caterpillar C7.1 Acert
Horsepower @ 2200 rpm: 275 hp
Torque @ 1400 rpm: 927 lb-ft
Fuel Tank Capacity: 86 Gallons
Uphill Gradeability: 31°
Side Hill Gradeability: 21.8°
Length: 26’2”
Width: 9’9”
Height: 10’
Ground Clearance 20"
-
Dump Box Capacity (Struck): 8.6 yd3
Dump Box Capacity (Heaped): 11.5 yd3
Dump Body Length: 177”
Box Width: 102”
Inner Box Width: 96”
Inner Box Height (Sides): 28”
Headboard Height: 57”
Dump Box Peak Height: 248"
