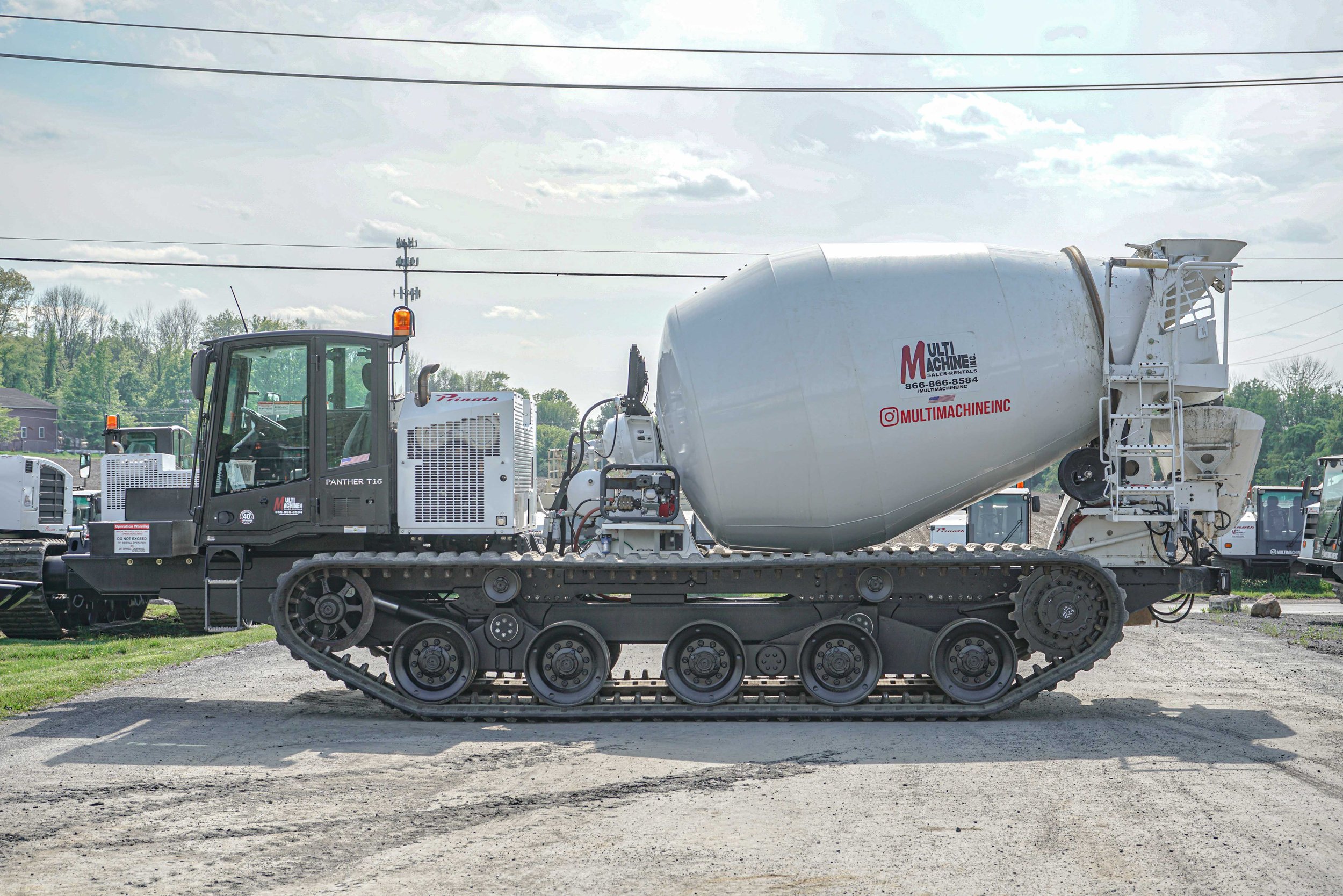

Machine Weight: 43,640 lbs.
Payload: 33,500 lbs.
Maximum Speed: 8 mph
Ground Pressure (Empty): 3.11 psi
Ground Pressure (Loaded): 6.87 psi
Engine: Caterpillar C7.1 Acert
Horsepower @ 2200 rpm: 275 hp
Torque @ 1400 rpm: 927 lb-ft
Fuel Tank Capacity: 86 Gallons
Uphill Gradeability: 31°
Side Hill Gradeability: 21.8°
Length: 30’6”
Width: 9’9”
Height: 11’8”
Ground Clearance 20"
Mixer Specifications
-
Serial #: 19462L
Drum Capacity: 9 cu yd.
Water Tank Capacity: 150 gallons
Discharge Opening: 42”
Concrete density of: 4,070 lb/yd³
Weight: 7,550lb
