2023 Prinoth Panther T16 - Stock #6476D

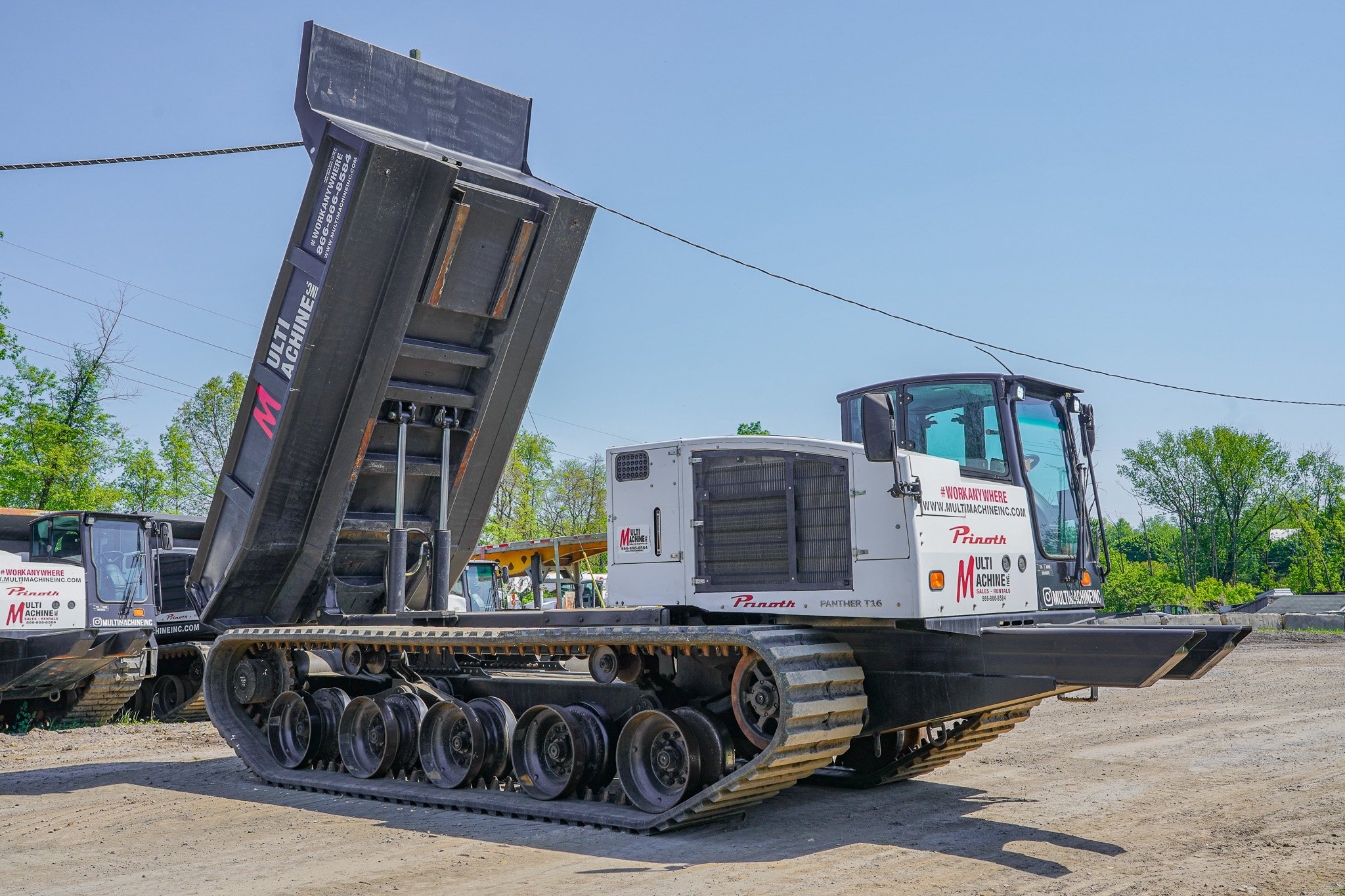

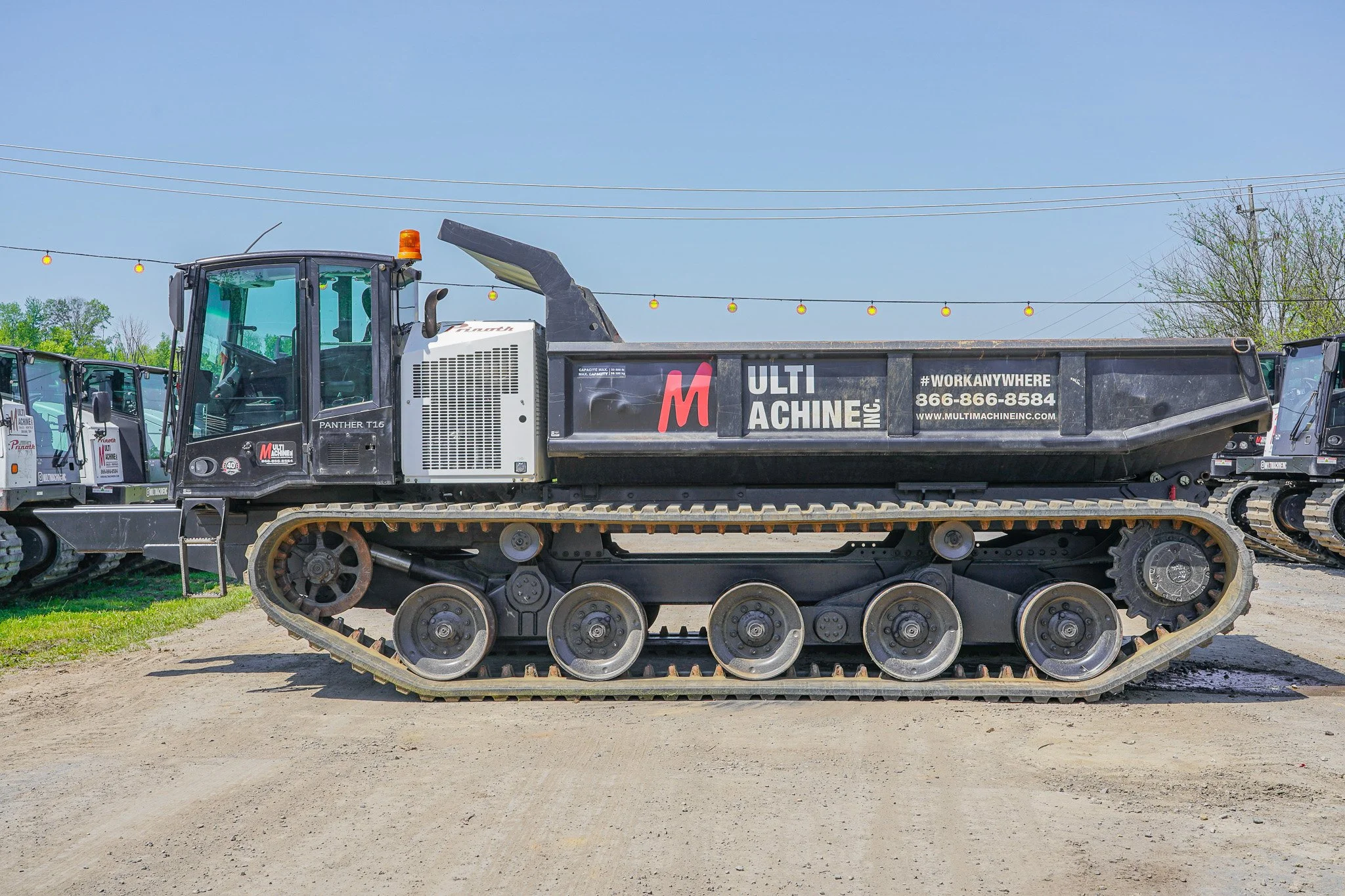

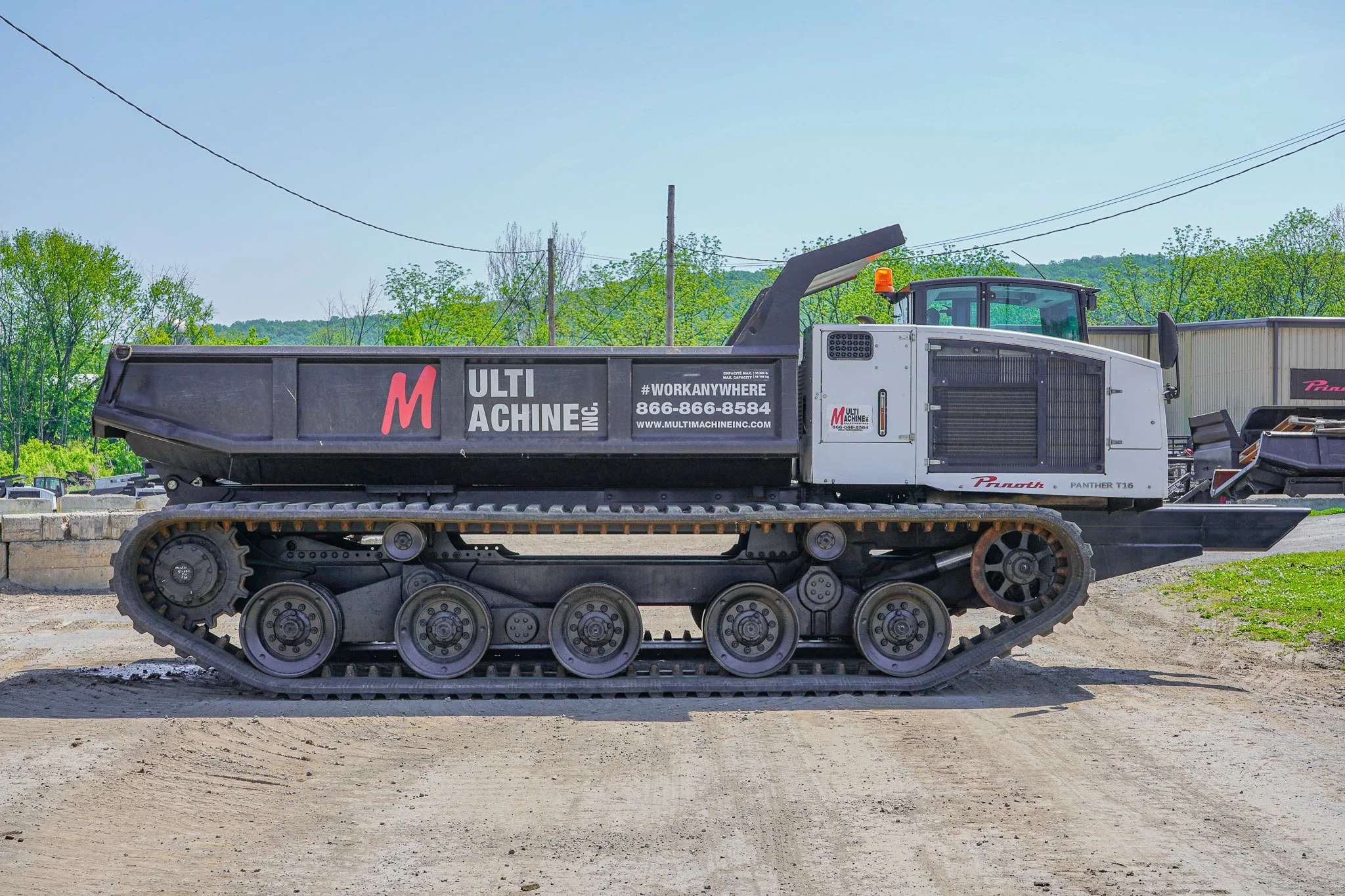

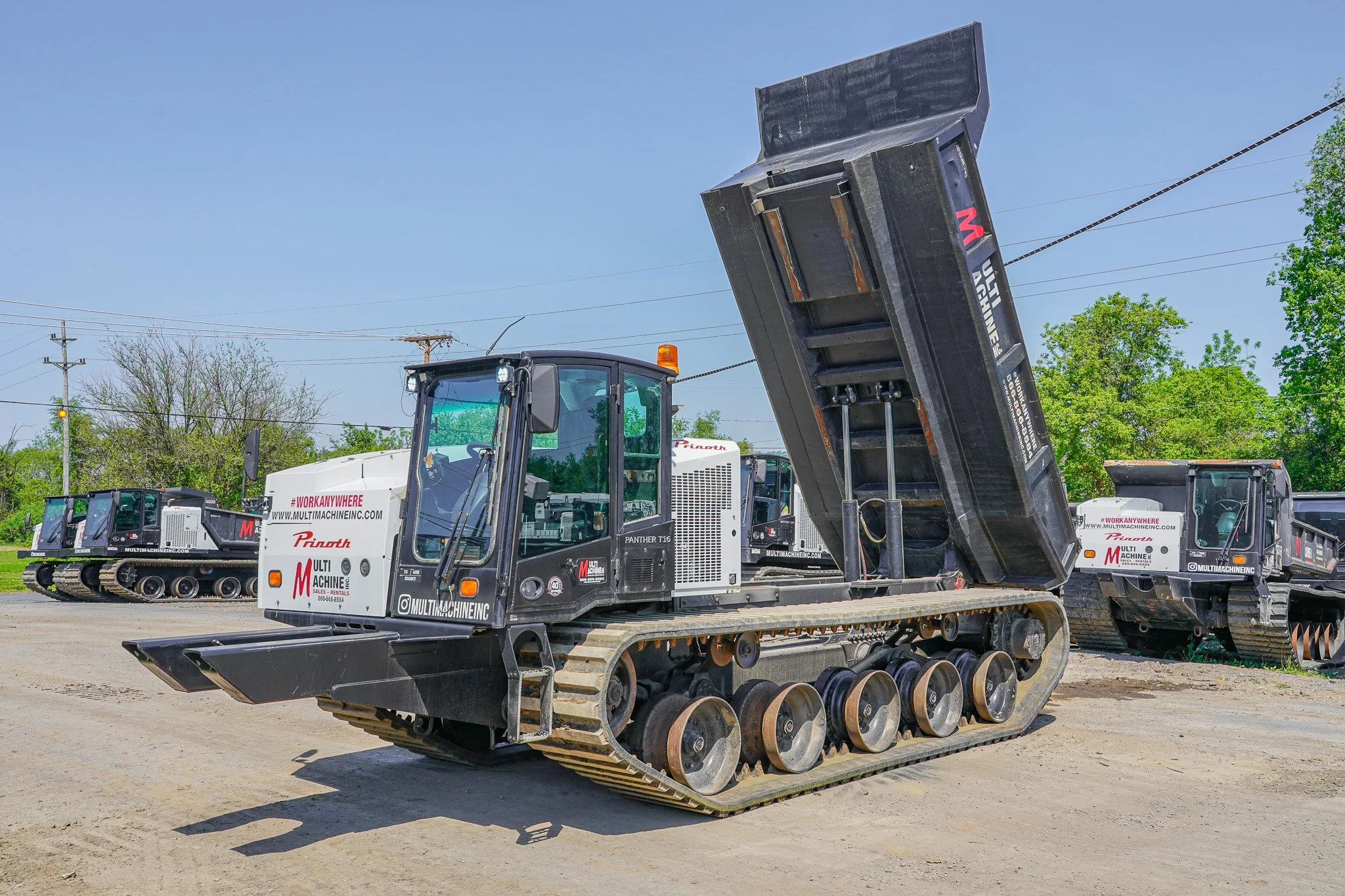

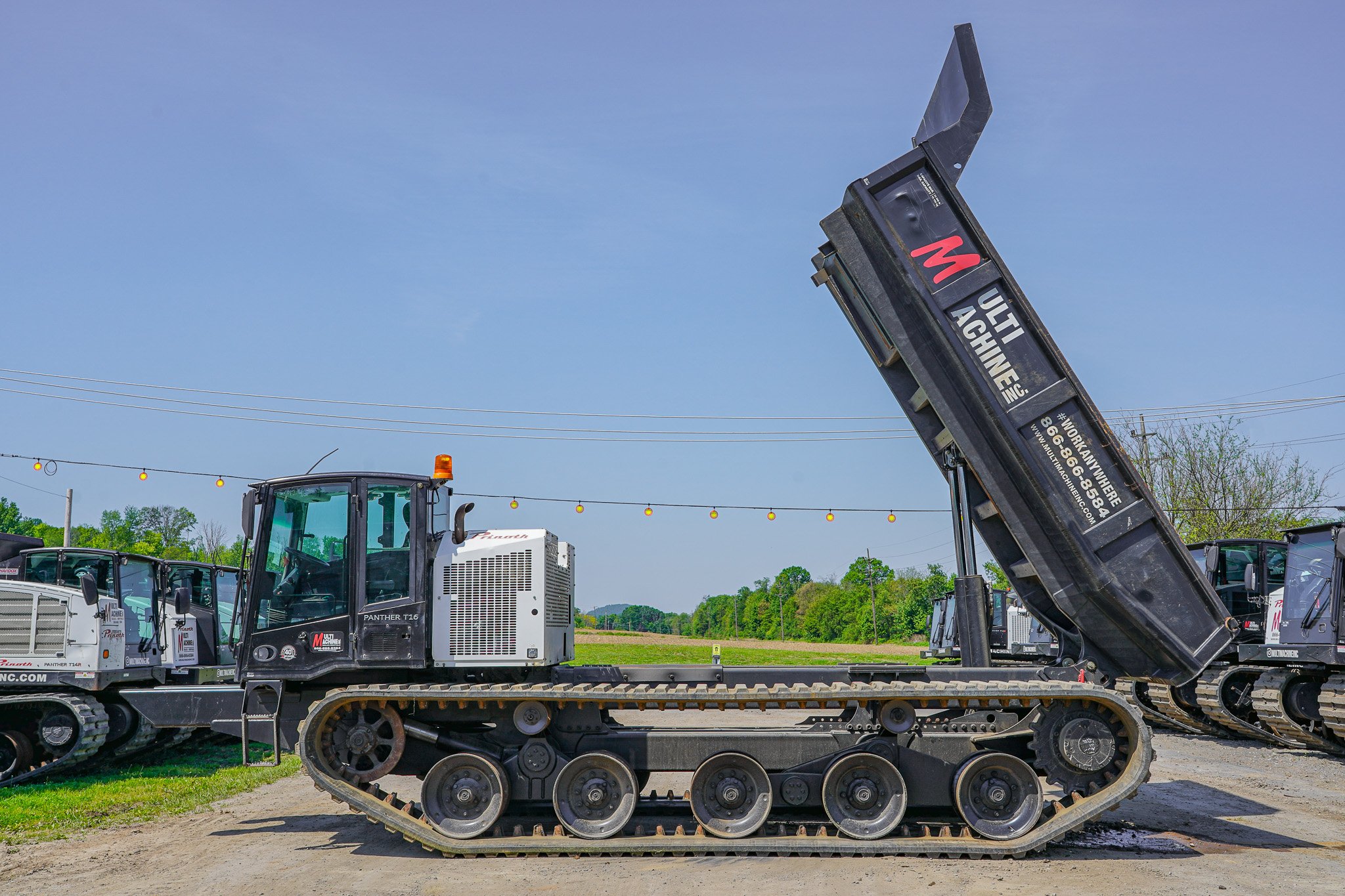

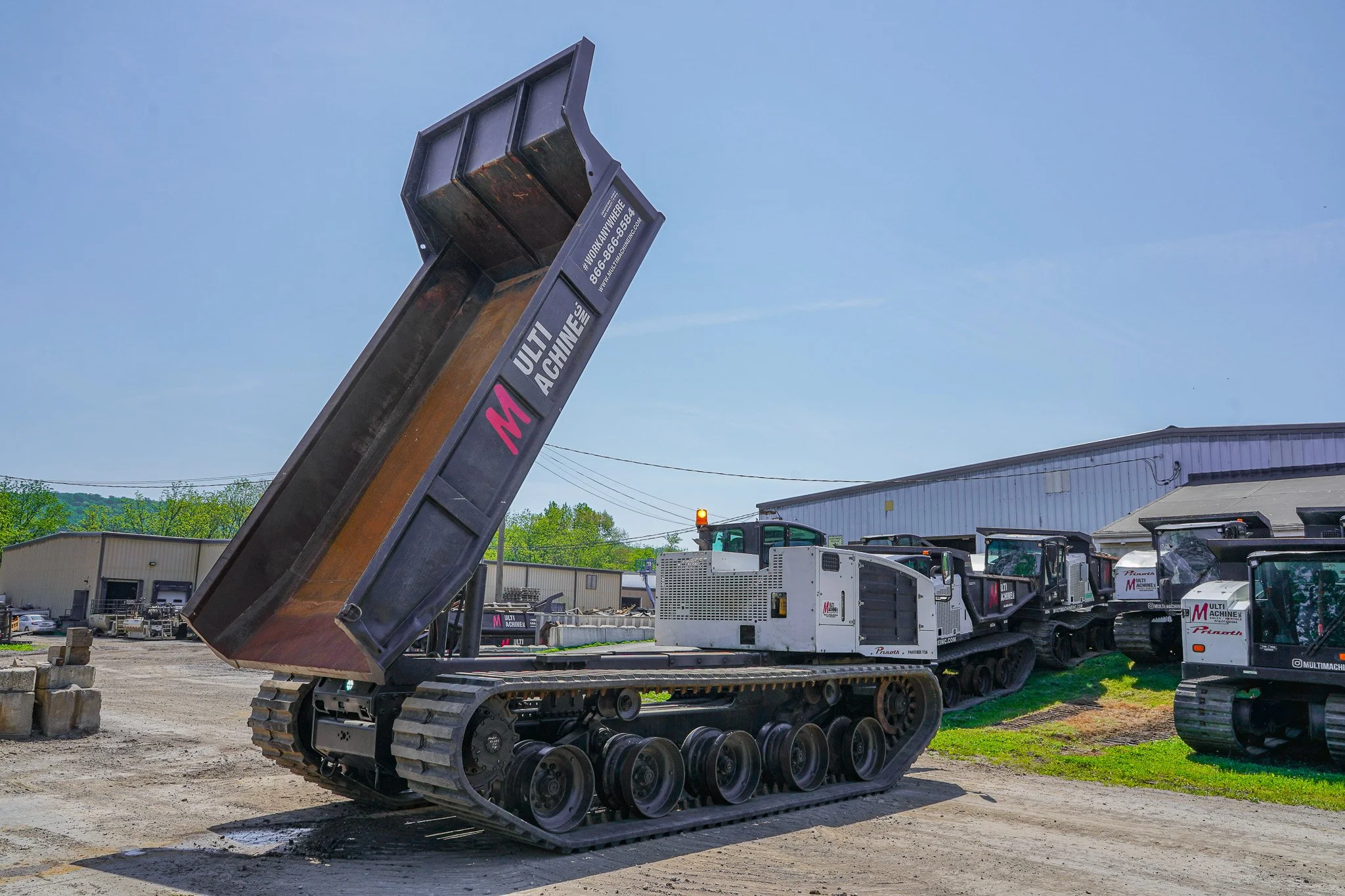

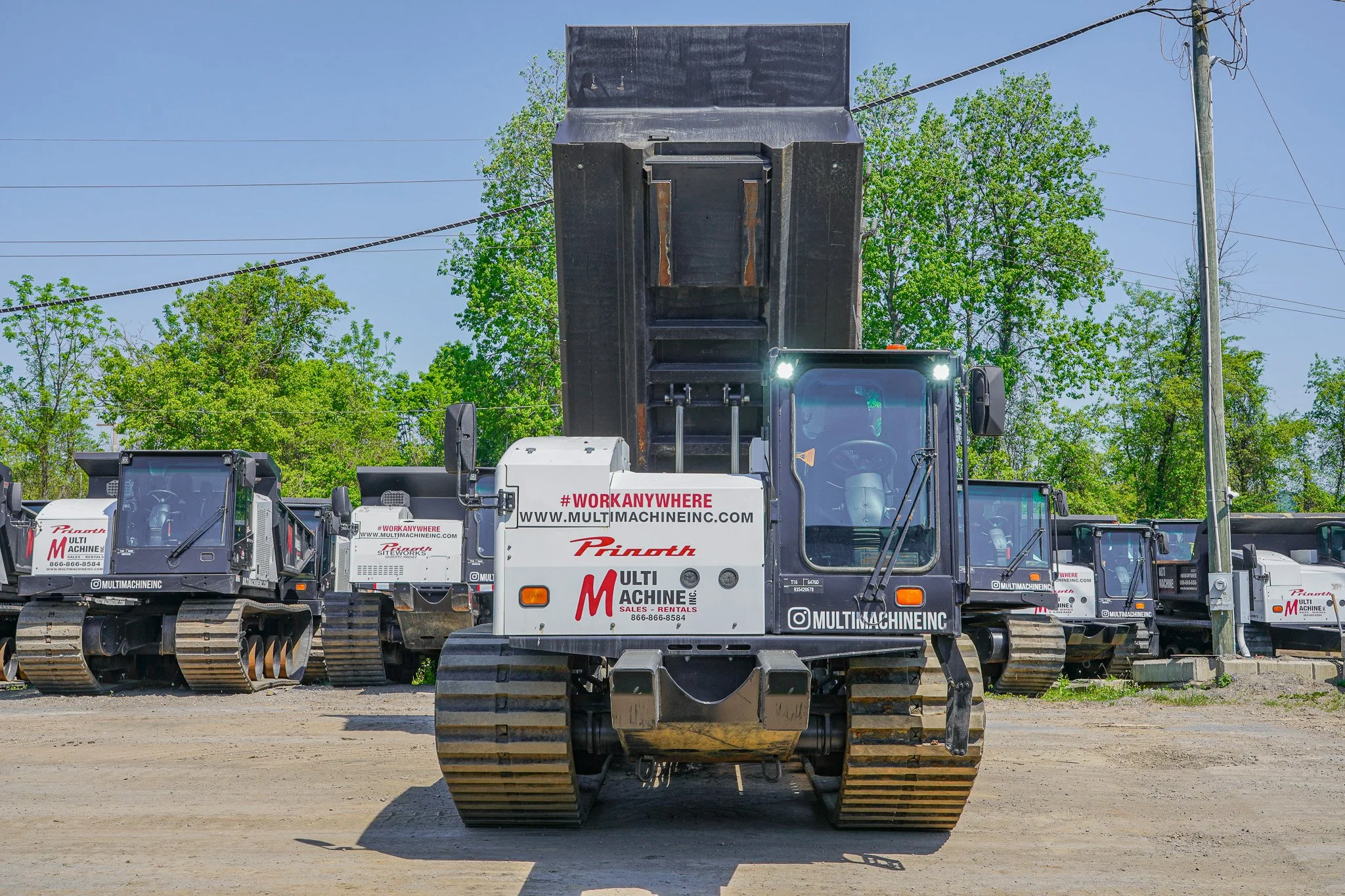

The Prinoth Panther T16 is an extremely versatile crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. The vehicles can be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is outfitted with a dump box and can carry 17 tons of material through any type of terrain. If you have any questions regarding purchase, rental, or anything else regarding this machine, don't hesitate to contact Multi Machine.
Hours: 253

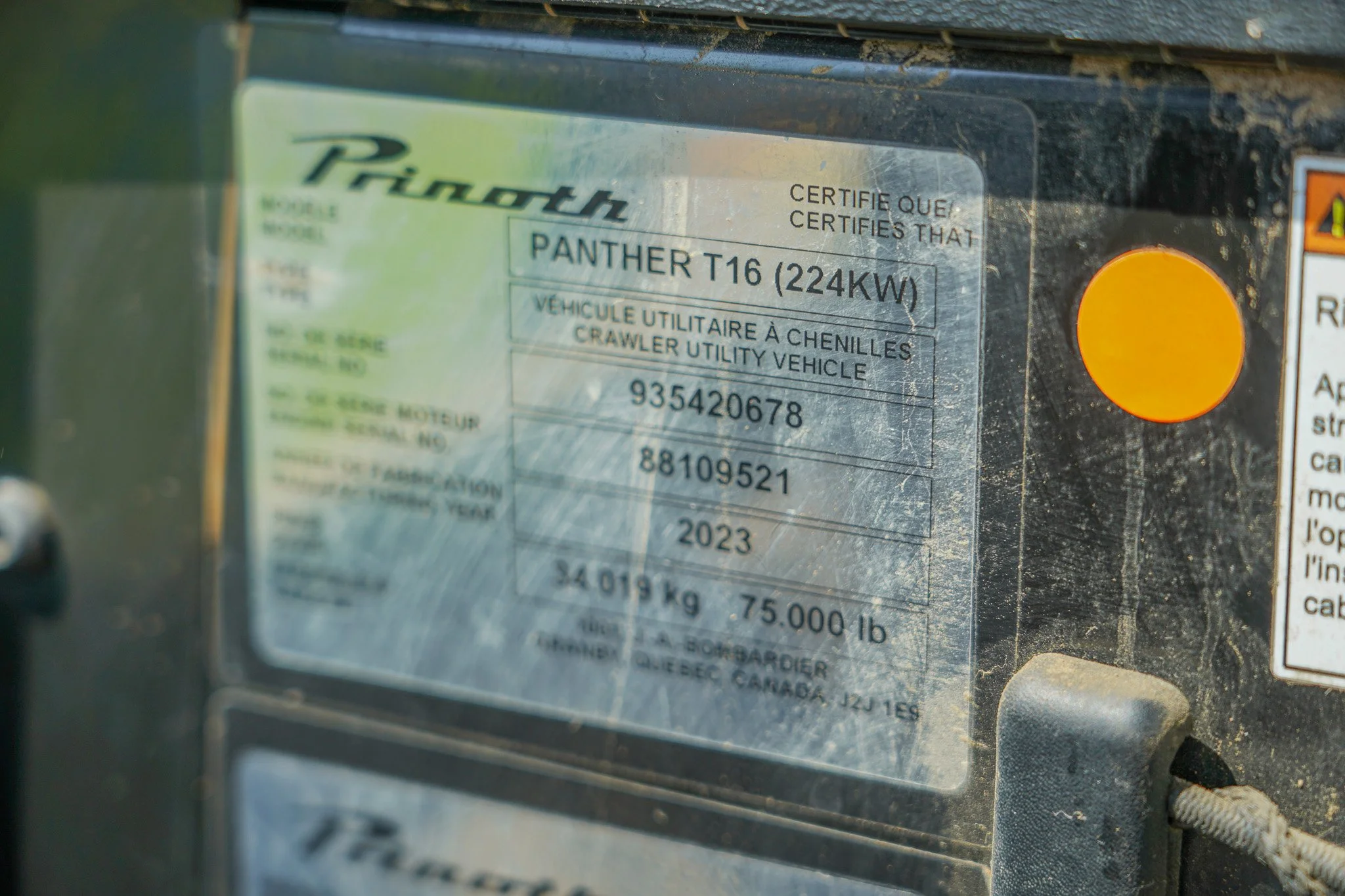

Serial #: 935420678
The Prinoth Panther T16 is an extremely versatile crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. The vehicles can be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is outfitted with a dump box and can carry 17 tons of material through any type of terrain. If you have any questions regarding purchase, rental, or anything else regarding this machine, don't hesitate to contact Multi Machine.
Hours: 253
Serial #: 935420678
The Prinoth Panther T16 is an extremely versatile crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. The vehicles can be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is outfitted with a dump box and can carry 17 tons of material through any type of terrain. If you have any questions regarding purchase, rental, or anything else regarding this machine, don't hesitate to contact Multi Machine.
Hours: 253
Serial #: 935420678
-
Machine Weight: 40,558 lbs.
Payload: 33,500 lbs.
Maximum Speed: 8 mph
Ground Pressure (Empty): 3.71 psi
Ground Pressure (Loaded): 6.87 psi

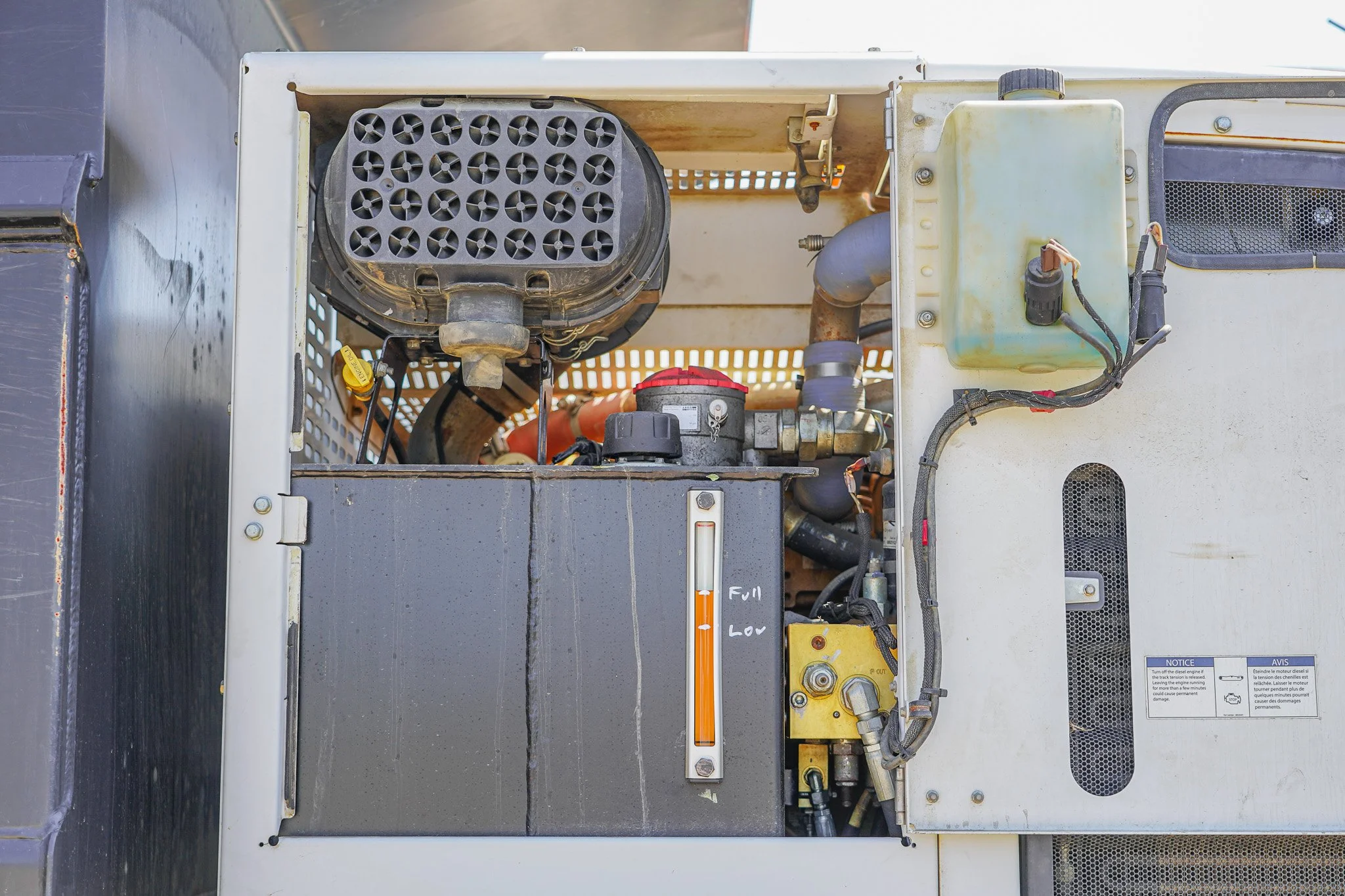

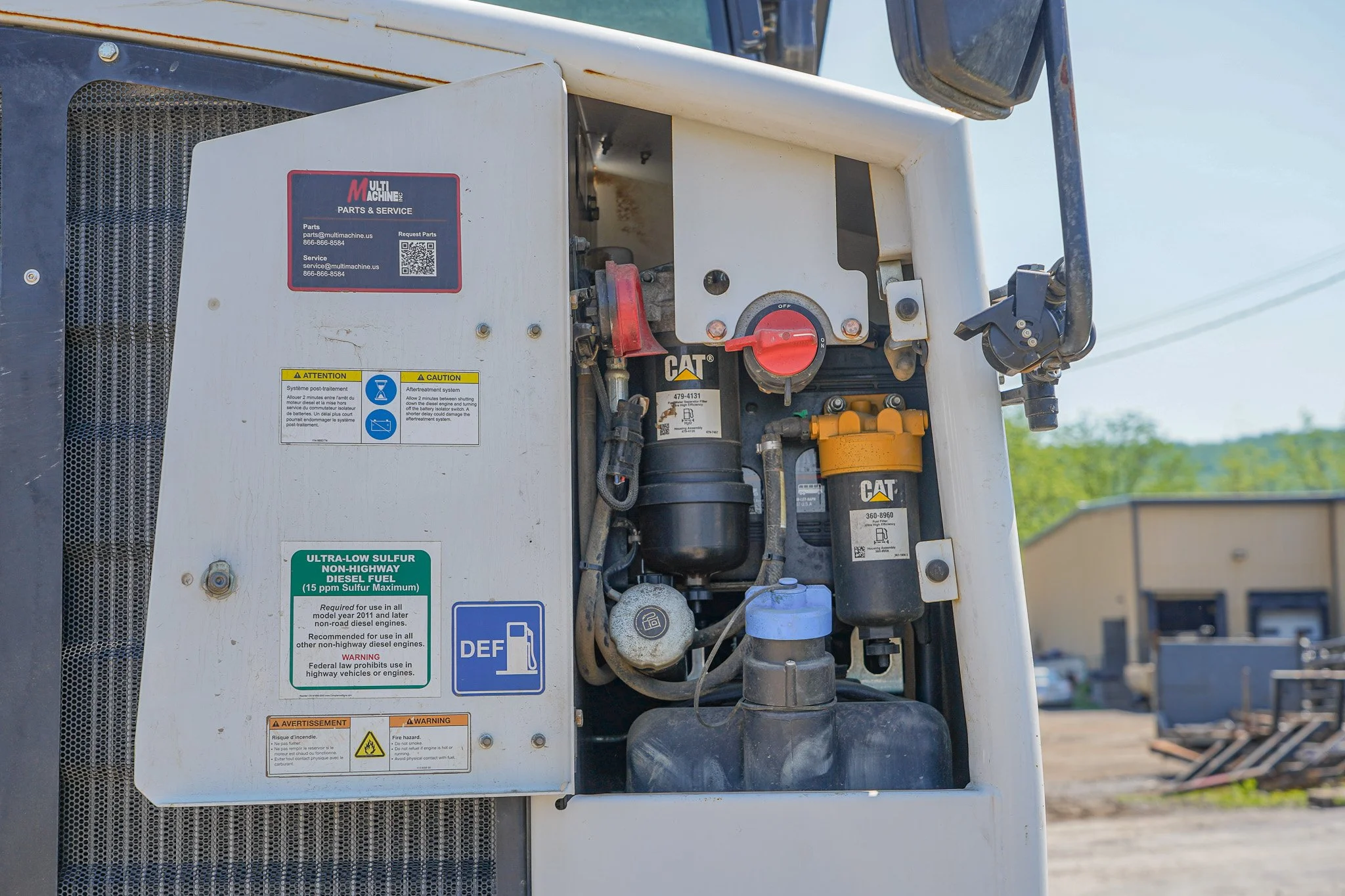

Engine: Caterpillar C7.1 Acert
Horsepower @ 2200 rpm: 275 hp
Torque @ 1400 rpm: 927 lb-ft
Fuel Tank Capacity: 86 Gallons
Uphill Gradeability: 31°
Side Hill Gradeability: 21.8°
Length: 26’2”
Width: 9’9”
Height: 10’
Ground Clearance 20"
-
Dump Box Capacity (Struck): 8.6 yd3
Dump Box Capacity (Heaped): 11.5 yd3
Dump Body Length: 177”
Box Width: 102”
Inner Box Width: 96”
Inner Box Height (Sides): 28”
Headboard Height: 57”
Dump Box Peak Height: 248"
