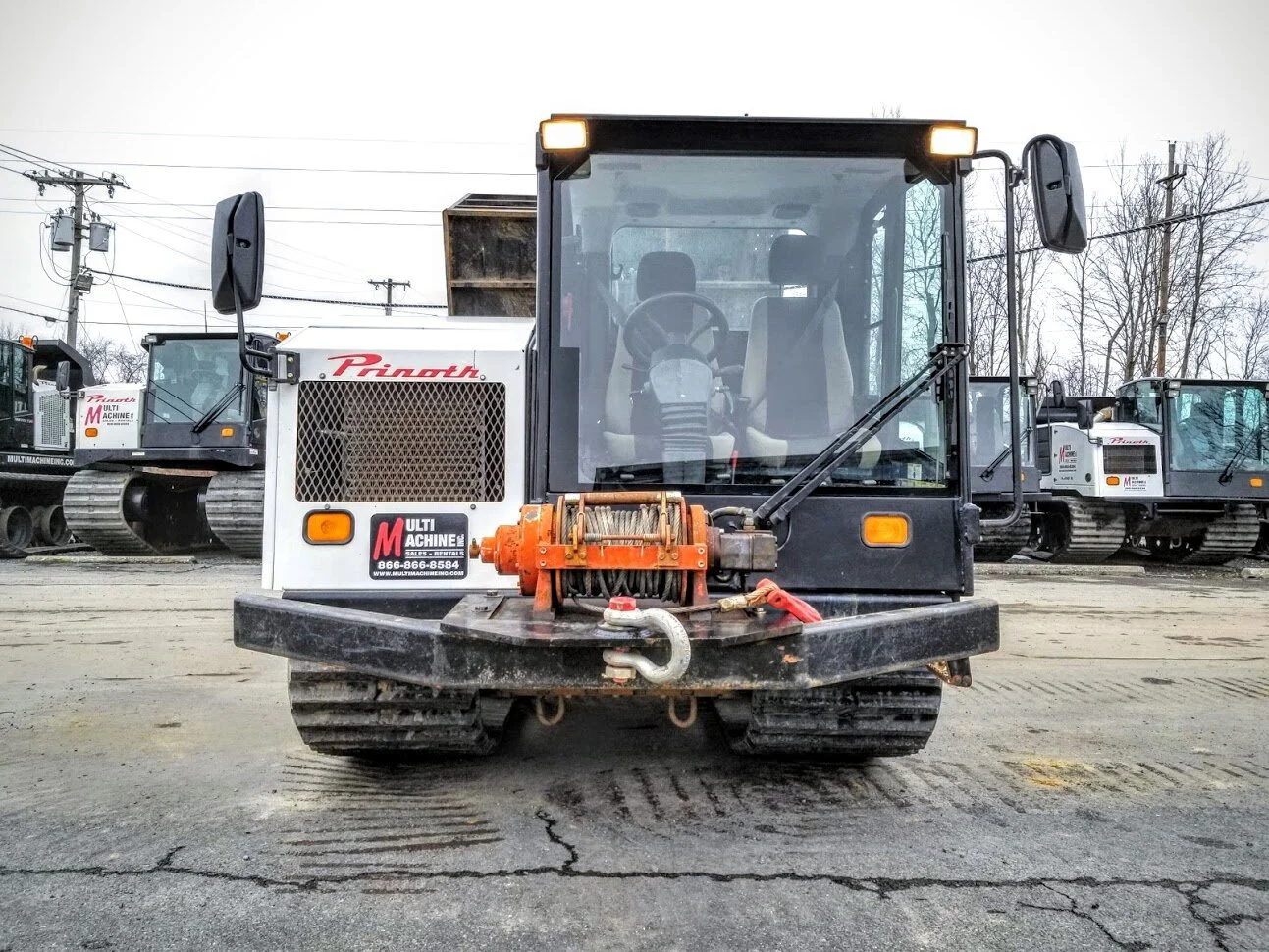

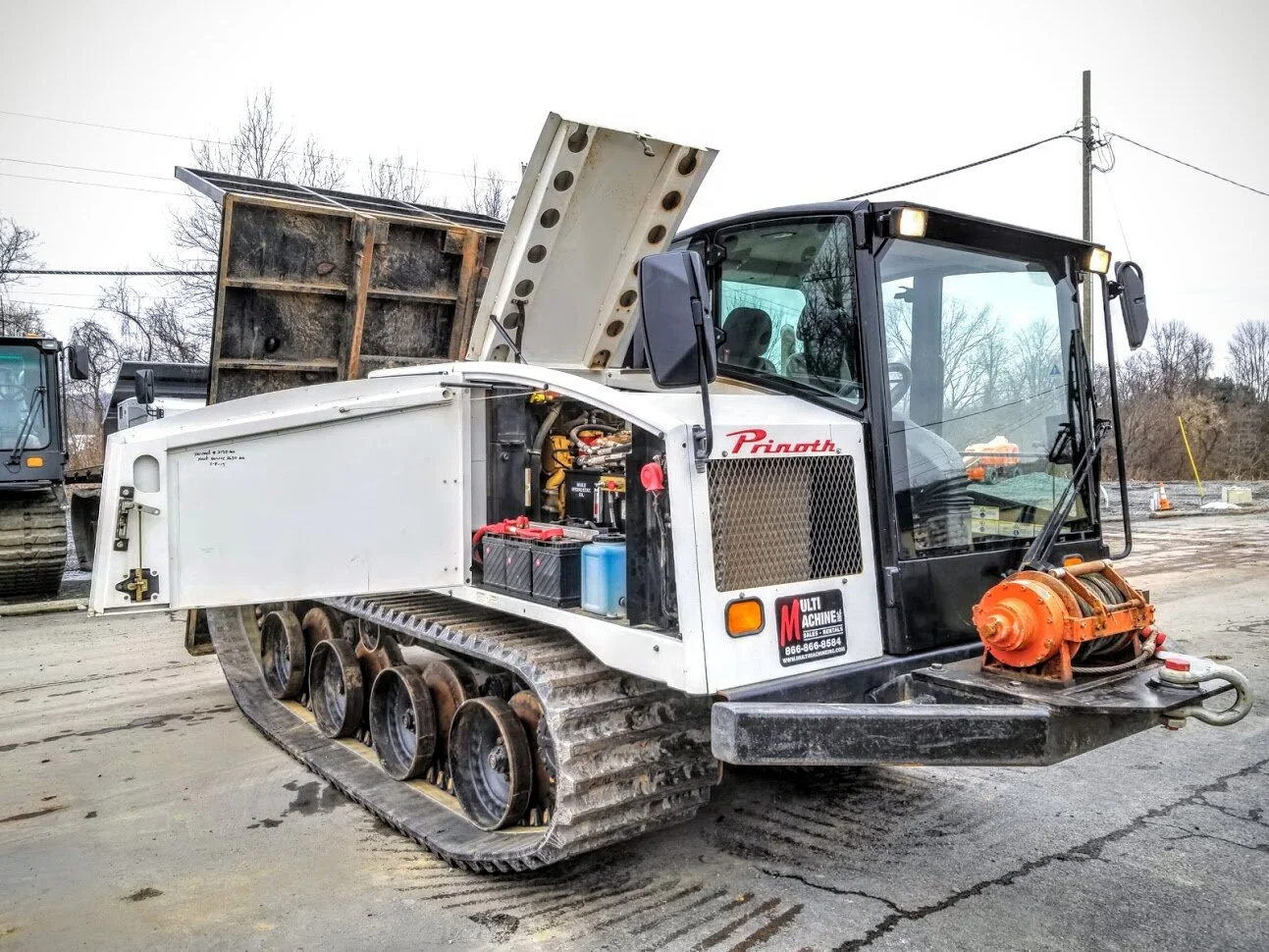

The Prinoth Panther T6 is an extremely versatile crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. The vehicles can be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is outfitted with a flatbed. For more information about purchasing or renting this machine, do not hesitate to call Multi Machine Inc.
Machine Specifications
Hours: 2130
Serial #: 935100049
Machine Capacity: 12,000 lbs.
Machine Weight: 18,693 lbs.
Length: 16’1”
Width: 8'
Height: 8’11”
Engine: Caterpillar C4.4 Turbo Diesel
Horsepower @ 2200 rpm: 143 hp
Torque @ 1400 rpm: 410 lb-ft
Max Speed: 9.3 mph
Fuel Tank Capacity: 46 gallons
Ground Clearance: 17"
Ground Pressure (Vehicle Only): 2.70 psi
Ground Pressure (Total Capacity): 4.60 psi
Uphill/Downhill Gradeability: 60% (31°)
Sidehill Gradeability: 40% (21.8°)
The Prinoth Panther T6 is an extremely versatile crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. The vehicles can be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is outfitted with a flatbed. For more information about purchasing or renting this machine, do not hesitate to call Multi Machine Inc.
Machine Specifications
Hours: 2130
Serial #: 935100049
Machine Capacity: 12,000 lbs.
Machine Weight: 18,693 lbs.
Length: 16’1”
Width: 8'
Height: 8’11”
Engine: Caterpillar C4.4 Turbo Diesel
Horsepower @ 2200 rpm: 143 hp
Torque @ 1400 rpm: 410 lb-ft
Max Speed: 9.3 mph
Fuel Tank Capacity: 46 gallons
Ground Clearance: 17"
Ground Pressure (Vehicle Only): 2.70 psi
Ground Pressure (Total Capacity): 4.60 psi
Uphill/Downhill Gradeability: 60% (31°)
Sidehill Gradeability: 40% (21.8°)
