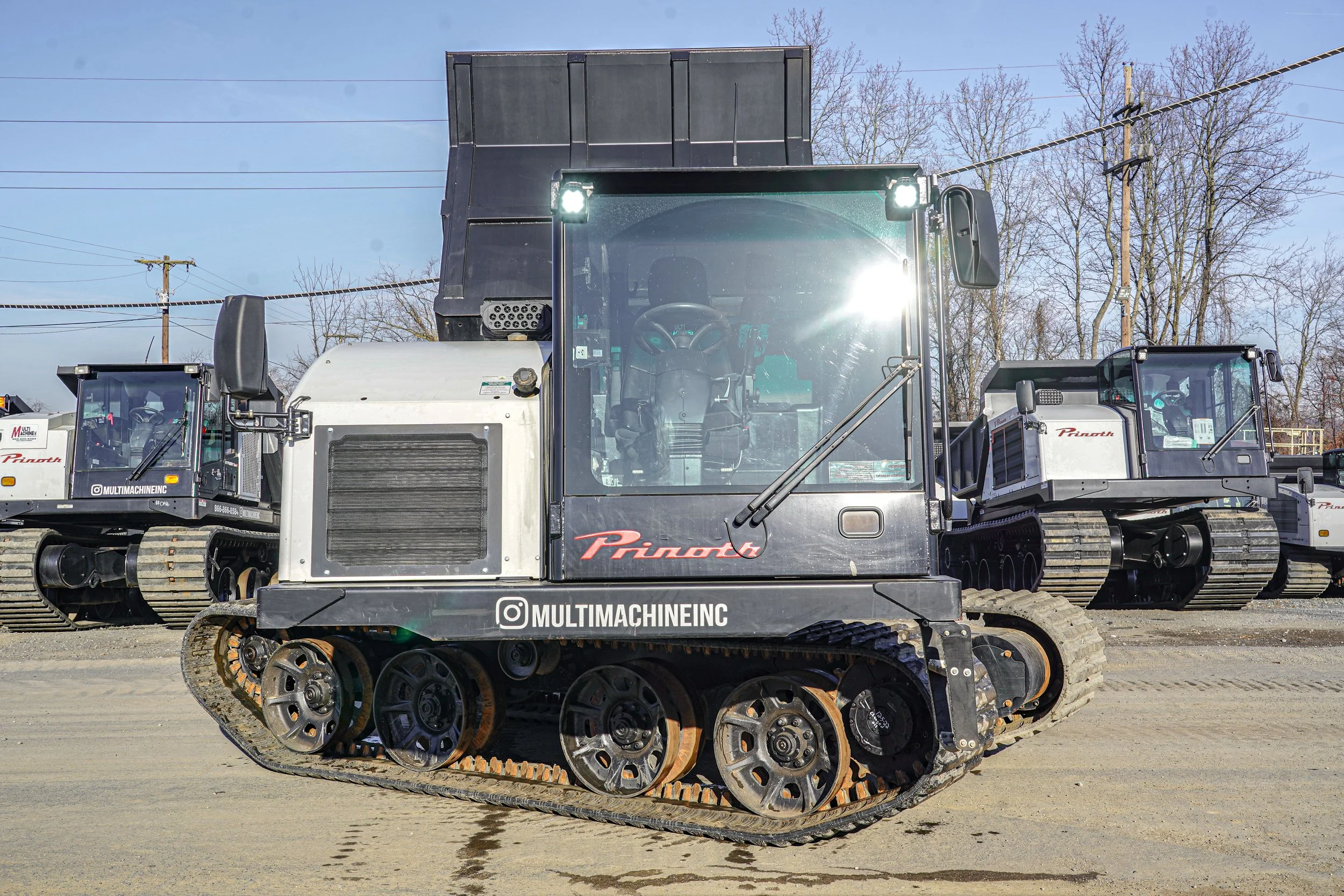

2020 Prinoth Panther T7R - Stock #5920D
The Prinoth Panther T7R (R for rotating) is an extremely versatile crawler carrier. This tracked dumper has the ability to rotate the cab and body 360 degrees. They also have extremely low ground pressure, enabling them to operate in any type of area. Prinoth Panther T7R’s come equipped with a 6yd dump body which can hold 15,500 lbs. The dump body is lined with Hardox steel, which provides significant reinforcement, ensuring it gets the job done. It also features one of the best undercarriages on the market, with bigger bogey wheels and track tensioning technology.
For more information about purchasing or renting this machine, do not hesitate to contact Multi Machine.
Hours: 794
Serial #: 935150017
-
Payload: 15,500 lbs.
Engine: Caterpillar C4.4
Fuel Tank Capacity: 53 gallons
Horsepower @ 2200 rpm: 201 HP
Torque @ 1400 rpm: 608 lb-ft
Maximum Speed: 8.1 mph
Turning Radius: 0°
Ground Pressure (Empty): 3 PSI
Ground Pressure (Loaded): 4.9 PSI
Length: 17’3”
Width: 8’3”
Height: 9’2”
Track Height: 36”
Ground Clearance: 15”
Gradeability (Uphill/Downhill): 33°
Gradeability (Side hill): 33°
Weight: 23,259 lbs.
-
Capacity: 6yd3
Box Width: 98"
Inner Box Width: 92"
Inner Box Height (Sides): 26.5”
Headboard Height: 54”
Dump Box Peak Height: 207”
Maximum Dump Angle: 60°
