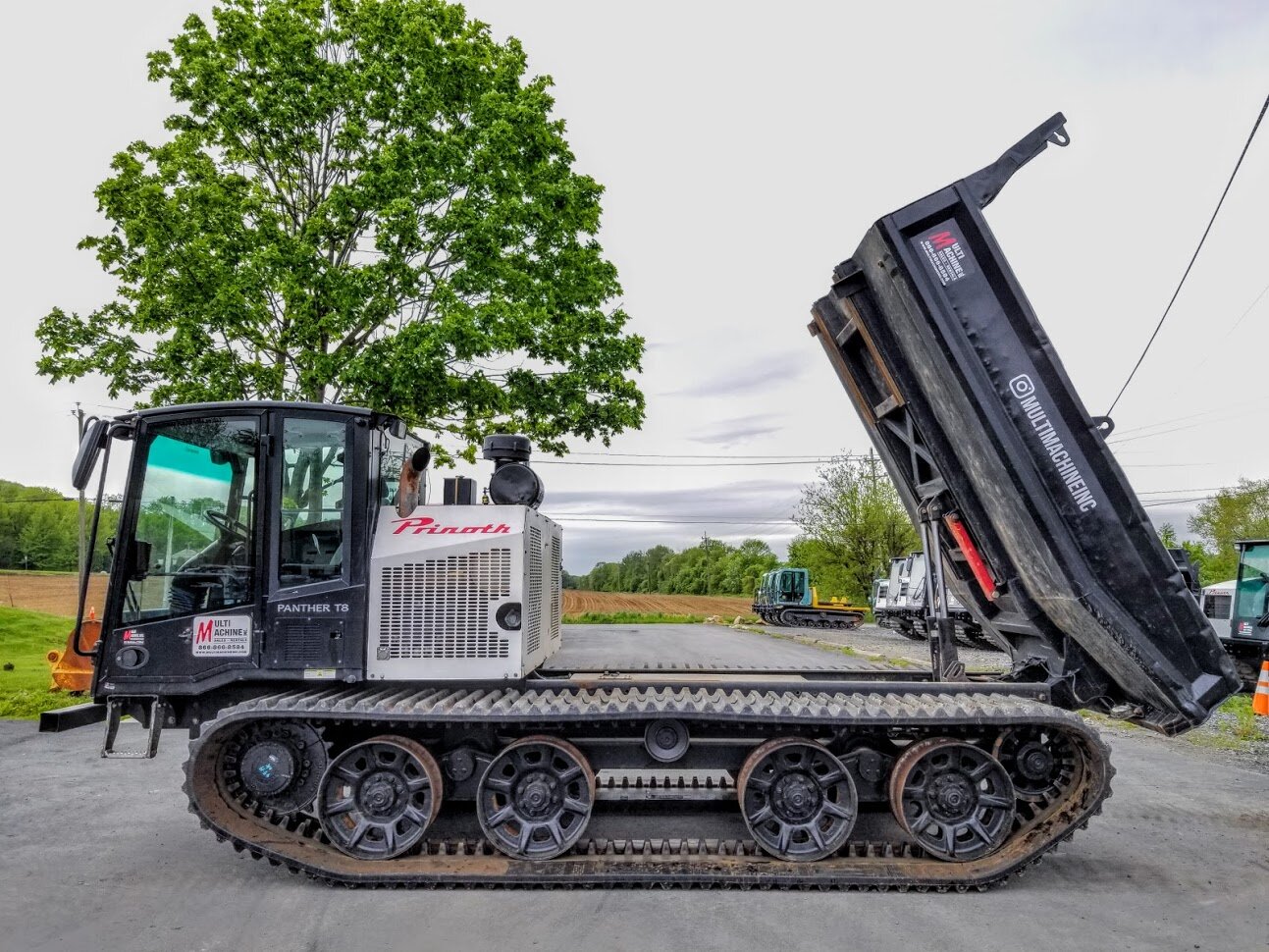

The Prinoth Panther T8 is an extremely versatile rubber tracked crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. Their 34-inch-wide chassis allows them to be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is outfitted with a dump box, enabling you to transport 8 tons of material through some of the roughest terrain. For more information about purchasing or renting this machine, do not hesitate to call Multi Machine Inc.
Machine Specifications
Hours: 2699
Serial #: 935200066
Machine Weight: 23,910 lbs.
Machine Capacity: 16,000 lbs.
Engine: Caterpillar C7.1 Acert
Horsepower @ 2200 rpm: 225 hp
Torque @ 1400 rpm: 758 lb-ft
Max Speed: 6.2 mph
Fuel Tank Capacity: 65 Gallons
Ground Pressure (Empty): 2.80 psi
Ground Pressure (Loaded): 4.70 psi
Ground Clearance: 17”
Length: 18’7”
Width: 8'
Height: 8’11”
Dump Box Specifications
Dump Box Capacity (Struck): 4.3 yd3
Dump Box Capacity (Heaped): 5.75 yd3
Dump Body Length: 125”
Box Width: 89”
Inner Box Width: 83”
Inner Box Height (Sides): 22”
Headboard Height: 53”
Dump Box Peak Height: 169”
Maximum Dump Angle: 64°
