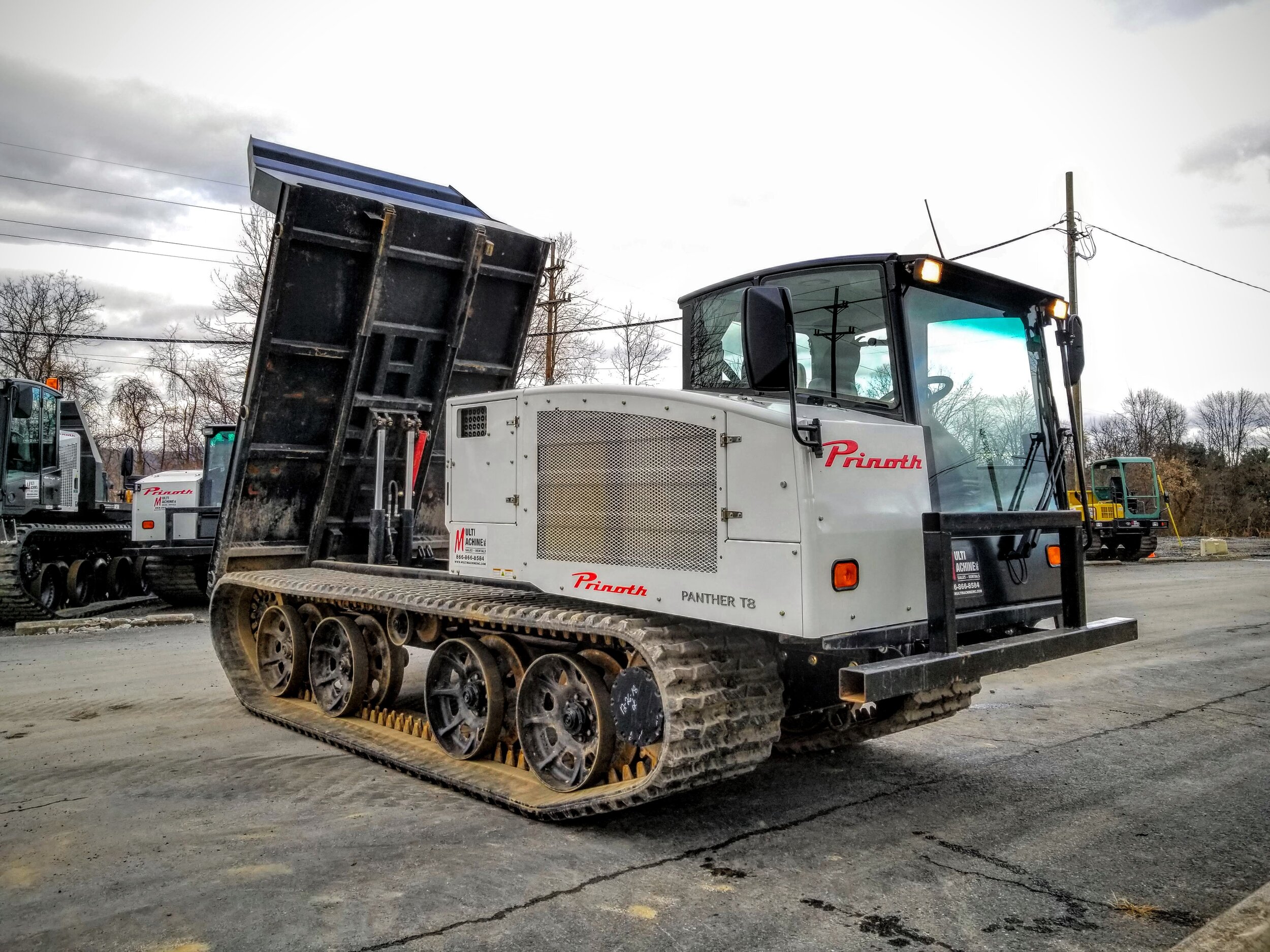

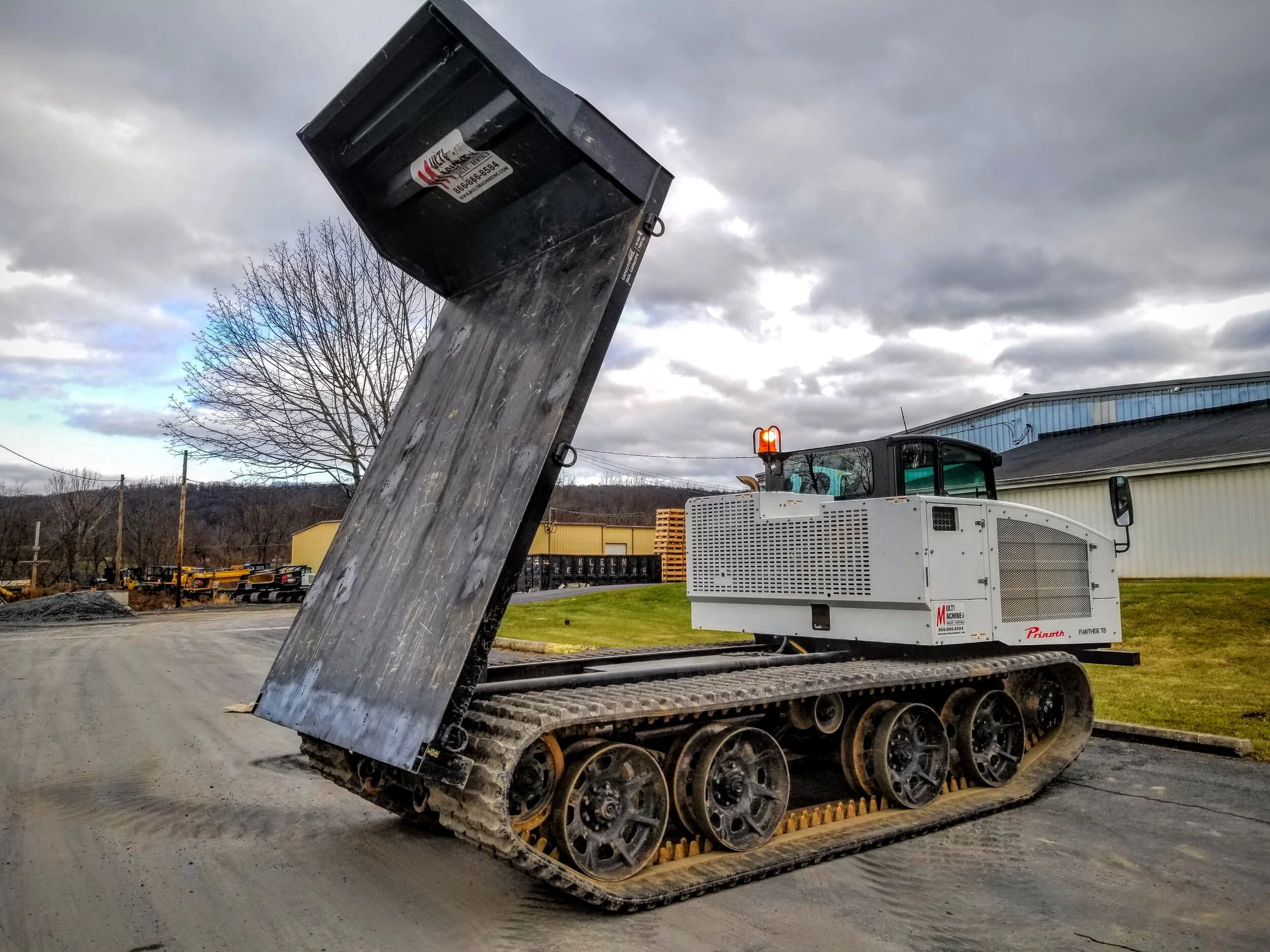

The Prinoth Panther T8 is an extremely versatile rubber tracked crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. Their 34-inch-wide chassis allows them to be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is outfitted with a dumping flatbed and is capable of transporting loads of up to 8 tons. For more information about purchasing or renting this machine, do not hesitate to call Multi Machine Inc.
Machine Specifications
Hours: 180
Serial #: 935200688
Machine Weight: 22,000 lbs.
Machine Capacity: 16,000 lbs.
Engine: Caterpillar C7.1 Acert
Horsepower @ 2200 rpm: 225 hp
Torque @ 1400 rpm: 758 lb-ft
Max Speed: 6.2 mph
Fuel Tank Capacity: 65 Gallons
Ground Pressure (Empty): 2.22 psi
Ground Pressure (Loaded): 4.10 psi
Ground Clearance: 17”
Length: 18’5”
Width: 8”
Height: 8’11”
Flat Bed Dimensions
Deck Length: 125”
Deck Width: 89”
Headboard Height: 53.5
Deck Thickness: 4.25”
