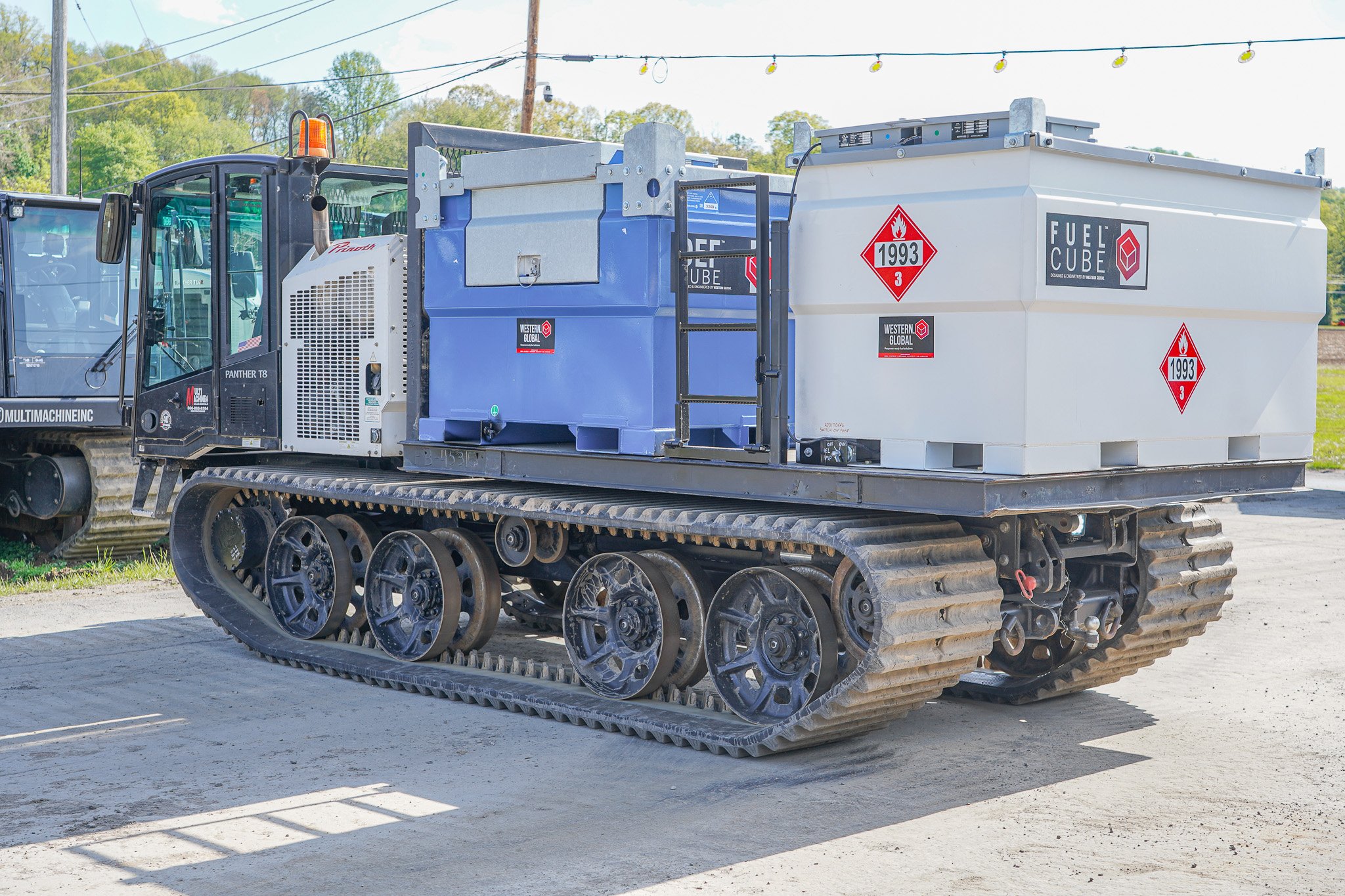

Machine Weight: 23,500 lbs.
Machine Capacity: 16,000 lbs.

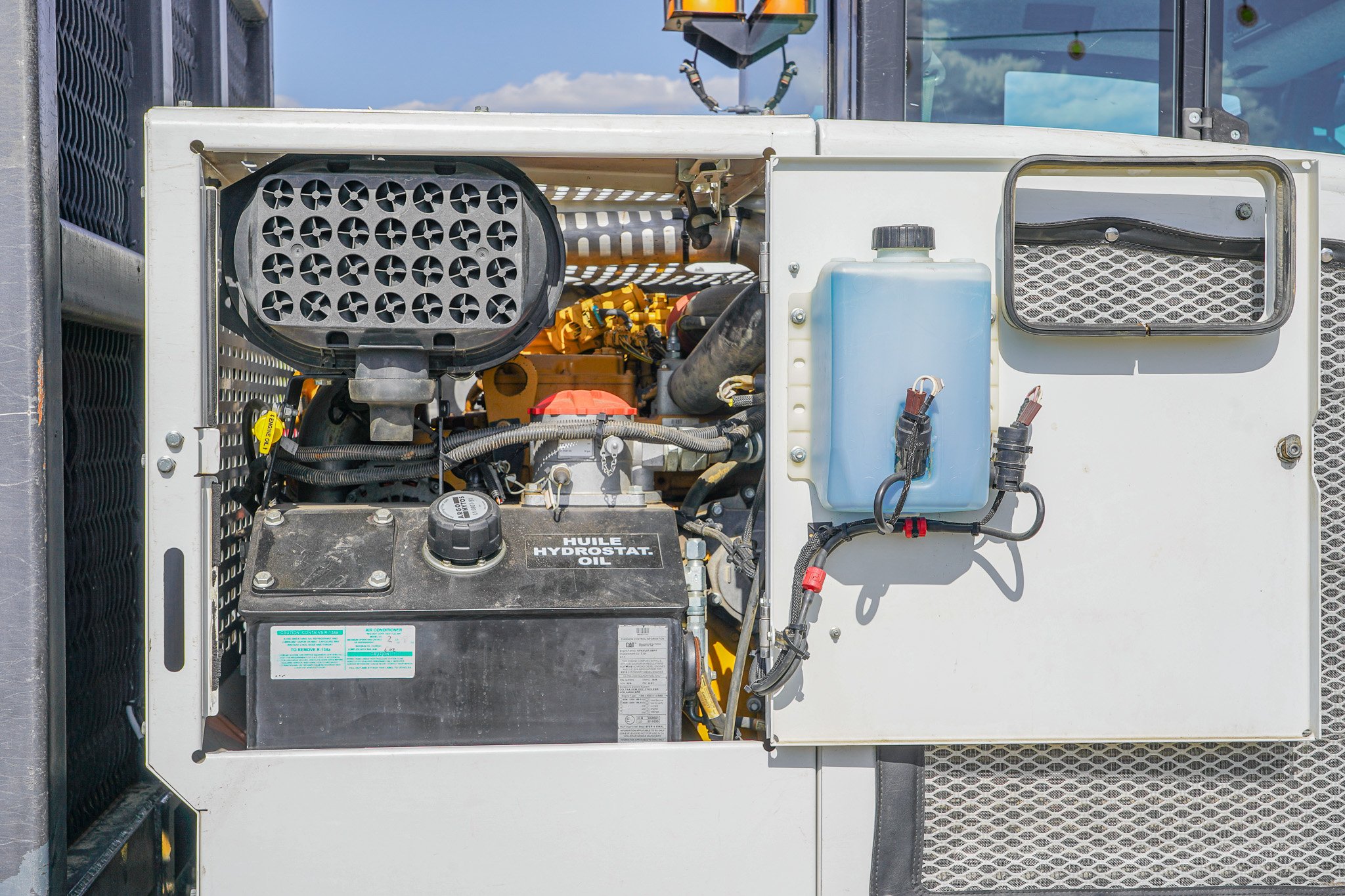

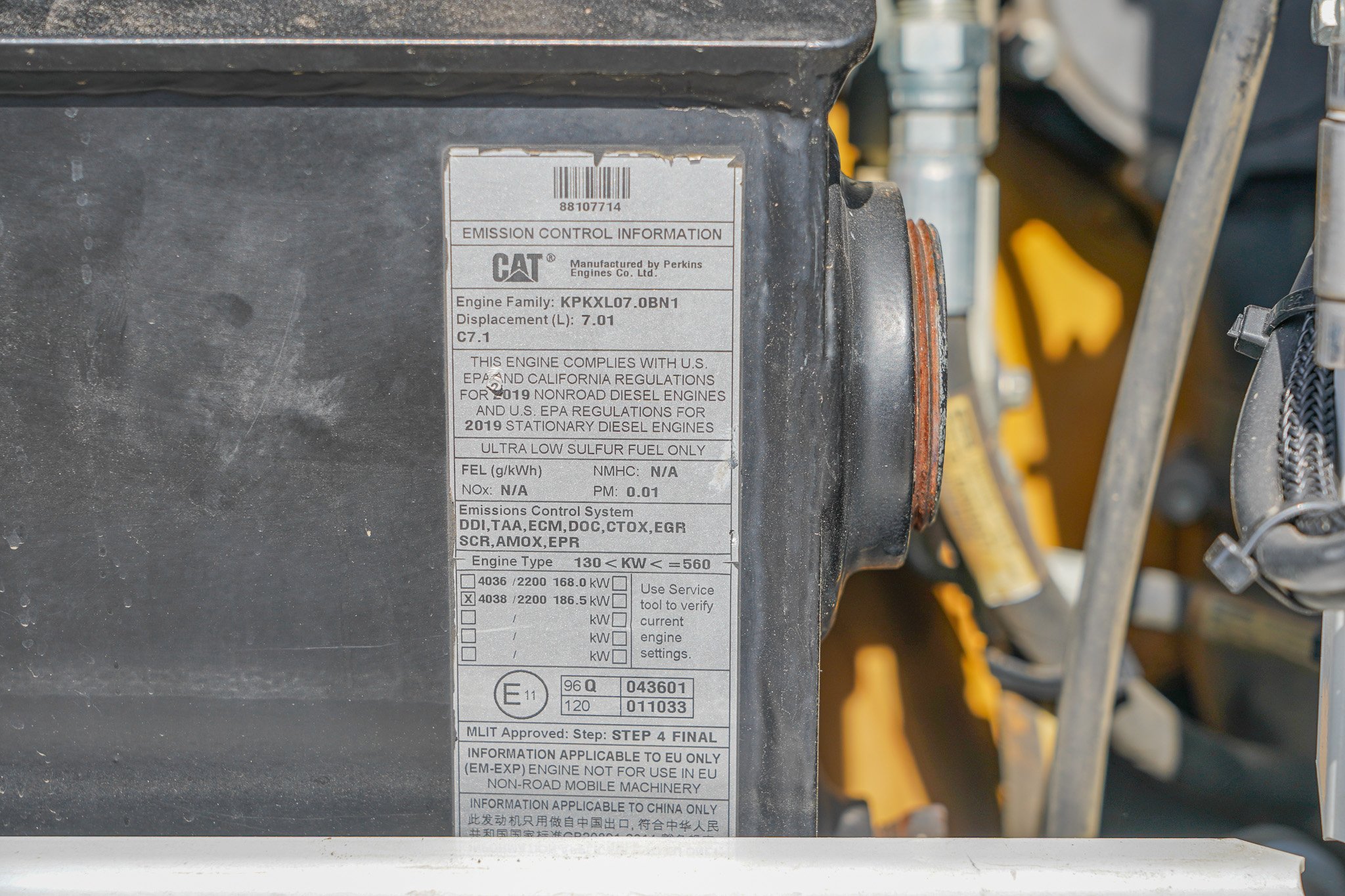

Engine: Caterpillar C7.1 Acert
Horsepower @ 2200 rpm: 225 hp
Torque @ 1400 rpm: 758 lb-ft
Max Speed: 6.2 mph
Fuel Tank Capacity: 65 Gallons
Ground Pressure (Empty): 2.22 psi
Ground Pressure (Loaded): 4.10 psi
Ground Clearance: 17”
Length: 21’5”
Width: 8'
Height: 9’6”
Bed Rail Height: 52”
-

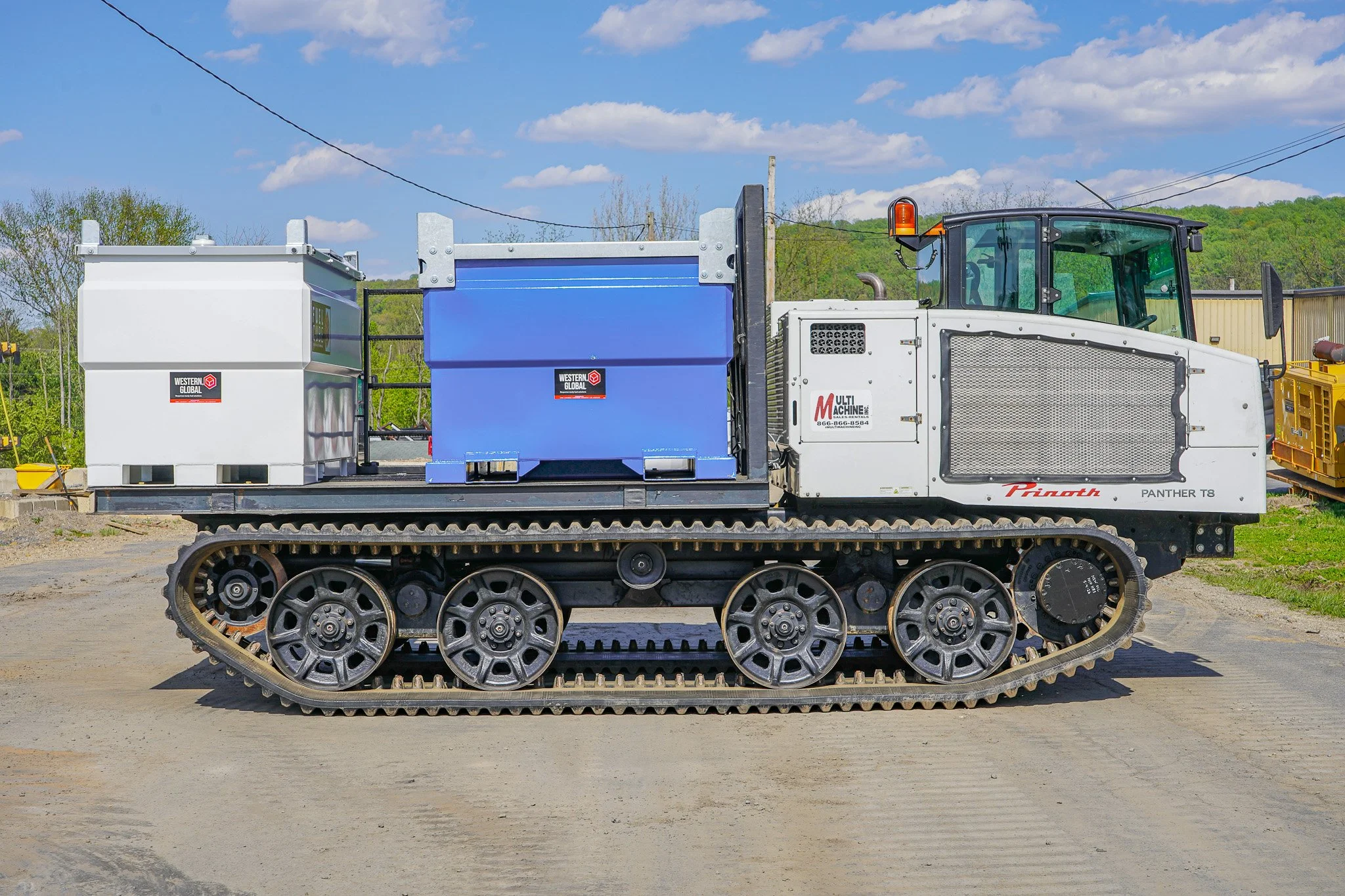

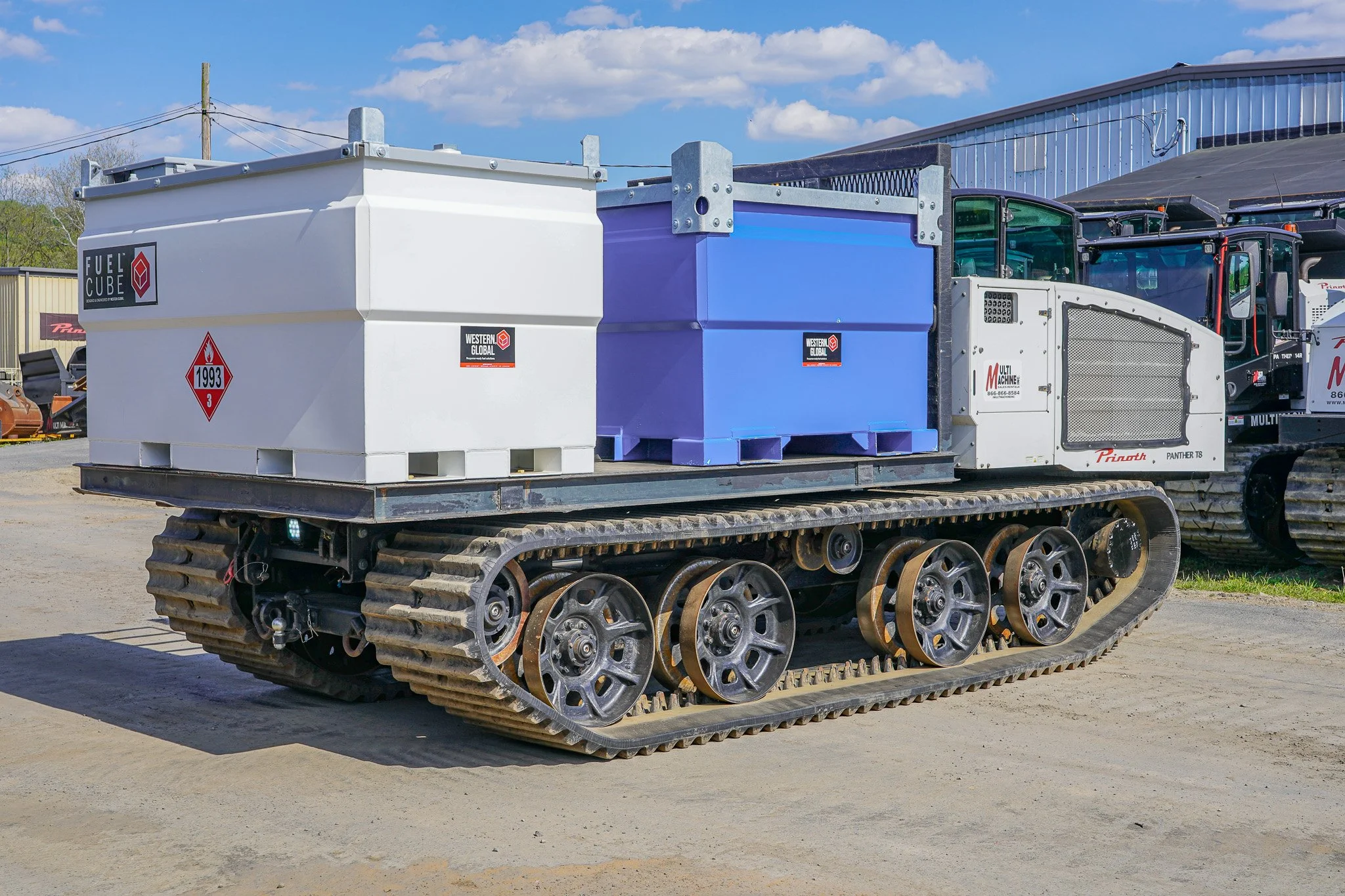

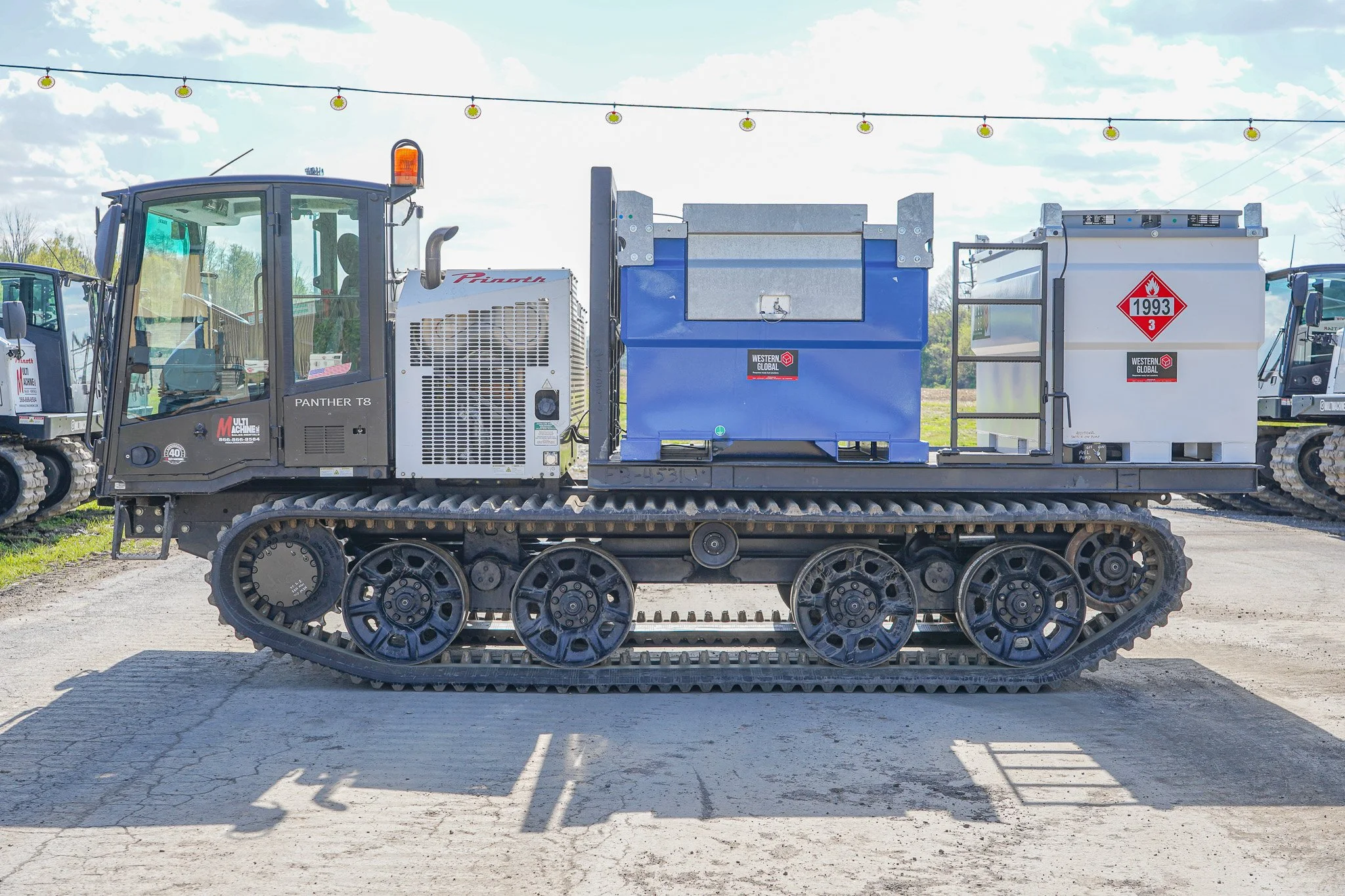

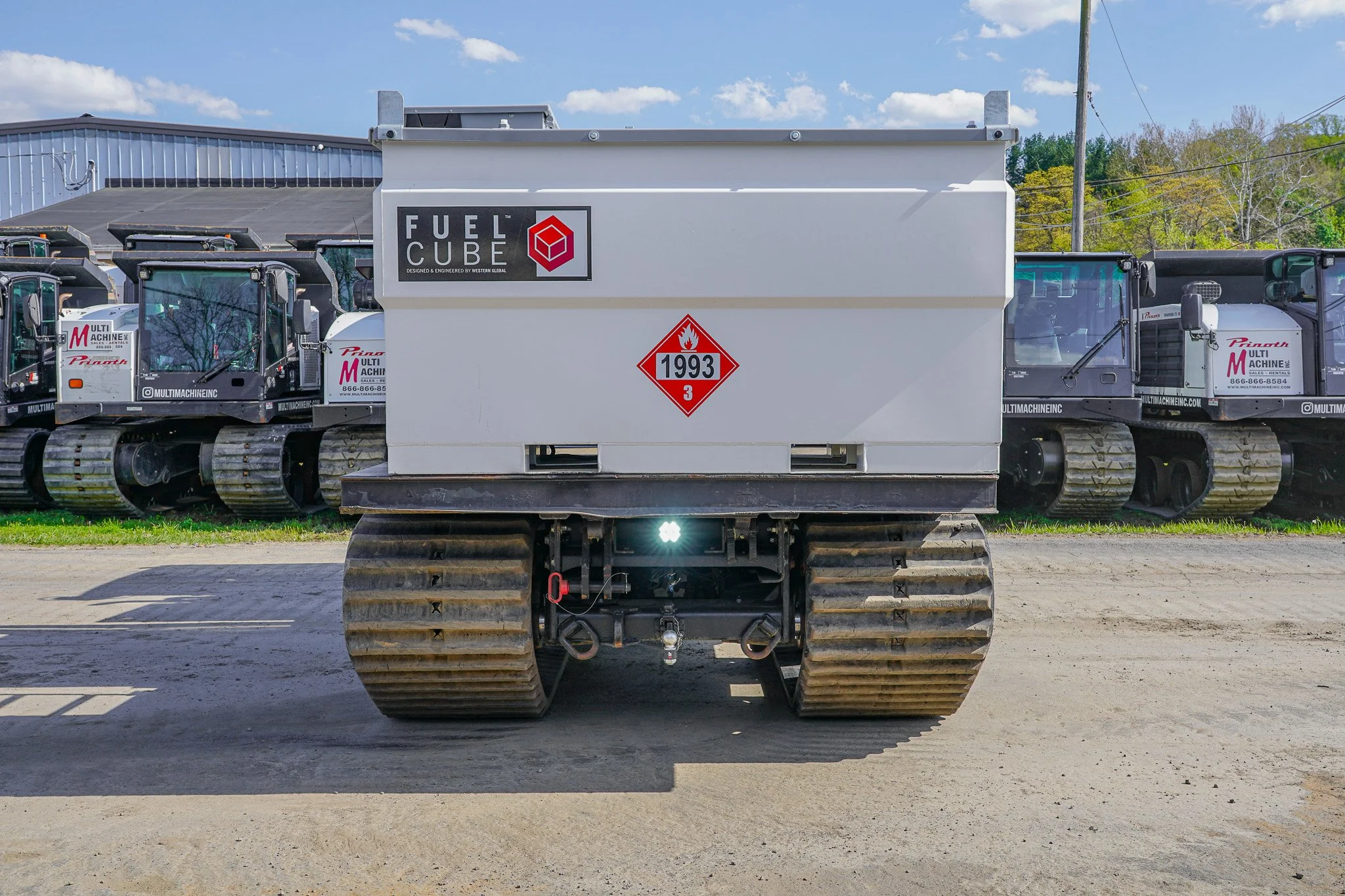

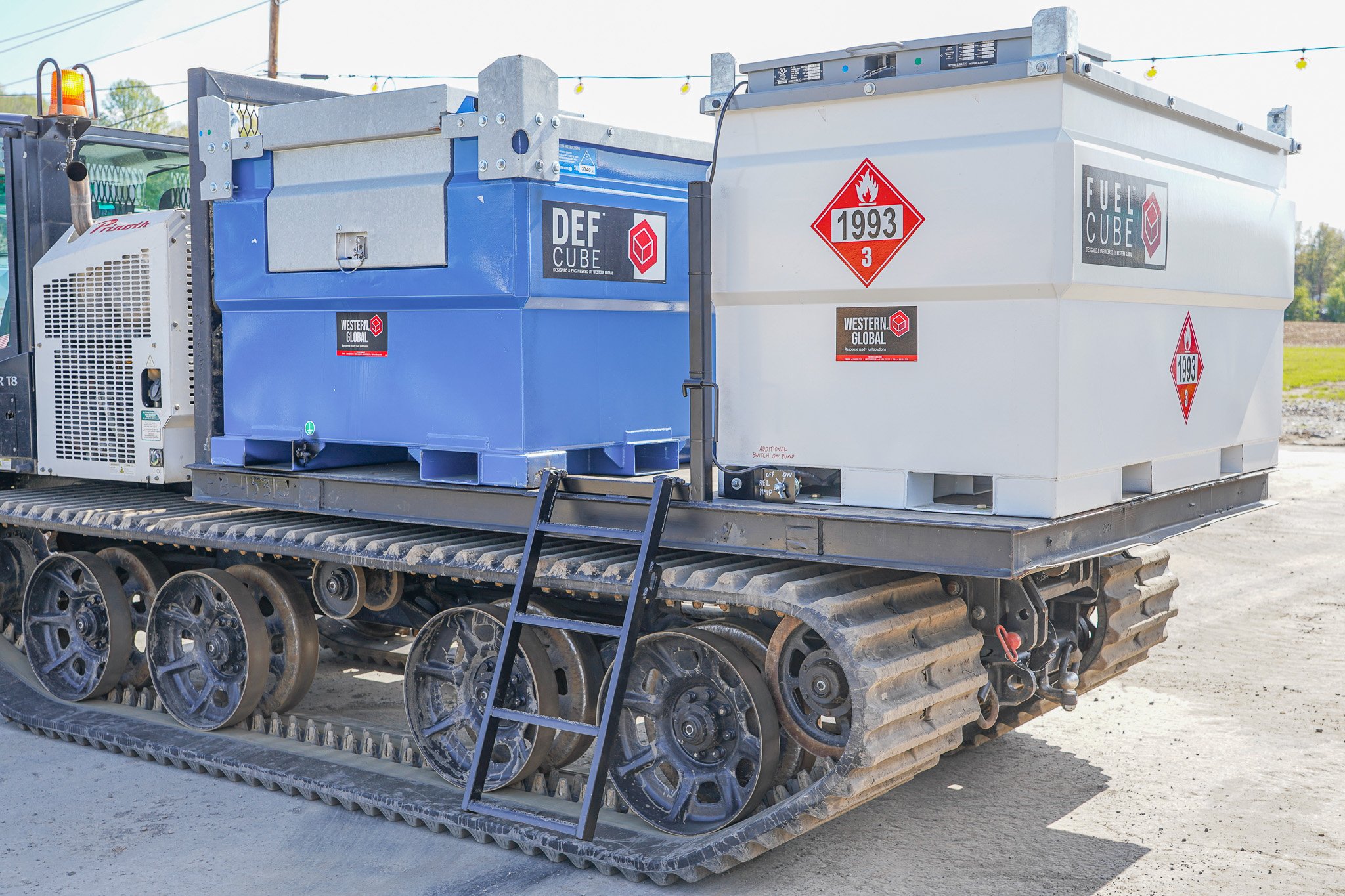

Model: Western FuelCube FCP1000
Tank Capacity: 1,016 US GAL
Weight (Empty): 2,760 lbs
Weight (Full): 11,239 lbs
Length: 91”
Width: 87”
Height: 47”
