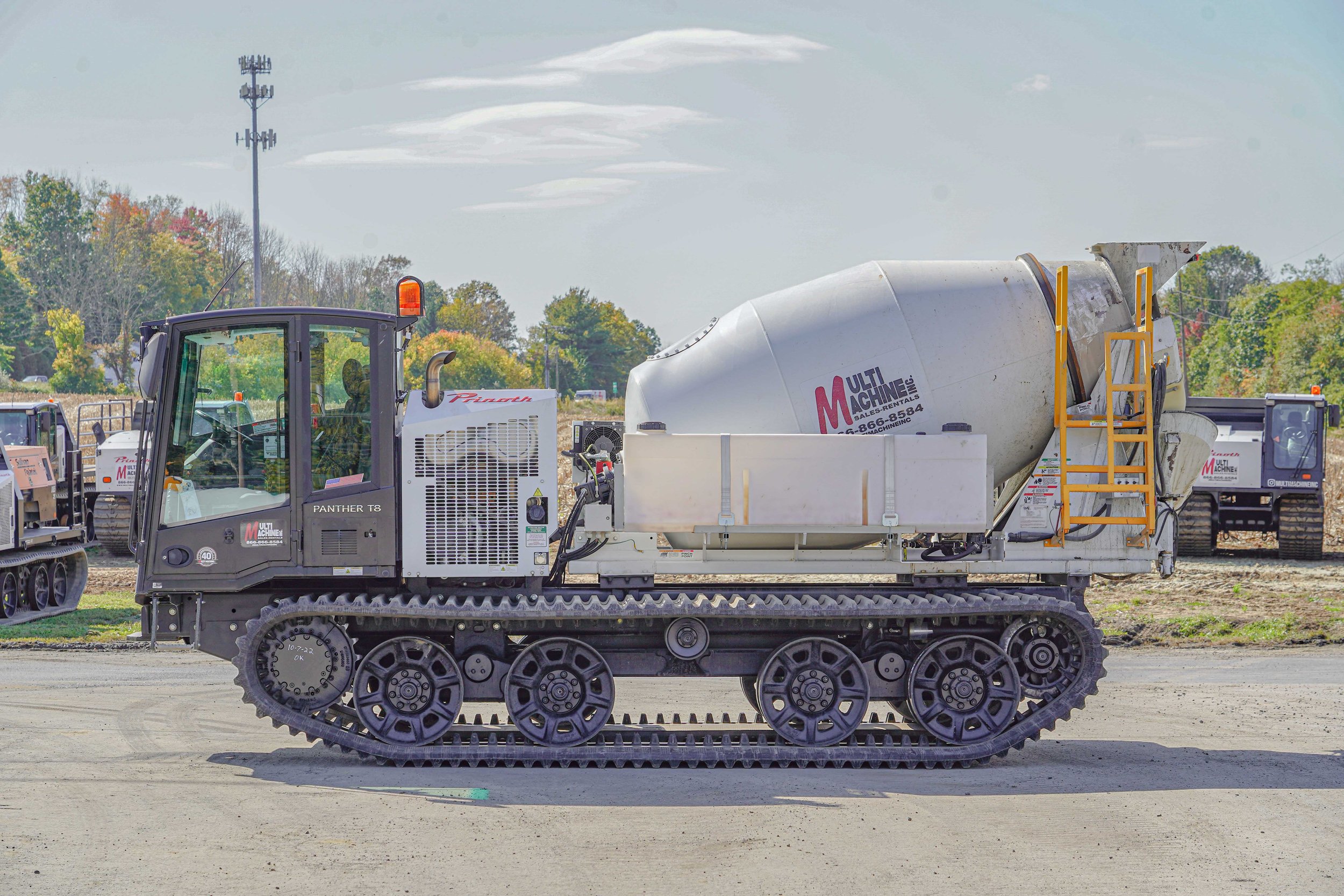

2020 Prinoth Panther T8 - Stock #5938D
The Prinoth Panther T8 is an extremely versatile rubber tracked crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. Their 34-inch-wide chassis allows them to be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is outfitted with a 3.5yd concrete mixer with a planetary gear reduced drive, a hydraulic drive system and a self-contained water system. Scroll down for more details on this set up, or for information about purchasing or renting this machine, do not hesitate to call Multi Machine Inc.
Hours: 149
Serial #: 935200840
The Prinoth Panther T8 is an extremely versatile rubber tracked crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. Their 34-inch-wide chassis allows them to be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is outfitted with a 3.5yd concrete mixer with a planetary gear reduced drive, a hydraulic drive system and a self-contained water system. Scroll down for more details on this set up, or for information about purchasing or renting this machine, do not hesitate to call Multi Machine Inc.
Hours: 149
Serial #: 935200840
The Prinoth Panther T8 is an extremely versatile rubber tracked crawler carrier with a truck inspired chassis. With very low ground pressure, loaded and unloaded, these machines are designed to go nearly anywhere without much effort. Their 34-inch-wide chassis allows them to be outfitted with a number of different implements, making them an ideal platform for many applications. This crawler carrier is outfitted with a 3.5yd concrete mixer with a planetary gear reduced drive, a hydraulic drive system and a self-contained water system. Scroll down for more details on this set up, or for information about purchasing or renting this machine, do not hesitate to call Multi Machine Inc.
Hours: 149
Serial #: 935200840
-
Machine Weight: 25,680 lbs.
Machine Capacity: 16,000 lbs.
Engine Caterpillar: C7.1 Acert
Horsepower @ 2200 rpm: 225 hp
Torque @ 1400 rpm: 758 lb-ft
Max Speed: 6.2 mph
Fuel Tank Capacity: 65 Gallons
Ground Pressure (Empty): 2.22 psi
Ground Pressure (Loaded): 4.10 psi
Ground Clearance: 17”
Length: 20’6”
Width: 8'
Height: 9’8”
-
Drive
Planetary gear reduced drive
Hydraulic motor with 5000 psi maximum operating pressure
Hydraulic pump capable of generating 3000 psi
Hydraulic reservoir with 18-gallon capacity
Drum
1/4-inch thick, spun-steel drumhead with reinforced, machined flange
3.5 Yard Capacity
Water System
80-gallon water system for slump control and wash out
Chute
24-inch-wide discharge chute tapering to 12-inches wide on a rotating pedestal
Three Chutes provide total reach of 12 feet
Charging Hopper
Steel charge hopper, with 24” x 22” opening
