Machine Weight: 27,920 lbs.
Machine Capacity: 16,000 lbs.

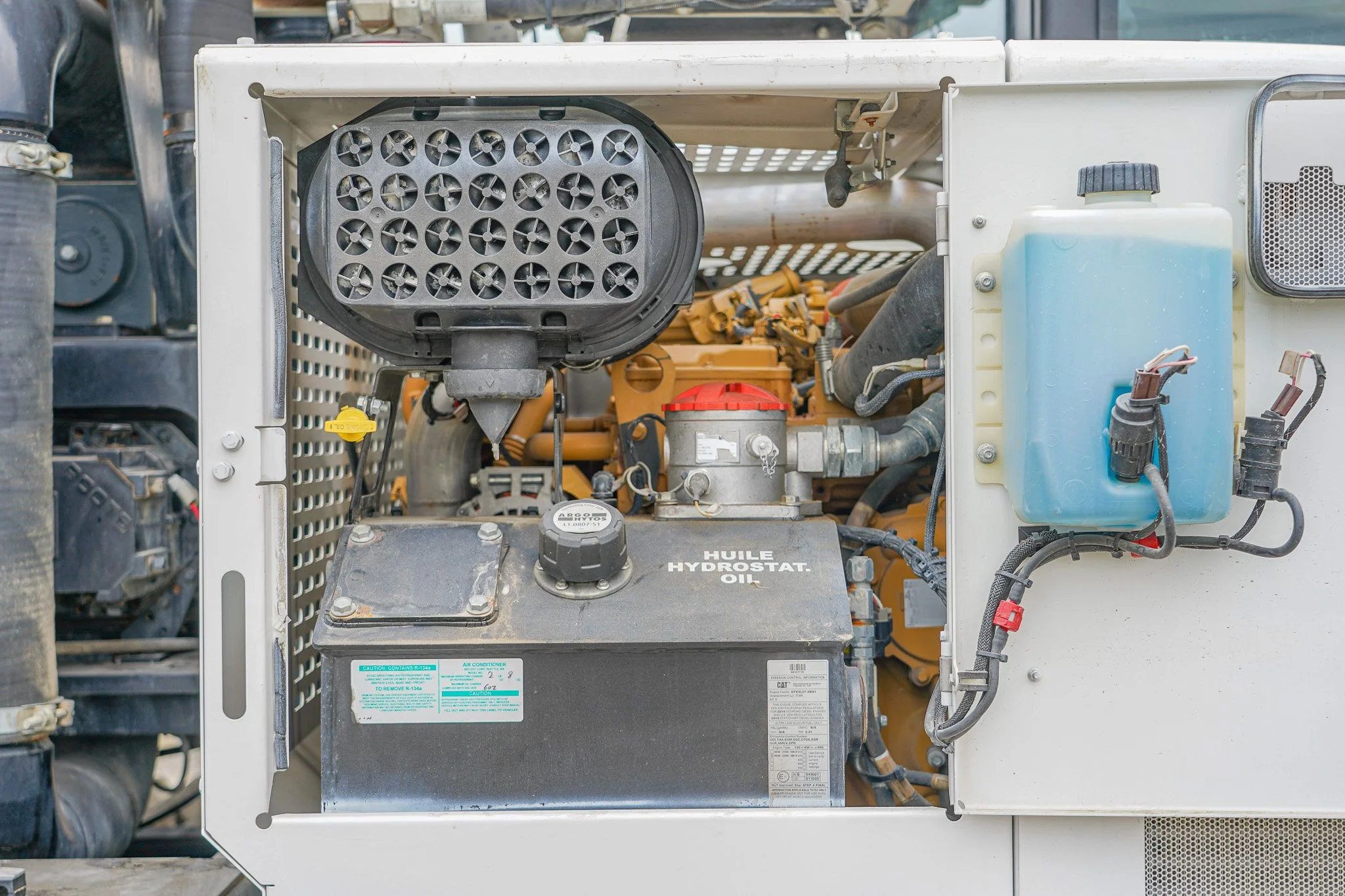

Engine: Caterpillar C7.1 Acert
Horsepower @ 2200 rpm: 225 hp
Torque @ 1400 rpm: 758 lb-ft
Max Speed: 6.2 mph
Fuel Tank Capacity: 65 Gallons
Ground Pressure (Empty): 2.22 psi
Ground Pressure (Loaded): 4.10 psi
Ground Clearance: 17”
Length: 17’9"
Width: 8’
Height: 8’11”
-

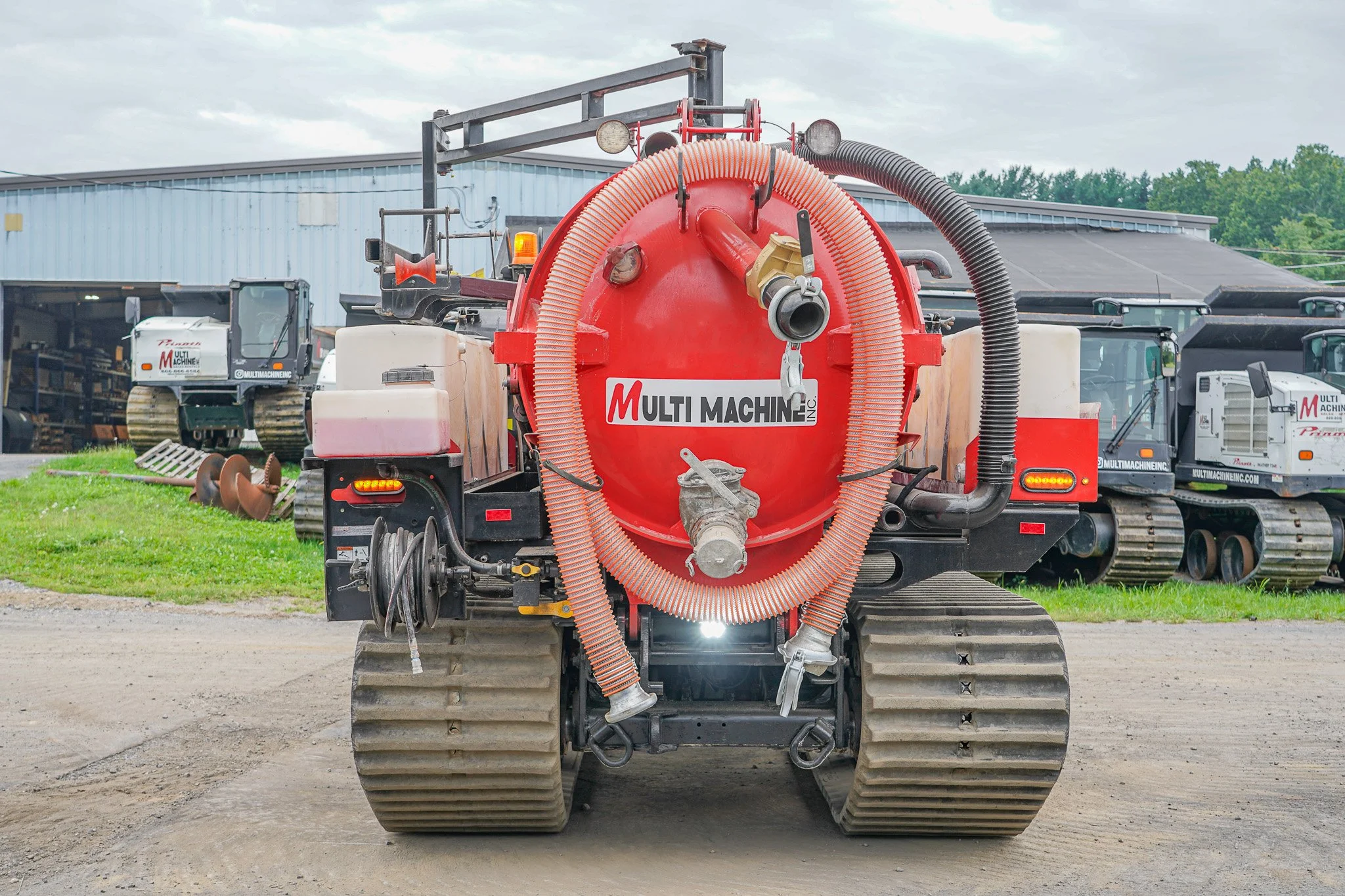

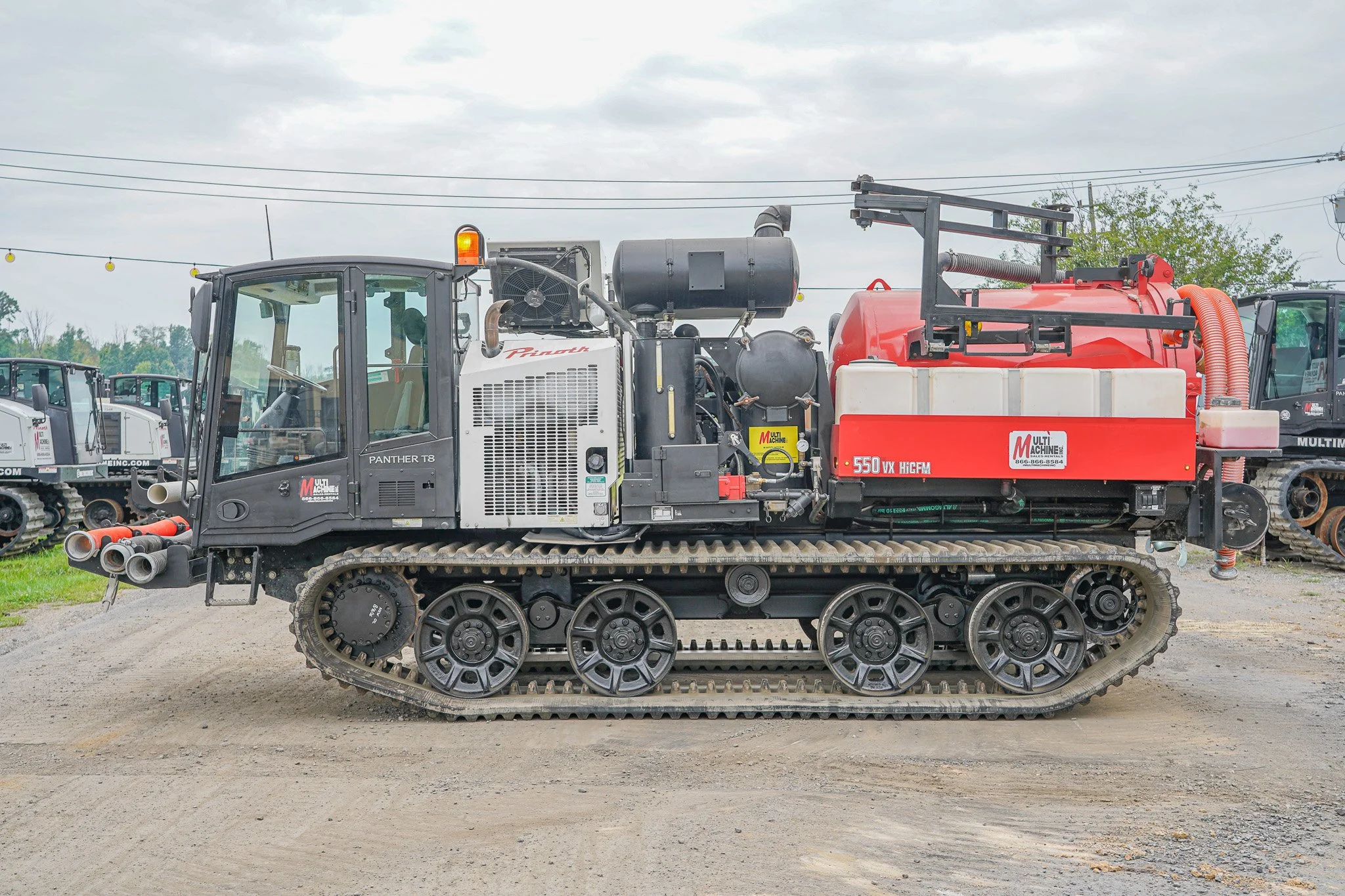

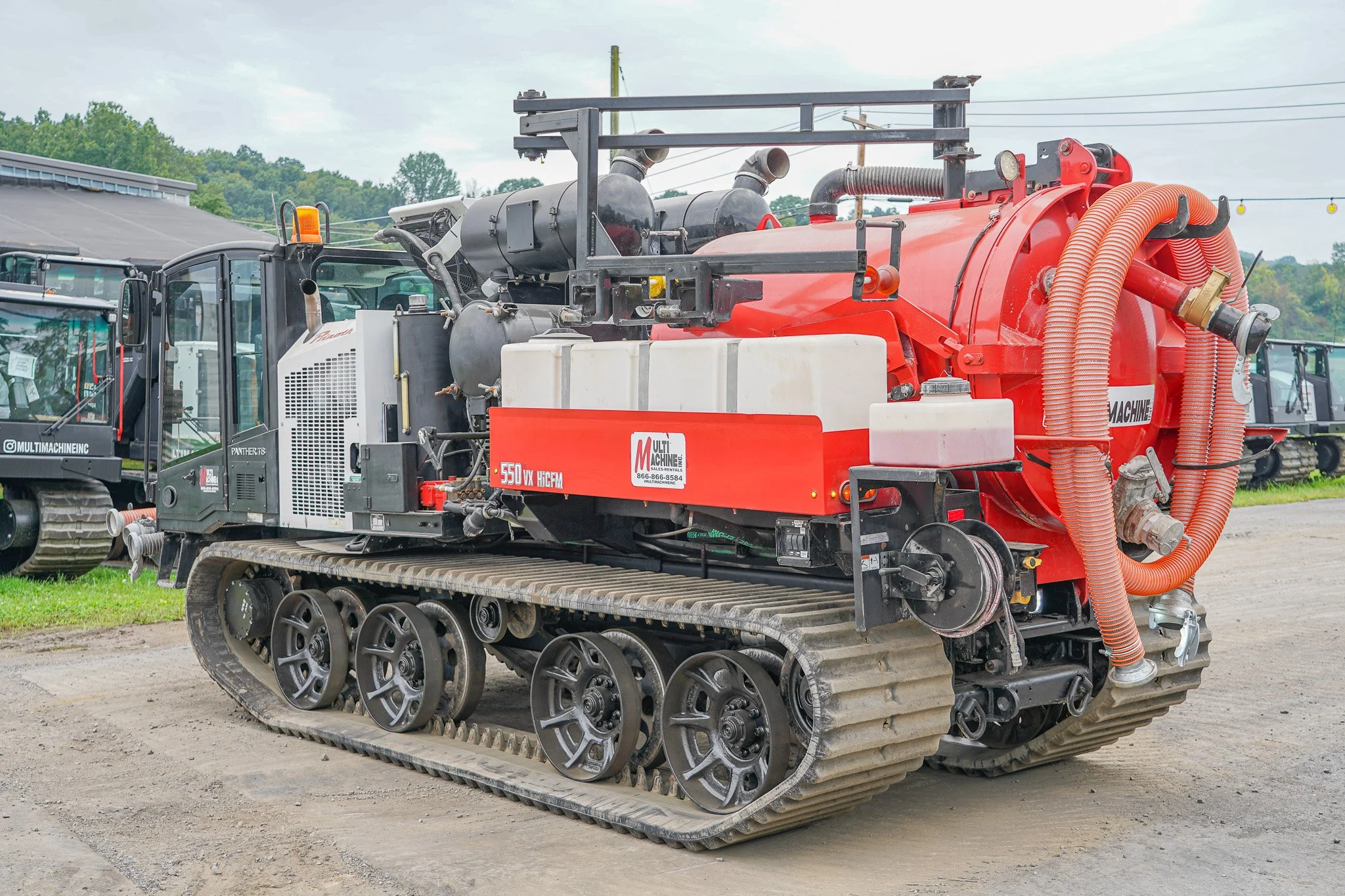

550-gallon spoils tank
1200 CFM 412 RAM positive displacement blower @ 16" hg, driven by hydraulic drive system
Pressurized Tank Offload, Pressure Filter Backflush
Reverse Flow Suction Hose Blow-Out
2x100 gallon poly freshwater tanks
6.0 gpm @ 4000psi water pump
Premium silencer package
Hydraulic tank hoist
Hydraulic full opening rear door standard with power door lock
Sight-glass for level detection
4" suction hose
50' x 3/8" high pressure hose reel with wash gun
5' potholing lance
LED work lights
Manual boom (strong arm) with 10’ reach
Removable Water Heater with Setup - 200,000 BTU - 60°F over ambient @ 6 gpm; fuel burn rate of 1.8 g/hr,
Spoils Tank Double Wash in-tank washing system
