Weight: 23,717lbs.
Payload: 17,637 lbs.

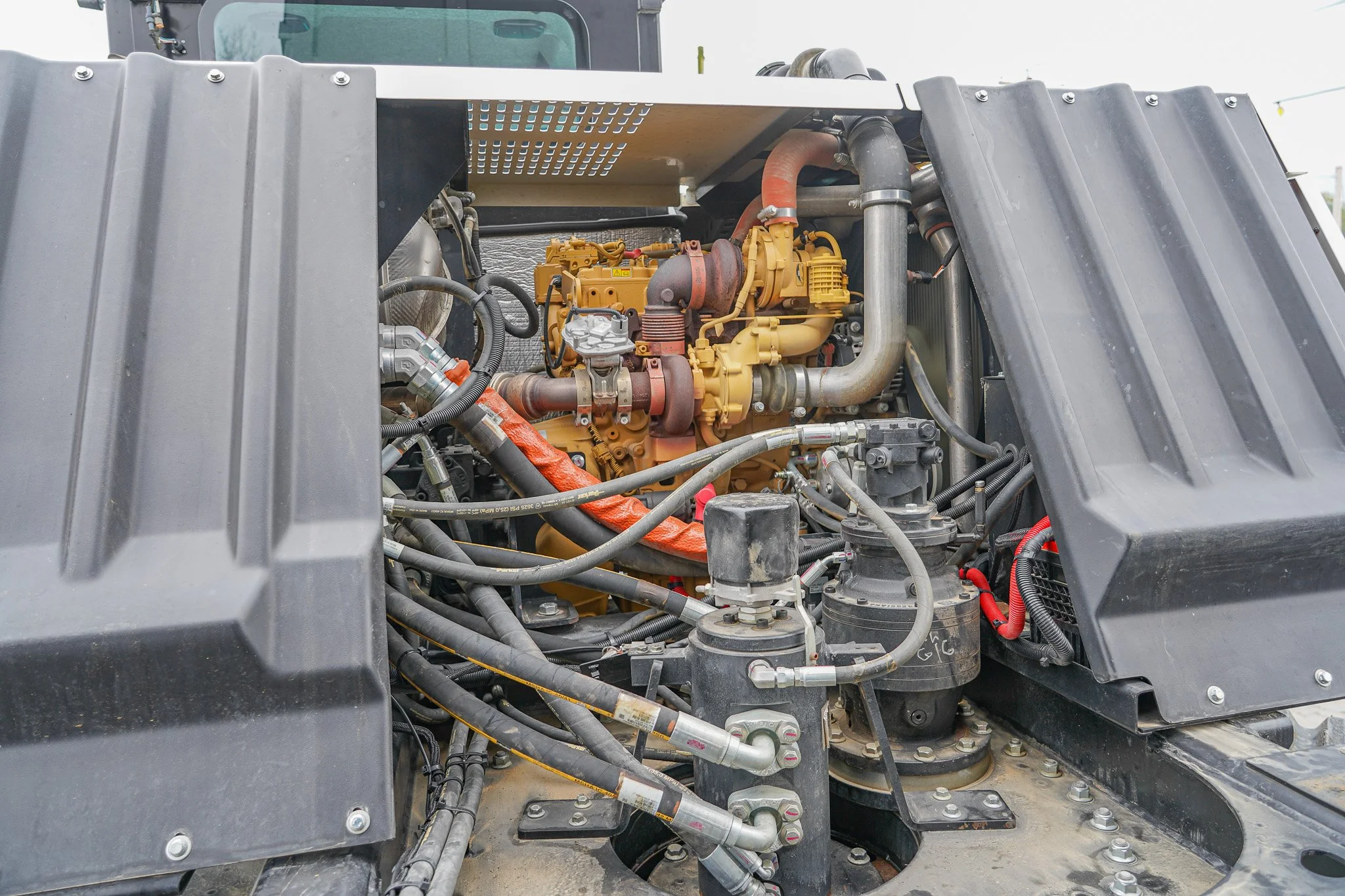

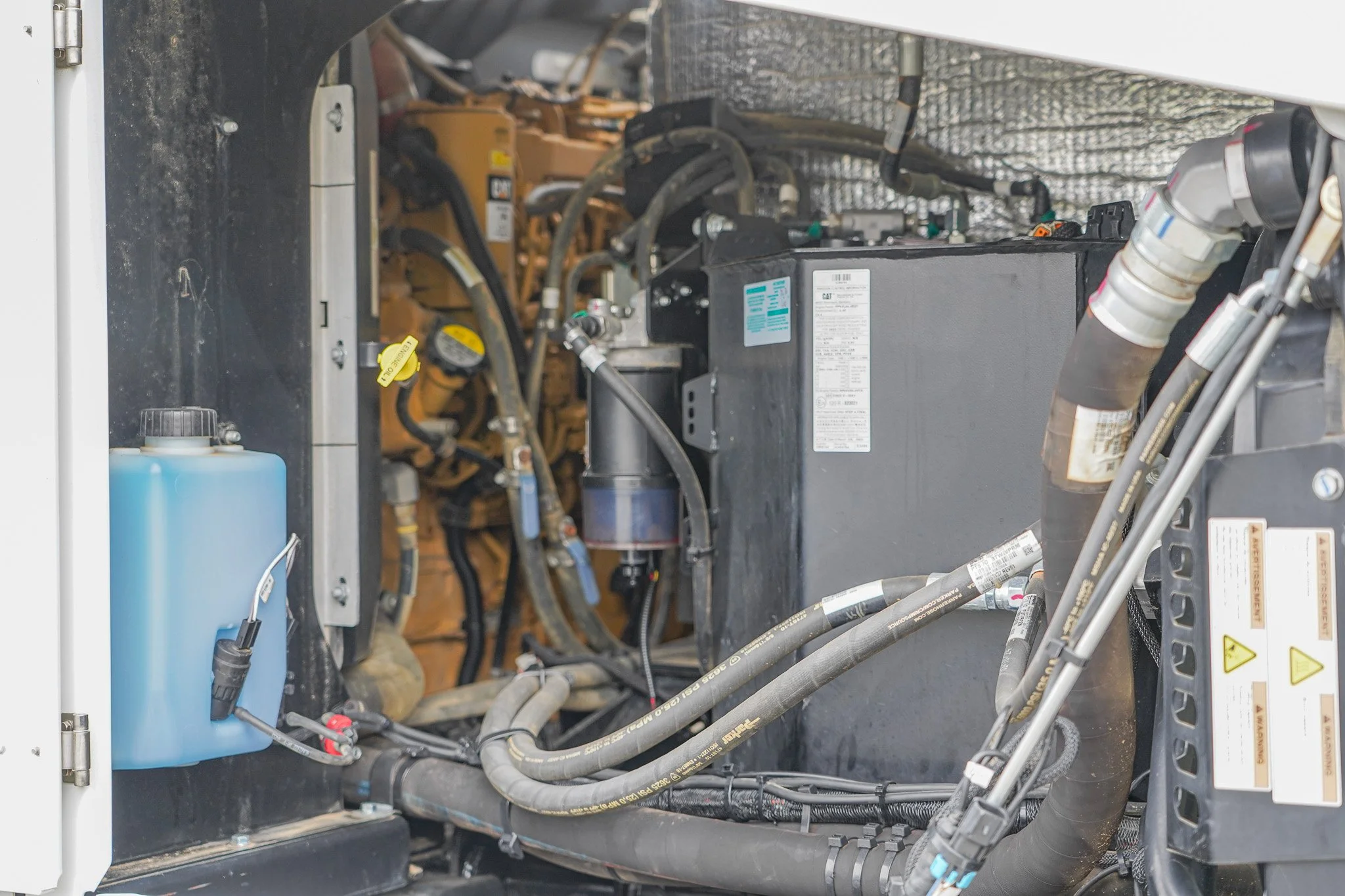

Engine: Caterpillar C4.4
Fuel Tank Capacity: 53 gallons
Horsepower @ 2200 rpm: 201 HP
Torque @ 1400 rpm: 608 lb-ft
Maximum Speed: 8.1 mph
Turning Radius: 0°
Ground Pressure (Empty): 3 PSI
Ground Pressure (Loaded): 5.3 PSI
Length: 17’3”
Width: 8’3”
Height: 9’2”
Track Height: 36”
Ground Clearance: 15.2”
Gradeability (Uphill/Downhill): 33%
Gradeability (Side hill): 33%
-
Capacity: 6.5yd3
Box Width: 98"
Inner Box Width: 91"
Inner Box Height (Sides): 26.5”
Headboard Height: 54”
Dump Box Peak Height: 176.5”
Maximum Dump Angle: 60°
